Summary of Contents for Sound Performance Lab 9737

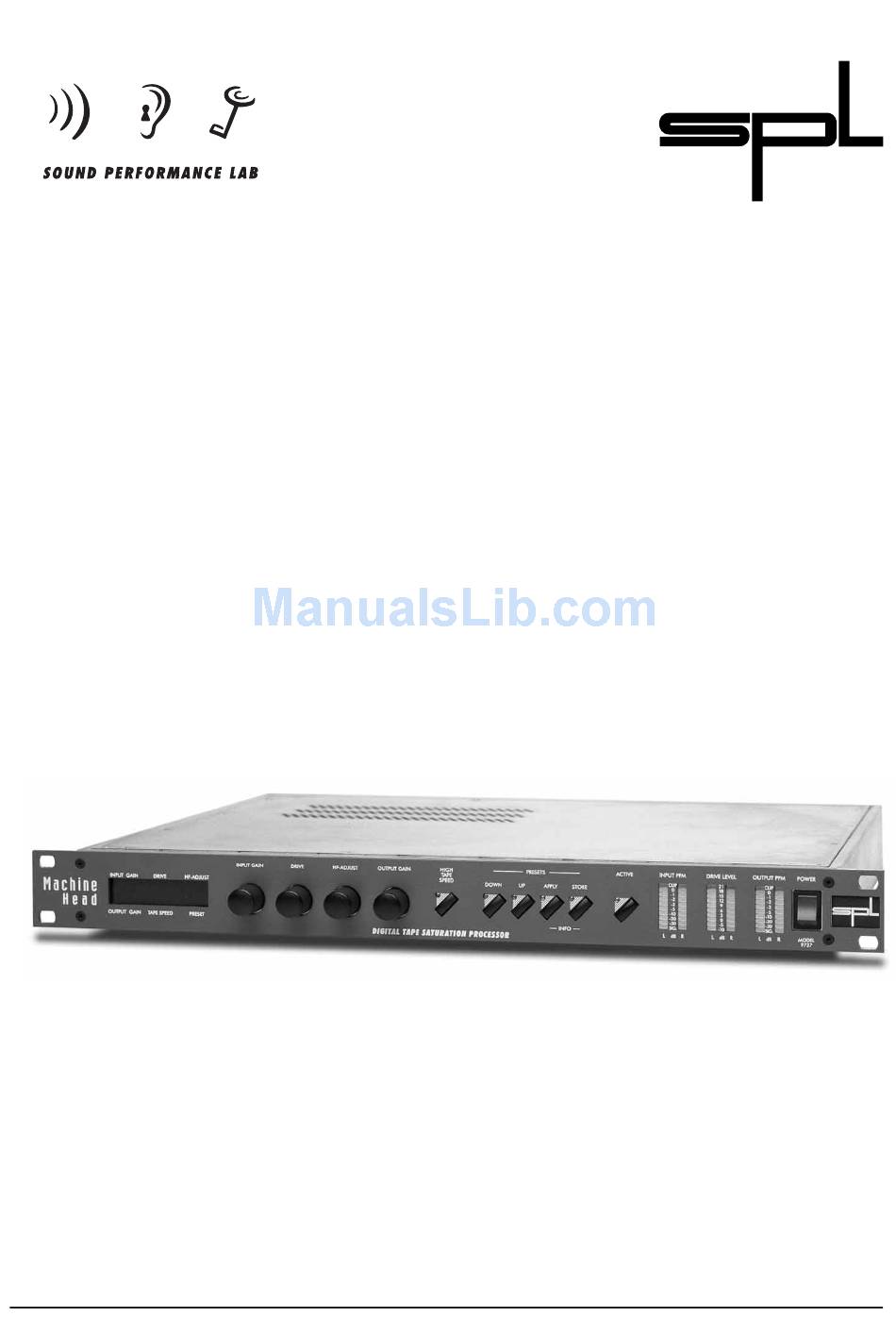

- Page 1 Manual Machine Head Model 9737 Digital Tape Saturation Processor...
- Page 2 SOUND PERFORMANCE LAB ACHINE MODEL 9737 Manual by Hermann Gier Version 1.3 – 1/1999 The information in this document has been carefully verified and is assumed to be correct. However Sound Performance Laboratory (SPL) reserves the right to modify the product described in this manual at any time.
-
Page 3: Table Of Contents
ACHINE We wish you every success with the M Your SOUND PERFORMANCE LAB-Team I would like to start with my thanks to all our staff, who created what is to be described here. Special thanks go to Kai Lukas from Lukas &... -
Page 4: Introduction
Introduction Creating authentic tape saturation effects. The sound becomes warmer and more powerful, elimina- ting the harshness of digital recordings. Precise reproduction of: - tape saturation effect - hysteresis effect - harmonic characteristic - linear and non linear trans- mission characteristic Modified reproduction of: - level behaviour - high frequency damping... -
Page 5: Operation Safety
Indicators and meters: is equipped with PPM displays for input and ACHINE output levels. The first LED of each input and output meter is a signal (S .) LED which illuminates when a compatible digital data stream is present at the inputs. The LEDs are a first indi- cator to check the data stream. -
Page 6: Connections
Connections Before connecting the M ACHINE all connected units. The rear panel provides AES/EBU- and S/P-DIF-inputs and outputs. Any additional channel, status and user-bits are passed through unaltered, and the outputs can be used at the same time if required. The M operates with 24 bit word width. -
Page 7: Quick Start
All controls are in the start-off positions: 0, D 0, HF-A NPUT RIVE 0, T UTPUT PEED Press A . LED illuminates. CTIVE Increase the D -value to saturate the “virtual” tape. RIVE Set D to about 6. If the output level increases, use RIVE the O control to compensate for the increase. -
Page 8: Control Elements
Control Elements Active Relay hard-bypass for AES/EBU input and output Input Gain Drive Setting the recording level of the ‘virtual tape machine’ The A function switches the M CTIVE illuminated LED indicates that the processing has been activated. The software bypass also compensates for the 5ms time delay between processed and unprocessed signal. -
Page 9: Hf-Adjust
The higher the D the more intense gets the saturation of RIVE the tape. While increasing the D increase, too. Compensate for this by reducing the O value (see 5) and monitor the O tively the perceived loudness will increase more dramatic than the actual PPM value! Recommended values are 3 to 8 for the D which corresponds with +10 dB to +15 dB for the actual D... -
Page 10: Output Gain
Output Gain Compensating a level and/or loudness increase due to processing High Tape Speed Gaining a finer high frequency resolution when selecting H PEED LC-display LED chains varies the output level of the digital data stream. UTPUT It is variable between -12 dB and +12 dB in 0.1 dB steps. The adjusted O UTPUT (see 7) and in the O... -
Page 11: Presets
The D metering shows the recording level of the RIVE EVEL “virtual tape machine”. The display range is -10 dB to +21 dB. The D ist adjusted with the D RIVE EVEL The O PPM meters show the peak level after the O UTPUT control (see 5). -
Page 12: Info ( Hardware Dialogue )
Info Depressing S and A TORE second gets you into a hardware dialogue, called I display shows status informations of the digital data stream. With U you will jump from one page to the next or previous. If a selection is provided use A Software version and date Selecting inputs: The M... - Page 13 Press A (if S/P-DIF is detected): PPLY S/P-DIF with wordclock detected S/P-DIF input without wordclock is detected Displaying the detected sample frequency: The S will be detected automatically. AMPLE REQUENCY The display either shows 44,1 kHz, 48 kHz or 32 kHz. Displaying the Audio-Error flag: = no error detected;...
-
Page 14: Midi Channel
Displaying the Emphasis flag: = no emphasis; Y = with emphasis 10. Selecting a serial port: RS-232 interface for update-download from PCs or (press A PPLY RS-422 interface for update-download from MACs. 11. Selecting a MIDI channel: Depress A to step from MIDI PPLY MIDI CHANNEL... -
Page 15: Specifications
Input/Output Sample rate frequency, autom. AES/EBU, twisted pair (1) AES/EBU in- & output impedance 110 Ohms S/P-DIF, co-axial (2) S/P-DIF input impedance Wordclock In/Through, co-axial Wordclock in-/output impedance 75 Ohms MIDI In/Through RS 232 RS 422 (max +/- 14V) Clip display Input transformer (AES/EBU) Output transformer (AES/EBU) Relay Hard Bypass (AES/EBU) -
Page 16: Warranty
Warranty SPL electronics GmbH (hereafter called SPL) products are warranted only in the country where purchased, through the authorized SPL distributor in that country, against defects in material or workmanship. The specific period of this limited warranty shall be that which is described to the original retail purchaser by the authorized SPL dealer or distributor at the time of purchase.
