The USB 1200 is a digital message unit designed for continuous audio playback. Audio is
transferred to the device via a removable USB flash drive. Loading is easily done by "dragging and
dropping" an audio file from a computer to the USB flash drive.
P C
ACKAGE ONTENTS
I
NSTALLATION
1. POSITION UNIT – place the USB 1200 near your phone equipment, within a few feet of an
electrical outlet, and in a convenient place to make adjustments and to plug in the USB stick.
Place the device flat on a shelf or mount it using the keyhole cutouts and screws provided.
2. CONNECT POWER – plug the AC Adapter into a power outlet, then insert the adapter plug
into the 12V DC jack of the unit (NOTE: there is no external On/Off power switch on the
unit). The unit's LED will light to indicate the current status of the unit (see reverse side for
a listing of status colours).
3. TEST AUDIO FROM UNIT – your
memory of the USB 1200. The built-in speaker (located on the side without the LED light)
allows you to verify that sound is playing from the unit. There is a "push on / push off"
button next to the speaker, and the Volume Up / Down buttons adjust the level – each press
of a button will increment the sound up or down (Note: position of the Speaker button will
not affect the sound on hold, however the Volume controls will increase or decrease it).
For Technical Assistance Please Call
O:\Adtel\On Hold Units\Premier USB 1200\Adtel_usb1200_Installation.doc
®
USB 1200 unit, please read these operating instructions carefully.
ADTEL
AUDIO CABLES
ADAPTOR
ADTEL
®
USB 1200

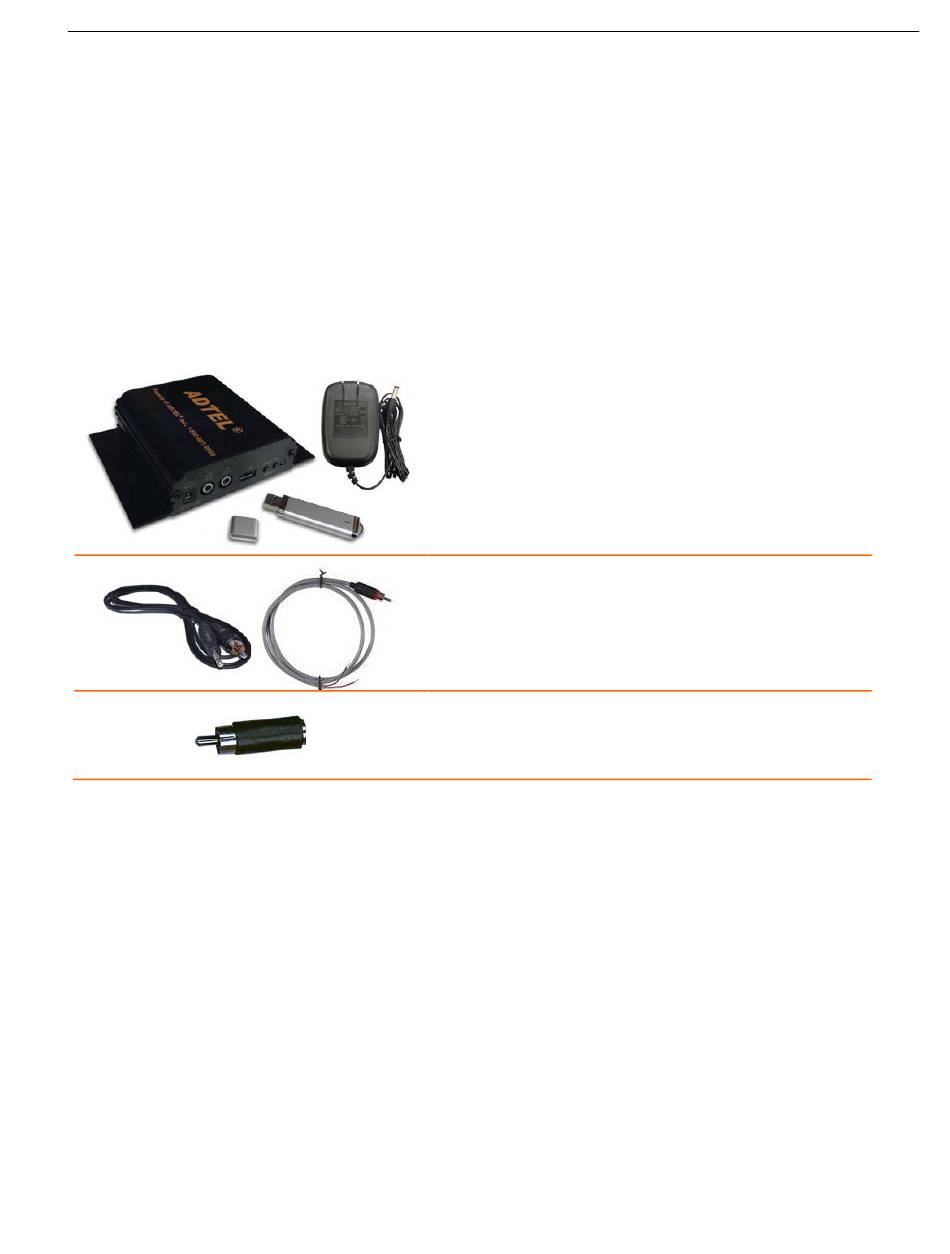

• This is the digital message playback unit
