Summary of Contents for Sound Performance Lab Spectralizer 9631

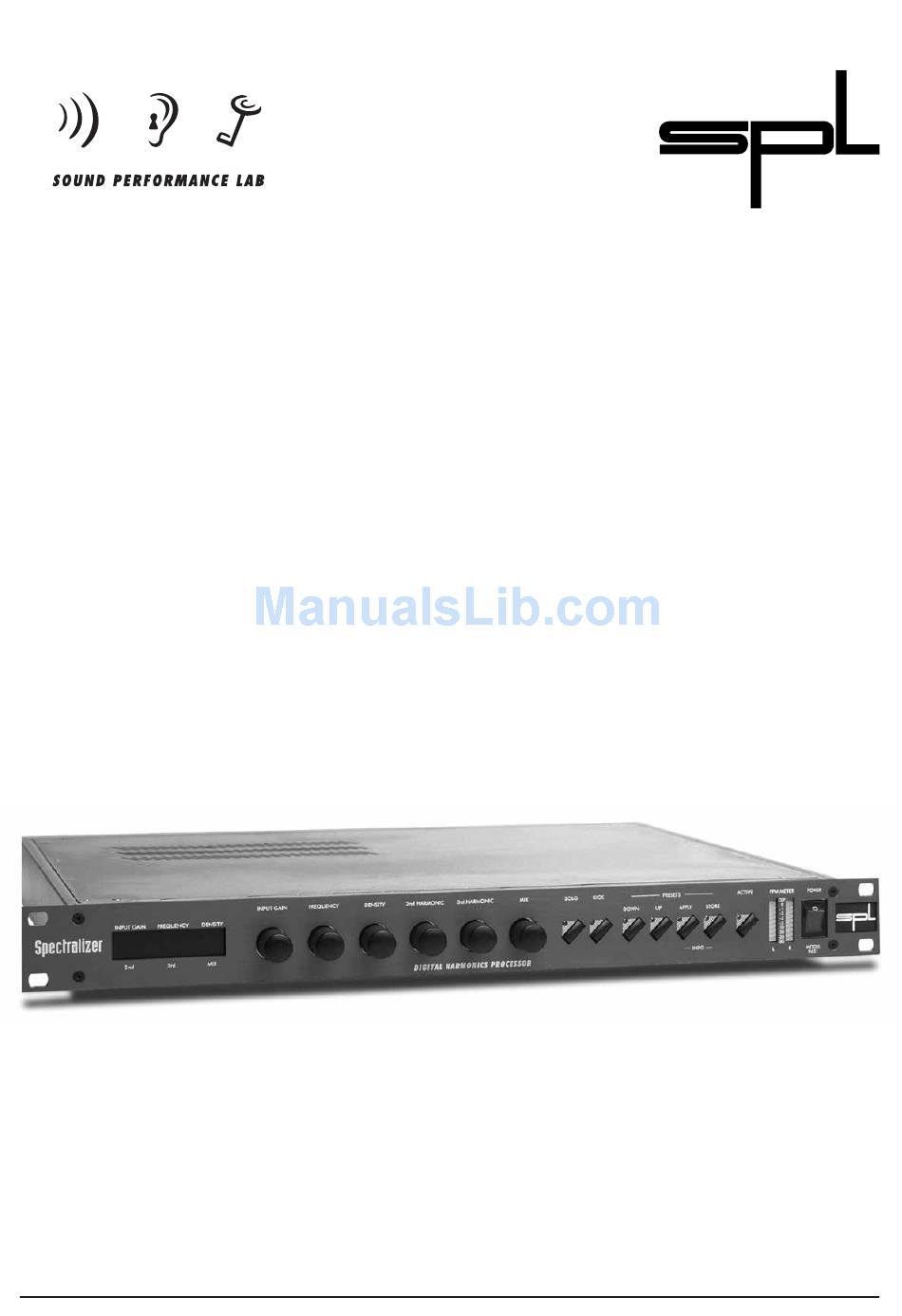

- Page 1 Manual Spectralizer Model 9631 Digital Harmonics Processor...
- Page 2 SOUND PERFORMANCE LAB PECTRALIZER MODEL 9631 Manual by Hermann Gier and Paul White Version 2.2 – 1/1999 The information in this document has been carefully verified and is assumed to be correct. However Sound Performance Laboratory (SPL) reserves the right to modify the product described in this manual at any time.
-
Page 3: Table Of Contents
PECTRALIZER We wish you every success with the S Your SOUND PERFORMANCE LAB-Team I would like to start with my thanks to all our staff, who created what is to be described here. Special thanks go to Jörg Houpert, Klaus-Peter Webersinke and Andreas Skäbe from... -
Page 4: Introduction
Introduction Re-synthesizing second and third harmonics separately Improving clarity, intelligibi- lity and depth without introducing harshness Warm and smooth sounding harmonic re-synthesis Easy and intuitive operation SPL digital audio processors are designed in cooperation with Spectral Design of Bremen, Germany, who are responsible for the DSP programming. -
Page 5: Operation Safety
the small timing glitches that would otherwise occur when switching the process in and out. Up to 99 presets can be stored and changed using a MIDI program change command. isplay: The S is equipped with two PPM-meters PECTRALIZER that feature high resolution in the important region immedia- tely before 0dB. -
Page 6: Connections, Installing Updates
Connections Before connecting the S PECTRALIZER connected units. The rear panel provides AES/EBU- and S/P-DIF-inputs and outputs. Any additional channel, status and user-bits are passed through unaltered, and the outputs can be used at the same time if required. The S operates with 24 bit word width. -
Page 7: Quick Start
Set all controls to the starting positions: 0; F 1k; D NPUT REQUENCY 0%; M ARMONIC Depress A . The status-LED illuminates. CTIVE Set M to 50%. You will notice an increase in high frequencies above 1 kHz (starting position F Set D to 1, to increase the audibility of the ENSITY... -
Page 8: Control Elements
Control Elements Active Relay hard-bypass for AES/EBU input and output Input Gain = 0 for processing NPUT pre-production material with enough headroom Choose negative I NPUT values for full scale recordings to create new headroom to add harmonics Use positive I NPUT values for low level material The A... -
Page 9: Frequency
sets the starting frequency of the highpass filter. REQUENCY Above this frequency second and third harmonics are being generated. The highpass filter can be varied between 1 kHz and 7 kHz in steps of 500 Hz. controls the mix level between the processed and the unprocessed signal. -
Page 10: Rd Harmonic
3rd Harmonic Diagram 3: ARMONIC The illustration shows the FFT spectrums of the odd harmonics for a measuring signal of 3 kHz. Diagram 4: If two frequencies are fed into the Spectralizer (here 3 and 4 kHz) also the diffe- rential tone (here 7 kHz) are being produced All measurements at:... -
Page 11: Density
increases the loudness of the generated harmonics by ENSITY applying different “compression ratios”. The control offers six positions. Adjustment: If D is set to 0, the generated harmonics ENSITY have low intensity even at high values for 2 . The increase in high frequencies is mostly created by ARMONIC the highpass filtering, which applies a shelving equalizing above the adjusted F... -
Page 12: Info (Hardware Dialogue)
Applying a preset: Depress A for1 sec., PPLY LED flashes; use U to select preset no.; depress A again, PPLY LED goes out Operation safety: Presets can not be changed by accident Info If you want to apply various presets depress A second. - Page 13 AES/EBU input without wordclock is detected Press A PPLY S/P-DIF input detected no S/P-DIF input detected Press A (if S/P-DIF is detected): PPLY S/P-DIF with wordclock detected S/P-DIF input without wordclock is detected Displaying the detected sample frequency: The S will be detected automatically.
- Page 14 Displaying the Channel Difference Error flag: = no error detected; Y Setting or erasing the Copy-Prohibit flag: = flag erased or not set; Y Displaying the Original flag: = no Original flag; Y Displaying the Emphasis flag: = no emphasis; Y = with emphasis 10.
-
Page 15: Output Ppm
In order to increase operation safety only send the necessary MIDI data to the S . Unnecessary information might PECTRALIZER lead to system failure. You can use MIDI to create a MIDI fade out, if you are working with a digital console that does not provide master inserts. -
Page 16: Specifications
Specifications Input/Output Sample rate frequency, autom. AES/EBU, twisted pair AES/EBU in- & output impedance S/P-DIF, co-axial S/P-DIF input impedance Wordclock In/Through, co-axial Wordclock in-/output impedance MIDI In/Through RS 232 RS 422 (max +/- 14 V) Clip display Input transformer (AES/EBU) Output transformer (AES/EBU) Relay Hard Bypass (AES/EBU) Measurements... -
Page 17: Warranty
SPL electronics GmbH (hereafter called SPL) products are warranted only in the country where purchased, through the authorized SPL distributor in that country, against defects in material or workmanship. The specific period of this limited warranty shall be that which is described to the original retail purchaser by the authorized SPL dealer or distributor at the time of purchase.
