Summary of Contents for ZIEHL-ABEGG A-G-247NW

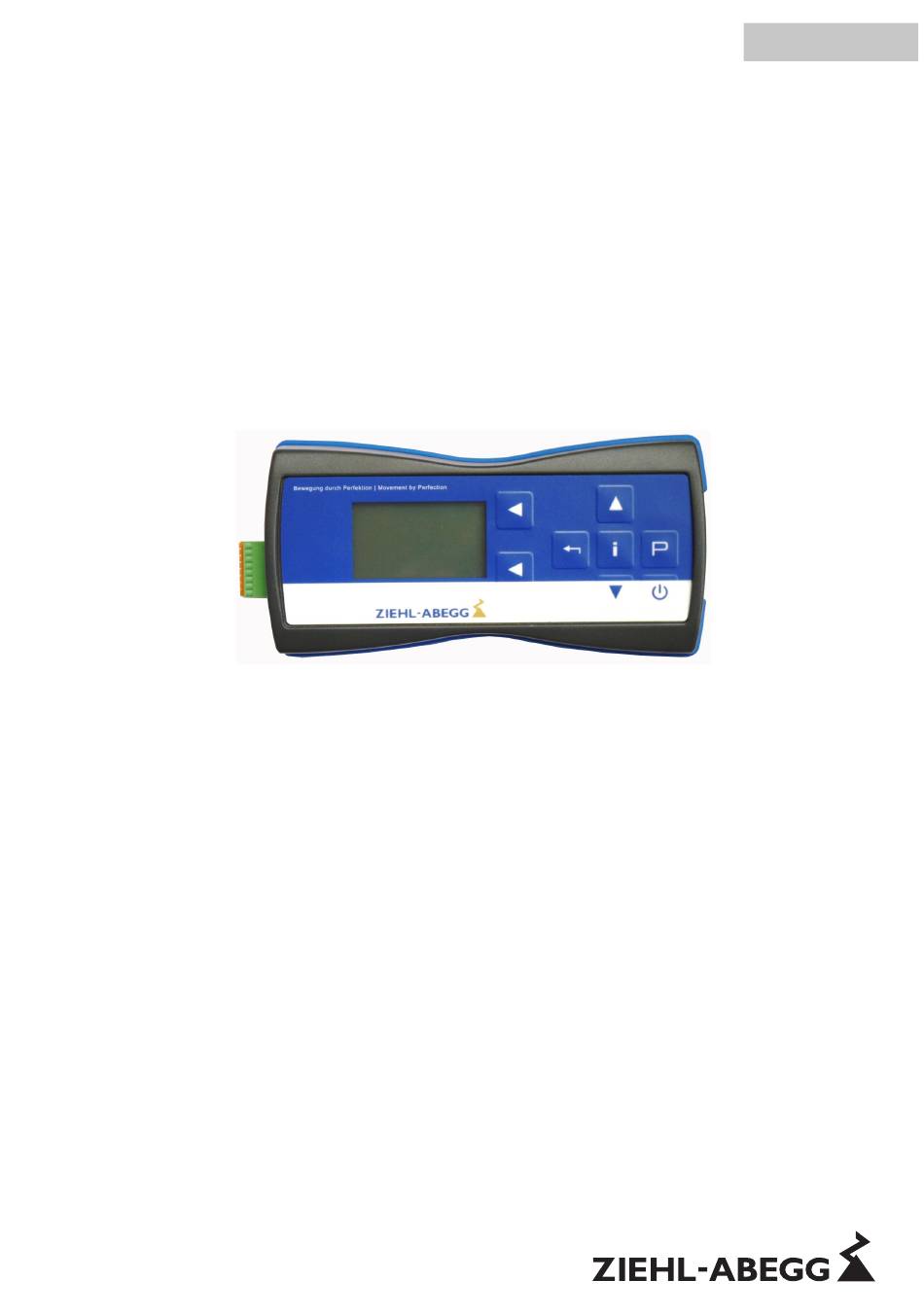

- Page 1 A-G-247NW Part.-No. 380090 Hand held terminal Operating Instructions Software version: from Version 8.05 L-BAL-E184-GB 1309 Index 002 Part.-No. 00163401-GB...
-
Page 2: Table Of Contents
Operating Instructions A-G-247NW Content General notes .......... -
Page 3: General Notes
Operating Instructions A-G-247NW General notes 1 General notes 1.1 Structure of the operating instructions Before installation and start-up, read this manual carefully to ensure correct use! We emphasize that these operating instructions apply to specific units only, and are in no way valid for the complete system! Use these operating instructions to work safely with and on the device. -
Page 4: Safety Instructions
Operating Instructions A-G-247NW Safety instructions Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compro-... -
Page 5: Product Overview
It is possible to save and exchange parameter sets with a PC via the terminal’s USB interface. Information The terminal software is continuously developed and improved. Ziehl-Abegg will provide free firmware upgrades for downloading in future. 3.2 Storage • The device must be stored in its original packaging in a dry and weather-proof room. -
Page 6: Structure Of The Terminal
2 Connection voltage supply / USB interface for filetransfer 3 Connection to the terminal line-commutated. Do not connect the 24 V at the terminal! 4 Terminal connection of compatible Ziehl-Abegg device 5 Rechargeable battery compartment lid 6 Mignon accumulators (NiMh 1.2 V) 4.2 Voltage supply The voltage supply of the terminal is made by the internal accumulators or the plug power supply unit. -
Page 7: Modbus (Rs-485) Interface
Operating Instructions A-G-247NW Structure of the terminal 4.3 MODBUS (RS-485) interface The device comes equipped with a RS-485 interface for networking via MODBUS. Conntection at: “A (D+)”, “B (D-)” and “GND”. Example for devices with MODBUS connection and automatic addressing... - Page 8 Operating Instructions A-G-247NW Structure of the terminal Example for MODBUS connection The data line must be conducted from one device to the next. No other type of wiring is allowed! Always use only two wires of one lead (twisted pair) for the connection.
-
Page 9: Operation
Operating Instructions A-G-247NW Operation 5 Operation 5.1 Display and operating elements of the terminal Hand held terminal type A-G-247NW Mainmenu AM-MODBUS APP`s AM-PREMIUM App’s AXG Mode USB Filetransfer USB COMPORT A-G-247NW Setup 01.03.2013 v_bed_men_a-g-247nw_rd3.vsd 1 Switch on terminal 2 Program key and open menu... -
Page 10: Programming
Programming of devices with integrated universal control module AM-PREMIUM-W (wireless). ▼ ▲ AXG Mode P → ▼ ▲→ P Operation of Ziehl-Abegg devices with RS-485 MODBUS interface without built in Add-on module AM-MODBUS(-W) or AM-PREMIUM(-W)! ▼ ▲ USB Filetransfer USB Filetransfer Filetransfer terminal ↔... -
Page 11: Am-Modbus App's
Operating Instructions A-G-247NW Programming 6.2 AM-MODBUS App's 6.2.1 Configuration Online Configuration online Open menu with the P key and close it again with the top left key ◄. Interface Select type of interface with the ▼ + ▲ keys and confirm with the P key. -
Page 12: Auto Addressing
Operating Instructions A-G-247NW Programming 6.2.2 Auto Addressing Auto Addressing Automatic addressing Open menu with the P key and close it again with the top left key ◄. Start Start automatic addressing with the P key. Please Wait Count: 0 The number of the addressed members is displayed as a result. -
Page 13: Device Check
Operating Instructions A-G-247NW Programming Display as long as no parameter set is saved in the member’s AM- Empty directory! MODBUS(-W) yet. ECBLUEX.CSV Select desired parameter set with the ▼ + ▲ keys and confirm with the P TEST01.CSV key. TEST02.CSV Parameterset File: TEST01.CSV... -
Page 14: Am-Pemium App's
Operating Instructions A-G-247NW Programming Show Details Device Check 1: ECblue 11.05 √ 2: ECblue 9.05 √ 3: ECblue 11.05 √ Every member can be selected and marked with the ▼ + ▲ keys, the exact reason for the error is displayed by “Show Details” after pressing the ◄ key. -
Page 15: Axg Mode
Settings are not possible! Cause: wrong address, no connection via wire and/or radio 6.4 AXG Mode Operation of Ziehl-Abegg devices with RS-485 MODBUS interface without built in Add- on module AM-MODBUS(-W) or AM-PREMIUM(-W)! Alternatively to the use of an external terminal type AXG-1A(E). -
Page 16: Usb Filetransfer, Only Am-Modbus(-W)
Operating Instructions A-G-247NW Programming 6.5 USB Filetransfer, only AM-MODBUS(-W) USB Filetransfer Open menu with P-key. Filetransfer Filetransfer Filetransfer terminal ↔ PC via USB. Connection Memory: 1018 MB • The parameter sets saved in the terminal can be accessed by a PC via the USB interface. - Page 17 Operating Instructions A-G-247NW Programming Example: Parameter set transferred from ECblue 001 to ECblue 002 File Name ECBLUEX.CSV TEST01.CSV TEST02.CSV TEST03.CSV USB Filetransfer -> P -> USB Filetransfer Mainmenu Mini-B (5 pin) AM-MODBUS APP`s AM-PREMIUM App’s AXG Mode USB Filetransfer USB Filetransfer...
-
Page 18: Usb Comport
Operating Instructions A-G-247NW Programming 6.6 USB COMPORT USB COMPORT Open menu with P-key. Interface Select type of interface with the ▼ + ▲ keys and confirm with the P key. RS-485 Interface converter USB ↔ RS-485 Wireless Interface converter USB ↔ wireless USB COMPORT •... -
Page 19: A-G-247 Setup
Operating Instructions A-G-247NW Programming 6.7 A-G-247 Setup A-G-247NW Setup Open menu with the P key and close it again with the top left key ◄. A-G-247NW Setup ↑ P ↓ Start - - - - - PIN 9095 PIN input Restore factory setting = delivery status ▼... -
Page 20: Technical Data
Permissible rel. humidity 85 % no condensation Interference emission according EN 61000-6-3 (domestic household applications)* Interference immunity according 61000-6-2 (industrial applications)* * Only in connection with the plug power pack supplied by Ziehl-Abegg Plug power supply unit Type SYS1421-0605-W2E Part.-No. 00161410... -
Page 21: Manufacturer Reference
Operating Instructions A-G-247NW Technical data 7.1 Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: Ziehl-Abegg AG Heinz-Ziehl-Straße 74653 Künzelsau...
