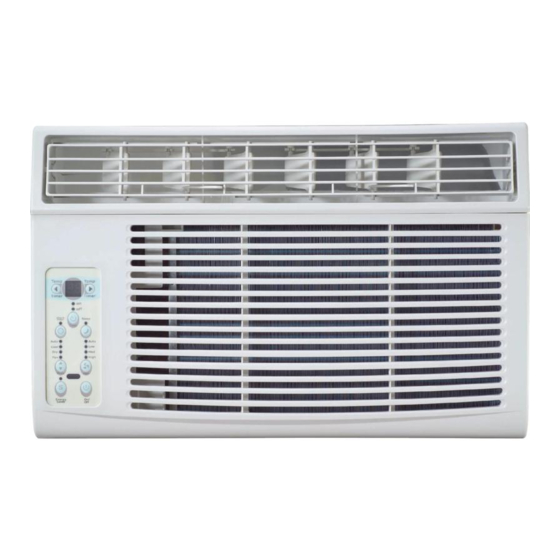

- Page 1 Window Air Conditioner User Manual MODEL • MODÈLE • MODELO CWAM10W6C / CWAM12W6C...
- Page 2 Page 2...
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION Important Safety Instructions ................................4 Battery Information ................................5 Grounding Instructions ..............................6 Power Cord Use ..................................7 Safety Guidelines ....................................8 SET UP & USE Window Requirements ..................................9 Suggested Tools for Installation ..........................9 Prepare the Window ...............................10 Prepare Air Conditioner ............................11-14 Parts &... -
Page 4: Safety Information
SAFETY INFORMATION DANGER WARNING CAUTION DANGER - Immediate hazards which WARNING - Hazards or unsafe CAUTION - Hazards or unsafe WILL result in severe personal injury practices which COULD result in practices which COULD result in or death severe personal injury or death minor personal injury IMPORTANT SAFETY INSTRUCTIONS WARNING... -
Page 5: Battery Information
SAFETY INFORMATION 14. Children should be supervised to ensure that they do not play with the appliance. SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY BATTERY INFORMATION KEEP OUT OF REACH OF CHILDREN. Swallowing may lead to serious injury or death. Severe burns can occur within 2 hours of ingestion. -
Page 6: Grounding Instructions
SAFETY INFORMATION GROUNDING INSTRUCTIONS ELECTRICAL REQUIREMENTS The electrical requirements are a 115 volt 60 Hz, AC only, 15 amp. It is recommended that a separate circuit serving only the product be provided. The product is equipped with a 3-wire cord having a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. -
Page 7: Power Cord Use
SAFETY INFORMATION POWER CORD USE The power supply cord contains a current device that senses damage to the power cord. To test your supply cord follow these steps: 1. Plug in the Air Conditioner. 2. The power supply cord head has two buttons, a TEST button and a RESET button. Press the TEST button and notice a click as the RESET button pops out. -
Page 8: Safety Guidelines
SAFETY INFORMATION SAFETY GUIDELINES To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. ALWAYS DO THIS NEVER DO THIS ENERGY SAVE •... -
Page 9: Set Up & Use
SET UP & USE NOTE: All the illustrations in this manual are for explanation purpose only. The air conditioner you have may be slightly different. WINDOW REQUIREMENTS: Your air conditioner is designed to install in standard double hung windows with opening widths of 23 to 36 inches (584mm to 914mm) . -
Page 10: Prepare The Window
SET UP & USE PREPARE THE WINDOW Lower sash must open sufficiently to allow a clear vertical opening of 13 inches (330mm). Side louvers and the rear of the AC must have clear air space to allow enough airflow through the condenser, for heat removal. The rear of the unit must be outdoors, not inside a building or garage. - Page 11 SET UP & USE C: Align the hole in the top rail with those B. Slide the free end “I“ section of the panel in the top of the unit as shown in Fig. B directly into the cabinet as shown in Fig. 2.
- Page 12 SET UP & USE SECURE THE ACCORDION DRIVE LOCKING SCREWS FOR WOODEN WINDOWS: PANELS Drive 1/ 2 (12.7 mm) locking screws A. Keep a firm grip on the air conditioner, through the frame lock and into the sill carefully place the unit into the (Fig.
- Page 13 SET UP & USE INSTALL R1 HARDWARE INSTALL WEATHER STRIPPING In order to minimize air leaks and ensure (only be applicable to Energy star models) optimal insulation, it is necessary to install In order to minimize air leaks between the included R1 hardware to the side the room air conditioner and the window curtain.
- Page 14 SET UP & USE AIR CONDITIONER FEATURES WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. CAUTION: Please always wait 3 minutes when turning unit off then on again, and when changing from cool to fan and back to cool.
-
Page 15: Parts & Features
SET UP & USE PARTS & FEATURES Horizontal Louvers Remote Control MODE TIMER SPEED ENERGY SAVER SLEEP TOUCH Control Panel MODE TIMER SPEED ENERGY Filter SAVER SLEEP TOUCH Control Panel Lock sign BATTERY INSTRUCTIONS Lock sign Coin Coin Unlock sign Battery cover Lock sign Unlock sign... - Page 16 SET UP & USE REMOTE CONTROL Power Button Mode Button MODE Temp Down - Temp Up + Timer button Speed Button TIMER SPEED Energy Saver ENERGY Sleep Button SAVER One Touch SLEEP TOUCH POWER BUTTON SPEED BUTTON Operation starts when this button is Used to select the desired fan speed.
-
Page 17: Operation Instructions
SET UP & USE TO ADJUST FAN SPEEDS: OPERATING INSTRUCTIONS The unit can be controlled by the unit Press Fan button to select the Fan Speed control alone or with the remote. in four steps-Auto, Low, Med or High. Each time the button is pressed, the fan speed NOTE: The outline of the operation panel mode is shifted. - Page 18 SET UP & USE TO OPERATE ON AUTO remaining until start. FEATURE: • The selected time will register in • When you set the air conditioner in 5 seconds, and the system will AUTO mode, it will automatically automatically revert back to display the select cooling, heating (cooling only previous temperature setting or room models without), or fan only operation...
-
Page 19: Cleaning & Care
CLEANING & CARE CABINET CLEANING DANGER • Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may 1. Be sure to unplug the unit be dusted with an oil-free cloth or washed with before cleaning or servicing. -
Page 20: Troubleshooting & Warranty
TROUBLESHOOTING & WARRANTY BEFORE YOU CALL FOR SERVICE IF THE AIR CONDITIONER FAILS TO OPERATE: A) Check to make sure that the air conditioner is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. B) Check for a blown circuit fuse or a tripped main circuit breaker. -
Page 21: Troubleshooting
TROUBLESHOOTING & WARRANTY TROUBLE ANALYSIS Air conditioner • Wall plug disconnected. Push plug firmly into wall outlet. does not start • House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker. • Plug Current Device Tripped. Press the RESET button. •... -
Page 22: Limited Warranty
TROUBLESHOOTING & WARRANTY LIMITED WARRANTY Any repair, replacement, or warranty service, and all REPAIR OR REPLACEMENT AS PROVIDED UNDER questions about this product should be directed to W THIS WARRANTY IS THE EXCLUSIVE REMEDY OF Appliance Co. at 1 (855) 855-0294 from the USA or THE CUSTOMER;... - Page 23 Page 23...
- Page 24 © 2019 Commercial Cool is a W Appliance Company. All Rights Reserved. 0119...
