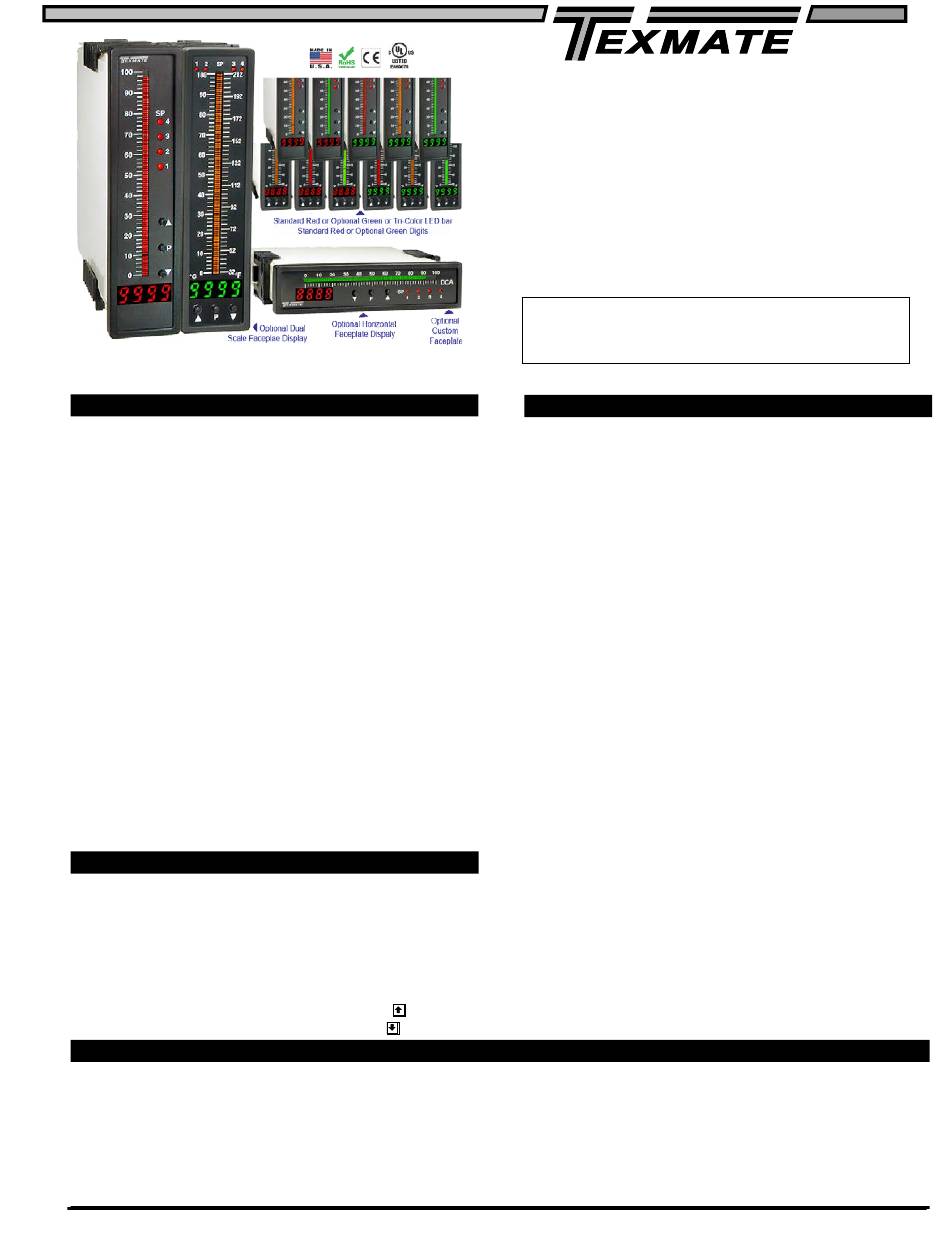

Texmate FL-BDPSF-PROCESS Manual

101 Segment, 4 Digit 0.32" LEDs
in a 9/64 DIN CASE

General Features

• Standard Input Rnage
– 4-20mA
IP01 : 4-20mA Process Loop
IP02 : 4-20mA Process Loop with Excitation 24VDC@100mA
– 0-10V
ID01 : DC-Volts 2/20/200V with 24V DC Exc
ID05 : DC-Volts 2/20/200V with offset and 24V DC Exc
• Optional isolated 16 bit analog output. User or factory scalable to 4
to 20 mA, 0 to 20 mA or 0 to 10 V across any desired digital span
from ± one count to the full scale range of -1999 to 9999.
• A Programmable Tricolor (Red-Green-Orange) or mono color (red or
green), 101 segment high brightness bargraph. Vertical or optional
horizontal format.
• Red 4-digit LED display with a range of -1999 to 9999. Optional
green digital display.
• Front panel LED annunciators provide indication of setpoint status.
• Two 9 Amp Form C, and two 4 Amp Form A relays available
• Provision to connect an external programming lockout switch.
• Provision for external DIM switch to reduce the brightest
display setting by 50%.
• Optional NEMA-4 front cover.
• Automatic intelligent averaging, smooths noisy signals while
providing a fast display response to real level changes.
• UL Listed
Software Features
• The bargraph can display, full
scale, any desired portion of
the digital reading.
• Bargraph center zero function.
• Four programmable setpoints
with adjustable Hysteresis.
• Setpoint 1 has delay-on-make
and delay-on-break plus
a special "pump on pump
off" mode that creates a
Bargraph Center Point Display Mode Selection . . . 6
Bargraph Color Programming Mode . . . . . . . . 9
Case Dimensions . . . . . . . . . . . . . . . . . . . . . . . 7
Component Layout. . . . . . . . . . . . . . . . . . . . . 11
Connector Pinouts . . . . . . . . . . . . . . . . . . . . . 10
Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controls And Indicators . . . . . . . . . . . . . . . . . . 2
Custom Faceplates and Scales . . . . . . . . . . . 19
Decimal Point and Brightness Selection . . . . . 5
FL-BDPSF-PROCESS (d0076) manual
Hysteresis Band between SP1
and SP2.
• Relay activation can be select-
ed to occur above (hi) or below
(Lo) each setpoint.
• Digital display blanking.
• Decimal point setting.
• Four-level brightness control
accessed by the button and
adjusted by the button.
Digital Span Selection for Display . . . . . . . . . . 5
Digital Span Selection for Analog Range Output. . . 6
Functional Diagram . . . . . . . . . . . . . . . . . . . . 10
General Features . . . . . . . . . . . . . . . . . . . . . . . 1
I-Series Input Signal Conditioning Modules . . . 12-15
Input Module Calibration Procedures . . . . . . 17
Input Module Component Glossary. . . . . . . . 16
Ordering Information . . . . . . . . . . . . . . . . . . . 20
Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . 10
FL-BDPSF-PROCESS
Smart 4-20mA/0-10V process Tri or Mono-
color digital bargraph with four fully program-
mable set points and
Isolated 4-20 mA analog output capability
Built-in Programmable Scale Factor
No Input required to calibrate

Specifications

Input Specs: ��������������Series connection to 4-20mA process
A/D Converter: ����������14 bit single slope
Accuracy: ������������������±(0�05% of reading + 2 counts)
Temp. Coeff�: �������������100 ppm/°C (Typical)
Warm up time: � ����������2 minutes
Conversion Rate: � �����10 conversions per second (Typical)
Digital Display: � ���������4 digit 0.31" LED red (std), green (optn)
Bargraph Display: � ����101 segment 4" red vertical (std),
Polarity: ���������������������Assumed positive� Displays – negative
Decimal Selection: � ���Front panel button selectable, X•X•X•X•
Positive Overrange: � �Bargraph and top segments of digital
Negative Overrange: First segment of bargraph and bottom
Relay Output: ������������Two 4 Amp Form A relays and Two
Analog Output: ���������Isolated 16 bit user scalable mA or V
OIC (mA out) � ����������4-20 mA @ 0 to 500٠max loop resistance
OIV (volts out) � ��������� 0-10 V DC @ 500 ٠or higher resistance
Power Supply: � ����������AC/DC Auto sensing wide range supply
PS1 (std) ����������������85-265 VAC / 95-300 VDC, 50-400Hz 4.2W
PS2 �������������������������18-48 VAC / 10-72 VDC, 50-400Hz 4�2W
Operating Temp�: ������0 to 50°C
Storage Temp: � ����������–20°C to 70°C
Relative Humidity: ����95% (non condensing)
Case Dimensions: ����9/64 DIN (Bezel 36Wx144Hmm)
Weight: � ����������������������9�5 oz�, 12 oz when packed
Index
loop or Single ended 0-10V DC
Range -1999 to 9999 counts�
green or tricolor (optn), horizontal (optn)
display flash�
segments of digital display flash�
9 Amp Form C relays�
Depth behind bezel (5�83") 148mm
Plus (0�7") 18mm for connectors
Programming Conventions. . . . . . . . . . . . . . . . 2
Setpoint Setting & Relay Configuration Mode. . . . 8-9
Software Features . . . . . . . . . . . . . . . . . . . . . . 1
Software Logic Tree . . . . . . . . . . . . . . . . . . . . . 3
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . 1
Standard Faceplates and Scales . . . . . . . . . . 18
Two Point Analog Range Setting & Calibration . . . . 7
Two Point Digital Calibration Mode . . . . . . . . . 4
