Neptune Suffolk Instructions & Fitting Manual page 3

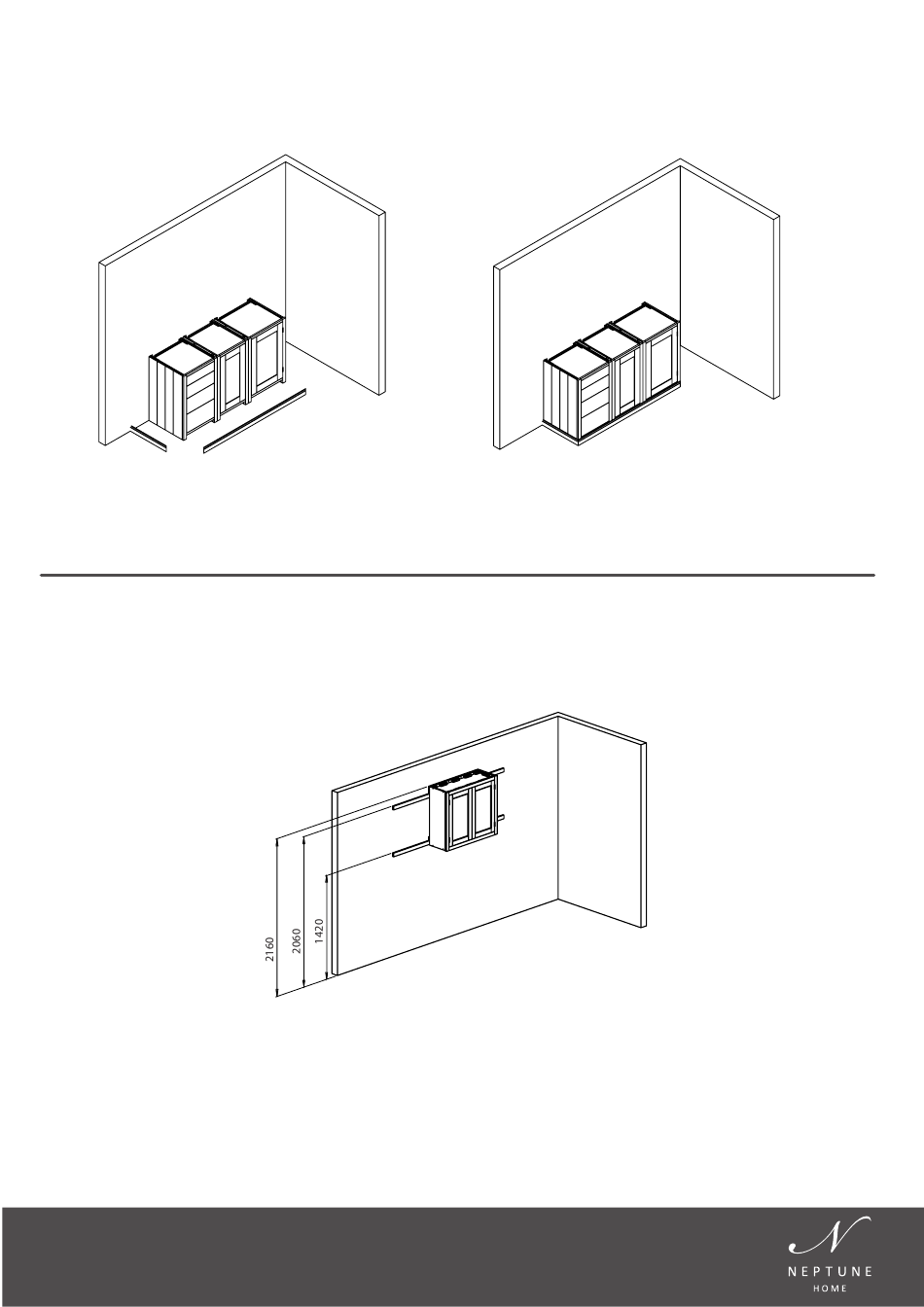

8. Cut Skirting Board to length and attach to the cabinets at regular intervals. For uneven floors it may be necessary to scribe
the skirting board.
Diagram 3.
9. Mitre join skirting boards on corners.
Wall Cabinets
1. Wall cabinets are designed to be screwed directly to the wall using a suitable fixing for your type of wall. To position
the cabinets on the wall a batten should first be fitted to the wall, 2060mm from the floor for the cabinets to hang on.
The final height of the wall cabinets without cornice should be 2160mm if you would like the cornice height to match
full height cabinets.
Diagram 4.
2. A second batten 1420mm from the floor may be used with or instead of the top batten. This is to allow greater fitting
flexibility.
3. Individually hang each cabinet on the batten.
4. Attach the cabinet to the wall by screwing the back panel through the top and bottom recess.
5. Attach neighbouring cabinets to each other using suitable woodscrews through the side panel at the top and bottom
recess.
