Summary of Contents for Classique CL7FLWD1

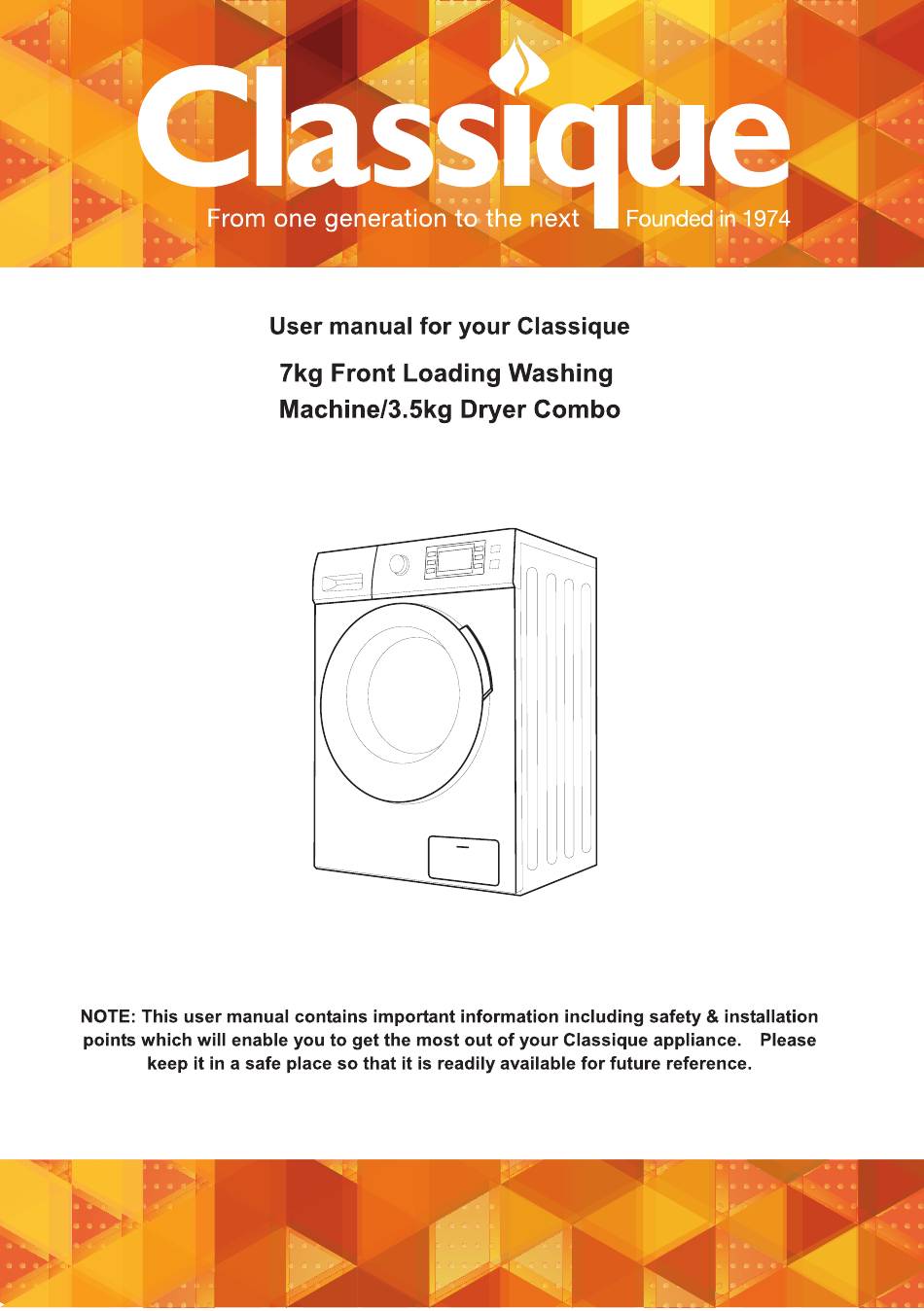

- Page 1 CL7FLWD1...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Safety Instructions ..........Installation Product Description ..........Installation ............Operations Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............Programmes............. Washing Programmes Table ........Maintenances Cleaning And Care ..........Trouble Shooting ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 4 SAFETY INSTRUCTIONS • The new hose supplied with the appliance must be used and any old hoses should be discarded. • Before any maintenance on the device, unplug the appliance from the mains. • Always have the installation procedures carried out by a competent and authorized person.
- Page 5 SAFETY INSTRUCTIONS • Animals and children may climb into the machine. Check the product before every operation. • The glass door may become very hot during some wash cycles and during the drying process. Make sure to keep kids and pets far away from the machine during the operation as well as away from rooms with explosive or caustic gas.
- Page 6 SAFETY INSTRUCTIONS • The appliance should not be installed in bathrooms, very wet rooms or in rooms that may contain explosive or caustic gases. • Check to see if your appliance has a single inlet valve, this can only can be connected to the cold water supply. If the appliance has a double inlet valves then it should be correctly connected to the hot water and cold water supply.
- Page 7 SAFETY INSTRUCTIONS d)This appliance is heavy. Transport with care. e)That you do not place hands into any running water extracting tub. f)Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well.
- Page 8 SAFETY INSTRUCTIONS • Adequate ventilation has to be provided and avoid the back flow of gases into the room from appliances burning other fuels, including open fires. • Do not dry unwashed items in the appliance. • Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers,turpentine,waxes and wax removers should be washed in hot water first with an extra amount of...
- Page 9 SAFETY INSTRUCTIONS Packaging/Old appliance This marking indicates that this product should not be disposed with other household wastes throughout the EU.To prevent possible harm to the environment or human health from uncontrolled waste disposal,recycle it responsibly to promote the sustainable reuse of material resources.To return your used device, please use the collection systems or contact the retailer where the product was purchased.
-
Page 10: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Drain hose support Owner’s manual... -
Page 11: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 12 INSTALLATION Levelling the washer dryer ！ Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 13 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. •...
-
Page 14: Operations
OPERATIONS Quick Start Caution! • Before using, please make sure the appliance is installed properly. • Before washing the clothes for the first time, the appliance should be operated for one cycle with no clothes in it. 1. Before Washing Prewash Main wash Softener... -
Page 15: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 16: Detergent Dispenser
Dam-board Dam-board Liquid detergent Powder detergent Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Model:CL7FLWD1 Programme Programme Cotton ECO Rinse&Spin Sport Wear Dry Only Quick... -
Page 17: Control Panel
OPERATIONS Model:CL7FLWD1 Colours Note! • Programmes with the Speed Wash symbol can be used with the Speed Wash function On/Off Start/Pause Press the button to start or pause the Product is switched on or off. washing cycle. Programmes Option This allows you to select an additional Available according to the laundry type. - Page 18 OPERATIONS Option Pre Wash The Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. Extra Rinse The laundry will undergo extra rinse once after you select it.
- Page 19 OPERATIONS Model:CL7FLWD1 Programme Option Programme Option Extra Extra Soak Anti- Extra Extra Anti- Delay Speed Delay Speed Soak rinse wash rinse wash crease wash crease wash Cotton ECO Rinse&Spin Sport Wear Dry Only Quick Delicate Baby Care Wool Synthetic Colours...
-
Page 20: Other Functions
OPERATIONS Other functions Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec. - Page 21 OPERATIONS Child Lock To avoid accidental operation by children. Press [Function] and [Select] Start Power on 3 sec. till buzzer beep. Caution! • Press the two button 3sec. also to release the function. • The “Child Lock” will lock all buttons except [ On/Off •...
- Page 22 OPERATIONS Note! • Drying hints - Clothes should be dried after spinning - To ensure that the clothes are dried properly separate out the clothes and dry them according to their different types and required drying temperature. - Please note: Synthetic clothing should be set to the correct drying time. - If you wish to iron your clothes after drying, please leave them for a short while to allow them to cool properly.
-
Page 23: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be Synthetic reduced due to its loose string construction and easily forming bubbles. -
Page 24: Washing Programmes Table
OPERATIONS Washing Programmes Table Model:CL7FLWD1 Washing/Drying Load Programme Temp. Default Time(H) Default Speed(rpm) °C (kg) 1400 1400 Default Cotton ECO 4:50 1400 Sportwear 0:45 1200 Quick Cold 0:15 Delicate 0:50 Wool 1:07 Colours Cold 1:10 1000 Jeans 1:45 Spin Only... -
Page 25: Maintenances
MAINTENANCES Cleaning And Care ！ Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 26 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Washing the filter in washing machine: Screw off the inlet pipe from the backside of the machine.
- Page 27 MAINTENANCES Cleaning The Drain Pump Filter ！ Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 28: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... -
Page 29: Technical Specifications
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz MAX.Current 0.05MPa~1MPa Standard Water Pressure Model CL7FLWD1 Washing Capacity 7.0kg Drying Capacity 3.5kg Dimension(W*D*H) 595*470*850 Weight 62kg Rated Power 1900W Drying Power 1300W... -
Page 30: Testing Methods
MAINTENANCES Testing methods Model: CL7FLWD1 ADDITIONAL INFORMATION FOR Standard performance TESTING:(AS/NZS 2040.1:2005+ Amdt1-2007+Amdt2-2009) 1. Water connections:Cold & hot water connection 2. Water supply pressure: 320 kPa 3. Warm wash Program: Cotton Eco 60°C Display: 4:50 Cold wash program: Cotton Cold( no temperature display is cold wash) 4.
