Summary of Contents for ZIEHL-ABEGG S-ET Series

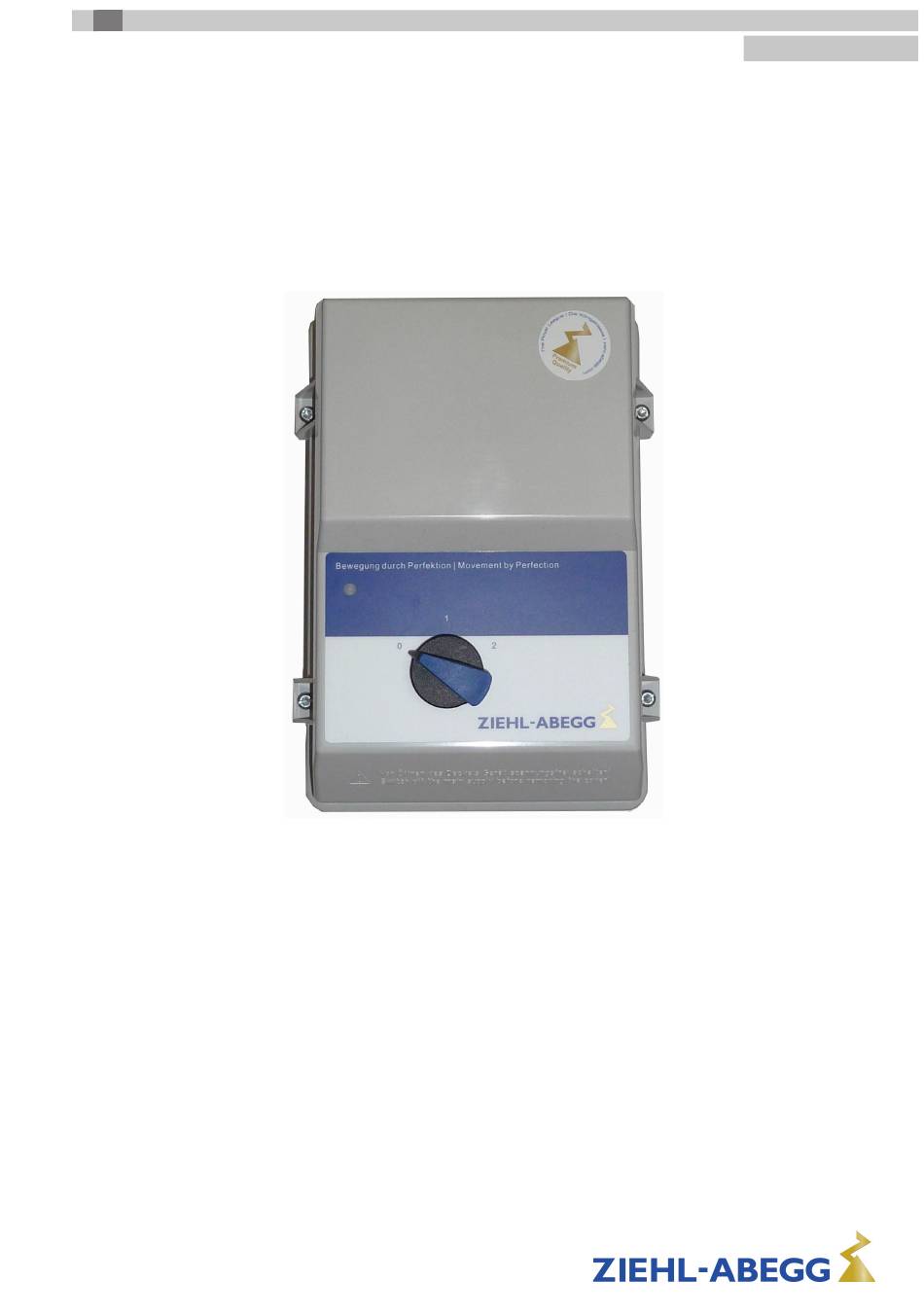

- Page 1 ☞ www.ziehlabegg.com english S-ET... / S-DT... Switching units for 1 ~ and 3 ~ motors Operating Instructions Keep for reference! L-BAL-E058-GB 1931 Index 002 Part.-No.
-
Page 2: Table Of Contents
Operating Instructions S-ET... / S-DT... Content General notes ..........Structure of the operating instructions . -
Page 3: General Notes
Operating Instructions S-ET... / S-DT... General notes 1 General notes Compliance with the following instructions is mandatory to ensure the functionality and safety of the product. If the following instructions given especially but not limited for general safety, transport, storage, mounting, operating conditions, start-up, mainte- nance, repair, cleaning and disposal / recycling are not observed, the product may not operate safely and may cause a hazard to the life and limb of users and third parties. -
Page 4: Explanations Of Symbols
Operating Instructions S-ET... / S-DT... Safety instructions • The equipment is to be used solely for the purposes specified and confirmed in the order. Other uses which do not coincide with, or which exceed those specified will be deemed unauthorised unless contractually agreed. Damages resulting from such unauthorised uses will not be the liability of the manufacturer. -
Page 5: Requirements Placed On The Personnel / Due Diligence
Operating Instructions S-ET... / S-DT... Product overview Information Important additional information and advice for user. 2.2 Requirements placed on the personnel / due diligence Persons entrusted with the planning, installation, commissioning and maintenance and servicing in connection with the frequency inverter must have the corresponding qual- ifications and skills for these jobs. -
Page 6: Disposal / Recycling
Operating Instructions S-ET... / S-DT... Installation 3.5 Disposal / recycling Disposal must be carried out professionally and in an environmentally friendly way in accordance with the respective national legal stipulations. Separate the materials by type and in an environmentally friendly way. "... -
Page 7: Mains Connection
Operating Instructions S-ET... / S-DT... Installation 4.2 Mains connection The mains connection is made for 1 ~ types at the terminals: PE, L1, N, for 3 ~ types at the terminals PE, N, L1, L2, L3 (see connection diagram depending on type). Here, it must be strictly observed that the mains voltage lies within the allowable tolerance specifications (see Technical data and nameplate affixed to the side). -
Page 8: Enclosure
Operating Instructions S-ET... / S-DT... Enclosure Connection example for damper control motors • For motors with 1-wire control (see – damper “OPEN”: if fan is running, “230 V” at terminal L' – damper “CLOSE”: constant voltage at terminal L↓, if fan is not running (also in switch position “0”) •... -
Page 9: Connection Diagram
Operating Instructions S-ET... / S-DT... Enclosure Max. motor Type Part-No. Line voltage Speed Switch over power 3 ~ 400 V (-15 % to +10 %), S-DT2DKT 301033 4.0 kW Dahlander 50/60 Hz 3 ~ 400 V (-15 % to +10 %), 3 (with one S-DT31KT 301038... - Page 10 Operating Instructions S-ET... / S-DT... Enclosure S-DT1KT RT RT max. max. AC 230 V 1 A AC 250 V 2 A Kontaktbelastung Contact rating AC 230 V L2 L3 Netz Line 3 ~ 400 V 50/60 Hz 3 ~ Motor Aus / Ein mit eingebauten Thermostatschaltern Off / On...
- Page 11 Operating Instructions S-ET... / S-DT... Enclosure S-DT2DKT S-DT2GKT RT RT max. max. AC 230 V 1 A AC 250 V 2 A Kontaktbelastung Contact rating AC 230 V L2 L3 Netz Line 3 ~ 400 V 50/60 Hz 3 ~ Motor Aus / Ein mit eingebauten Thermostatschaltern Off / On...
-
Page 12: Dimensions [Mm]
- ventilation technology. phone: +49 (0) 7940 16-800 Email: fan-controls-service@ziehl-abegg.de Our worldwide contacts are available in our subsidiaries for deliveries outside of Ger- many, see www.ziehl-abegg.com. L-BAL-E058-GB 1931 Index 002 Part.-No. 12/12...
