Summary of Contents for Hydra Research Nautilus

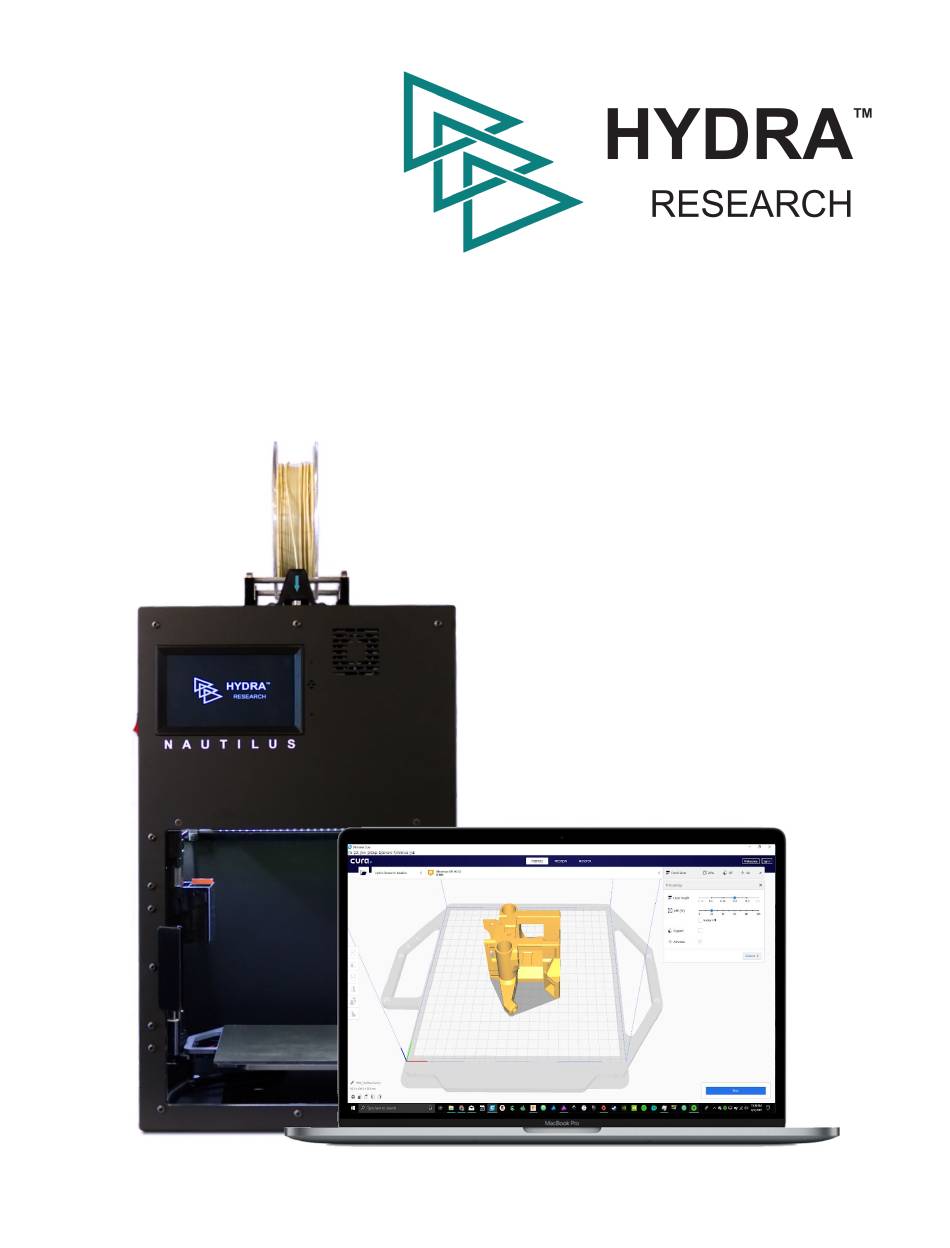

- Page 1 N A U T I L U S User Manual & Handbook Version 1.0 2016-2019 Hydra Research, LLC | Hydra Research™ is a trademark of Hydra Research, LLC Portland, OR, USA | w ww.hydraresearch3d.com | support@hydraresearch3d.com...
-
Page 2: Table Of Contents
2.1.4 Password Protecting your Nautilus 2.1.5 Print Surface and Purge Bucket 2.1.6 Loading/Unloading Material 2.2 Cura Setup 2.2.1 Installing the Hydra Research Nautilus Plugin 2.2.2 Connecting to your Nautilus 3 Printing 3.1 Slicing 3D Files in Ultimaker Cura 3.1.1 Importing a Model and Slicing 3.1.2 Uploading Sliced Files to your Nautilus... - Page 3 3.4 Canceling a Print 3.5 Filament Handling 3.6 Post-Processing 4 Advanced Usage & Techniques 4.1 Printer Calibration 4.1.1 Temperature tuning (PID) 4.1.2 Z-Offset Calibration 4.1.3 Automatic Bed Leveling 4.2 Filament Runout 4.3 Power Loss Recovery 5 Materials 5.1 PLA - Easy to Print 5.2 Co-polyester - Tough and Chemically resistant 5.3 ABS/ASA - Durable and Tough 5.4 Nylon - Abrasion Resistant and Durable...
- Page 4 The Nautilus designs and software are licensed under LGPL-3.0 ( h ttps://www.gnu.org/licenses/lgpl-3.0.en.html by Hydra Research, LLC. At Hydra Research we believe progress is a collaborative effort! We have released source files for the Nautilus 3D printer on our GitHub h ttps://github.com/hydraResearchLLC/...
-
Page 5: Safety Information
Pinch Hazard The Nautilus uses motorized, moving parts that can get caught on body parts, hair, jewelry or clothing. Do not reach or put anything inside the printer during operation to avoid possible injury. -
Page 6: Product Details
2. Main USB Port: T his USB-B port is used for tethered printing. If you are unable to send files to the Nautilus over a wireless network, you can connect the Nautilus to a computer via this port and stream the print job from Cura to your printer. - Page 7 2. Power Inlet: T his is where the power cord is plugged into the Nautilus. Make sure to use a cord rated for 10A at 110W or better. The Nautilus can be configured for 220W input rather easily, if you are interested contact support.
-
Page 8: Interior
1.1.2 Interior 1. Tool Head: T his is the part of the printer responsible for heating and extruding the plastic filament. It includes the extruder, Tool Cartridge, part cooling, and bed probing systems. 2. Tool Cartridge: This part is removable by the white tab sticking out on the right side of the tool head. -
Page 9: Touch Screen Ui Overview
1.2 Touch Screen UI Overview The Nautilus uses a 7’’ touch screen for user control of the printer. Here you can start print jobs, monitor the printer’s activity, load/unload material, and much more. Tabs The main interface is organized into four tabs that are always displayed at the bottom of the screen (highlighted in green). -
Page 10: Control Tab
1.2.1 Control Tab This Tab is opened upon startup of the Nautilus. This and the Print Tab will be where you spend most of your time. 1. Printer Status: D isplays the current printer status: Standby, Idle, or Printing. - Page 11 You do not need to pay attention to this. It will display P0 when the probe is not triggered. 19. Automatic Bed Level Compensation: M anually initiate the automatic bed level compensation. This is only needed for diagnostic/debugging purposes; the Nautilus initiates auto bed level compensation at the beginning of every print job by default.
- Page 12 Macro Menu Structure...
- Page 13 Power loss recovery is not guaranteed to work every time , and you should a lways visually inspect the Nautilus and the part to make sure the part is still stuck to the Print Surface and everything looks in order...
-
Page 14: Print Tab
4. Heatbed ON/OFF: T urns the bed heater ON and OFF. 5. Hotend ON/OFF: T urns the hotend heater ON and OFF. 6. Current Heater Temperatures: The current temperature of the heaters on the Nautilus display in Celcius. - Page 15 12. Pause/Resume/Cancel: This button will pause the current Job. When a job is paused it will be replaced with a resume button and the babystepping button will be replaced with a cancel button. 13. Babystepping: T his allows for micro adjustments to the Z-offset. Used for dialing in the first layer offset. DO NOT use after the first layer has been completed.
-
Page 16: Console Tab
1.2.3 Console Tab 1. Keyboard: This opens a keyboard for manual entry of G-code commands. 2. Message Time: The time elapsed since the message was initially triggered. 3. Message: Useful information about the status of the printer, calibration results, and error messages. -
Page 17: Setup Tab
1.2.4 Setup Tab The Setup Tab is home to the settings and calibration for the touch display on the Nautilus. Here you will be able to adjust your brightness, volume, language, theme, and more. 1. Touch Screen Firmware Version: D isplays the version of the PanelDue open source firmware, which the Nautilus touch display is based on. -
Page 18: Duet Web Control
1. G-code entry box: A llows you to quickly send G-code commands to your Nautilus. 2. Upload & Start: U pload sliced prints to your Nautilus. It is recommended to start prints directly from the printer to make sure everything is properly set up for printing. -
Page 19: Accessories
11. Settings: T his category contains a settings interface for Duet Web Control as well as your Nautilus. a. General: Duet Web Control settings. You should not have to change most of these settings except for theme control and adding a wireless webcam. - Page 20 W2 coating for low friction and better flow properties. These nozzles are suitable f or all FFF materials supported on the Nautilus . They can withstand repeated use of abrasive materials like carbon or glass fiber reinforced materials.
-
Page 21: Print Surfaces
The BuildTak PEI Print Surface is a great all around print surface offering good part adhesion for many commonly used materials. The part of the print in contact with BuildTak PEI will have a smooth, glossy surface finish. This is the stock print surface included with the Nautilus. BuildTak Original - Increased adhesion for some materials The BuildTak Original Print Surface provides extra bed adhesion for materials like ABS and Co-polyesters (PETG, CPE, etc). -
Page 22: Tool Kit
1.4.3 Tool Kit Every Nautilus ships with a tool kit that contains some of the key tools and replacement parts you will need to maintain your Nautilus and post-process your 3D printed parts. This tool kit is designed to get you started, you will probably find that there are additional tools you want to use. -
Page 23: Filter
A filter designed specifically for the Nautilus is in the works, but in the meantime you may want to implement your own solution. Under the black cover on the back of the Nautilus are two 80mm fan ports. -
Page 24: Product Support
The Nautilus utilizes the powerful Duet platform for the mainboard, touch panel, and web control. The Duet is a modular and e xtremely adaptable, open source 3D printer and CNC control system . The Nautilus is not the only printer that uses this system; the Duet community is quite large and a great secondary source of information and support. -
Page 25: Getting Started
2 Getting Started 2.1 Getting Ready to Print Ensure that the Nautilus is plugged in with the supplied power cable. The power plug on the Nautilus is located on the back of the printer at the bottom. Maker sure ALL packaging detailed in the unpacking guide is removed and the printer has been placed on a clear, stable surface in a well-ventilated area before powering on the printer using the red switch located on the left side of the Nautilus. -
Page 26: Connecting To A Network
ⓘ The WiFi module in the Nautilus is not compatible with 5GHz connections. However, if your network has both 5GHz and 2.4GHz bands, a computer on the 5GHz band can print to a Nautilus on 2.4GHz. Adding a Network 1. Power on the Nautilus in range of your WiFi network 2. -
Page 27: Password Protecting Your Nautilus
2.1.4 Password Protecting your Nautilus Anyone on the same WiFi network will be able to access and control your Nautilus if you do not password protect ● With your Nautilus powered on, navigate to the Console tab and click the keyboard icon in the top right. -
Page 28: Loading/Unloading Material
Purge Bucket The purge bucket is an essential part of the Nautilus, and it must be correctly seated in its mounting bracket at the left front corner of the build area. The p urge bucket is used to collect waste material from purging the nozzle which is done at the beginning of every print, resuming a print if a print is paused, and during material load and unload. -
Page 29: Cura Setup
1. Open Ultimaker Cura ⓘ If you have not opened Cura before, you will have to add a printer because the Nautilus will not be listed until the plugin is installed. Any printer will do. 2. Open the Marketplace using the button in the upper right-hand corner... - Page 30 Hydra Research Nautilus Plugin→Nautilus Connections 9. In the window that opens you can give your printer a name and enter your Nautilus’ IP address which is displayed on power up and can be found in the console tab on the Nautilus display.
-
Page 31: Connecting To Your Nautilus
Duet Web Control You can also connect to your printer from any internet connected device on the same network as the Nautilus by typing your Nautilus’ IP address into your browser’s search bar. Your Nautilus’ IP address is displayed on power-up and can be found in the console tab on the Nautilus display or under Networking in the Macros menu. -
Page 32: Printing
Uploading over WiFi Once you have sliced your 3D model, you're ready to upload it to your Nautilus. The primary way to do this is to use the Upload button that replaces the Prepare button once the slicing has finished. If you have multiple Nautili connected you can select the one you wish to upload to by clicking the arrow located on the right side of the upload button. -
Page 33: Starting A Print
3.2 Starting a Print There are two ways to start a print. We recommend always starting a print from the Control tab on the Nautilus as it is always a good idea to visually check that everything is set up properly on your Nautilus before initiating a print. -
Page 34: Removing A Print
Print Surface and build plate magnets. ● The Nautilus will play a notification beep as well as presenting another popup when the part removal temperature is reached. You can now remove the magnetic Print Surface. -
Page 35: Canceling A Print
Whenever handling the free end of a spool of filament a lways make sure the free end is in your hand or secured in the spool/ printer . All spools supplied by Hydra Research have holes in the rim for securing filament when not in use. -
Page 36: Post-Processing
3.6 Post-Processing After printing, many parts require post-processing to remove printed aids like brims and supports. Parts can also be post-processed to change the aesthetic finish of the part, this is material specific and is covered briefly in section 5. Brim Removal The deburring tool and hobby knife are the two best tools for removing brims from your parts. -
Page 37: Advanced Usage & Techniques
4.1.1 Temperature tuning (PID) The heaters on your Nautilus have been calibrated in the factory for typical usage environments of about 25°C (77°F). However, if you are printing in a very hot or very cold environment you may notice larger than normal fluctuations in the Nautilus’... -
Page 38: Automatic Bed Leveling
Your Z-offset is now set for this tool. The Nautilus will look up this value at the beginning of every print using this Tool Cartridge. You should not have to repeat the process for this Tool Cartridge. That said, you may find you need to adjust it slightly from time to time. -
Page 39: Power Loss Recovery
4.3 Power Loss Recovery Power loss recovery provides the opportunity to r esume a job in the event of a power loss to your Nautilus . This feature is not guaranteed to salvage the job every time, but in many cases you will be able to resume printing. -
Page 40: Materials
PLA is a very hard material which makes parts quite b rittle . When PLA parts break they tend to s hatter . PLA will also b ecome very brittle if left in the PTFE feeder tubes commonly used on 3D printers including the Nautilus. -
Page 41: Co-Polyester - Tough And Chemically Resistant
80 - 110°C depending on the material blend. Co-polyesters also exhibit very low warping and are an excellent choice for l arge parts . The majority of the parts on your Nautilus are printed with Co-polyesters. Co-polyesters can be a lmost as easy to print as PLA but offer s uperior mechanical properties . Co-polyesters tend to be more ... -
Page 42: Abs/Asa - Durable And Tough
3D printing. While they can be trickier than other plastics to print, you have chosen the Nautilus which is specifically designed to handle plastics like this. So good job :) Even so, you may encounter challenges printing large parts due to warping... -
Page 43: Nylon - Abrasion Resistant And Durable
Nylon can be a d ifficult material to print with, but the d urability and c hemical resistance of the resulting parts is worth it. We recommend using nylons specifically supported on the Nautilus for easily repeatable results. -
Page 44: Vinyl/Pvc - Flame Retardant, Tough, And Chemically Resistant
Safety Recommendations ● Ventilate the room during printing ● Use a filter system on the Nautilus (discussed more in section 1.4.4) ● Pregnant women should not spend extended periods of time near machines processing Vinyl/PVC ● DO NOT exceed 230°C for the nozzle temperature... -
Page 45: Flexible - Wear And Abrasion Resistant
5.6 Flexible - W ear and abrasion resistant Best used for: P rototypes, usable parts, end-use parts, parts that require flexibility or vibration dampening, etc. PROS CONS ● Elastic and flexible ● Must be printed slowly ● Little to no warping/shrinkage ●... -
Page 46: Composites - Combination Materials That Exhibit Unique Properties
5.7 Composites - C ombination materials that exhibit unique properties PROS CONS ● Can provide unique visual properties ● Some composites contain abrasive fibers ● Layer heights and nozzle diameter options are ● Can provide unique mechanical properties sometimes limited This category ... -
Page 47: Maintenance And Troubleshooting
3. In the file browser select the Nautilus F irmware z ip file you downloaded. 4. The new firmware and configuration files will now upload to your Nautilus. DO NOT unplug the Nautilus or disconnect your computer or Nautilus from the network until this process is complete. - Page 48 2. With the Nautilus Powered O N , use a paperclip to press and hold the erase button for a few seconds located a bove the speaker grill, to the right of the screen, on the front of your Nautilus.
-
Page 49: Updating And Troubleshooting Cura
Ultimaker also makes beta releases of Cura publicly available on their website. It is strongly advised to a void using beta releases of Cura with your Nautilus , it is possible that some features or the whole plugin may not yet be functional. -
Page 50: General Maintenance
Uninstalling configuration/Nautilus plugin If you wish to stop using your Nautilus with Cura and would like to uninstall the configuration and plugin, Cura may report an error if you do not uninstall properly. 1. In Cura, click on the currently active printer name in the top left corner and then Manage Printers 2. -
Page 51: Clean The Outside
● Slide the bracket in the slot holes until the purge bucket is just below the nozzle ⓘ M ake sure the nozzle will clear the purge bucket, if the nozzle crashes into the purge bucket it can damage your Tool Cartridge or purge bucket ●... -
Page 52: Print Surface Maintenance
400 grit sandpaper 6.2.5 Removing Frame Panels In order to perform maintenance or fix an issue with your Nautilus, you may have to remove one of the frame panels. Before removing any panels, power off your Nautilus and unplug it. - Page 53 Front Panel To remove the front panel, remove ALL of the screws indicated in red circles. Carefully pull the front panel straight off, being careful not to pull on the wires connected to the touch screen. Unplug the Micro-USB cable and display connector carefully.
- Page 54 Right Side Panel To remove the right side panel, remove ALL of the screws indicated in red circles. When replacing the side panel, turn all of the screws a few turns but d o not tighten until all screws are properly seated . Be careful tightening the screws, too much force can strip the threads and damage your printer.
-
Page 55: Tool Head And Extruder
Tool Cartridge. Troubleshooting Issues Loading Filament ● Insert filament into your Nautilus until strong resistance is met, it should feel like the filament is running into a wall. ● Run the Material Load macro, if the filament begins to load into the printer, then your extruder is successfully loading filament. - Page 56 B e careful not to lose the springs on the tension screws if they come out with the screws 6. Use the flush cutters included with your Nautilus to cut the filament at the filament insertion point on the top of your Nautilus.
-
Page 57: Cleaning The Extruder
If you are comfortable working in tight spaces with limited visibility, this process can be done without removing the left side panel of the Nautilus. However, to make things more visible and accessible we recommend removing the left side panel for this procedure. -
Page 58: Extruder Tension
6.3.3 Extruder Tension The extruder tension refers to the amount of tension applied to the dual extruder gears that push filament into the Tool Cartridge. You should not need to adjust your extruder tension often, but if you have performed maintenance on the extruder or the extruder does not seem to be gripping the filament properly, you may need to adjust it. -
Page 59: Tool Cartridges
5. Use the needle included with your Nautilus to poke into the nozzle and clear the jammed material but d o not touch the nozzle or heater block. I t is recommended to wear gloves and/or use pliers to grip the needle. -
Page 60: Replacing Tool Cartridge Ptfe Tubing
Proper belt tension is crucial for accuracy and repeatability of the Nautilus’ motion system. To check the belt tension, pluck a long stretch of each belt in a similar place. It should resonate like a guitar string and both belts should produce a similar sound. -
Page 61: Electronics
6.6.1 Duet Wiring Diagram This is the wiring guide for the Duet 2 main board. If you have the ethernet version of the Nautilus all the wiring is the same, but you will notice the ethernet port takes the place of the WiFi module located in the lower left.
