Smartlink LUX-TWR Installation And Setup Manual

Two Way Wireless PIR Motion Sensor
APPLICATION & OVERVIEW
The Smartlink LUX–TWR Wireless PIR Motion Sensor is designed
for use with control/transceivers that accept Smartlink two-way tech-
nology. Lux is intended for use in residential and light commercial
installations and incorporates many advanced features designed to
ensure its reliable performance.
The dual element pyro-electric sensor detects movement within a
specific coverage area by sensing the infrared energy that is emitted
from an intruder moving across the sensor's field of view. A change in
the infrared energy across multiple detection zones is then processed
to determine if the occurrence qualifies as a legitimate motion detection
event. If it does then an alarm signal is transmitted to the controller.
The two-way radio (RF) in the LUX–TWR transmits alarm, tamper,
supervisory, and low battery messages to the control/receiver. each
sensor has a unique TXID number which is enrolled into the control
during installation. With its two-way capability, the LUX–TWR radio
listens after every transmission for a positive acknowledgment from
the control. This makes the sensor very energy efficient since it
doesn't waste battery power repeating transmissions unless they
are not acknowledged.
Like all battery powered motion detectors, the LUX–TWR has a
mandatory sleep cycle function to help extend the battery life. After
detecting motion, the sensor's radio will transmit the event to the control
and wait for acknowledgment. Upon acknowledgment the sensor will
enter the mandatory sleep cycle. During the sleep cycle time it cannot
transmit additional events. There are two (2) time choices for the
sleep cycle selected via DIP Switch #4. After the sleep cycle expires
the sensor will once again be capable of transmitting a new event.
The LUX–TWR includes the unique Smartlink LUX Security/Conve-
nience Light with a bright white LeD providing lighting for safety
TM
and convenience.
PACKAGE CONTENTS
1 - LUX–TWR PIR electronics assembly & back housing
1 - Standard swivel bracket, locking disc, screws & anchors
1 - Blanking plug
2 - CR123A Lithium Batteries
1 - Cover locking screw
1 - Bracket locking screw

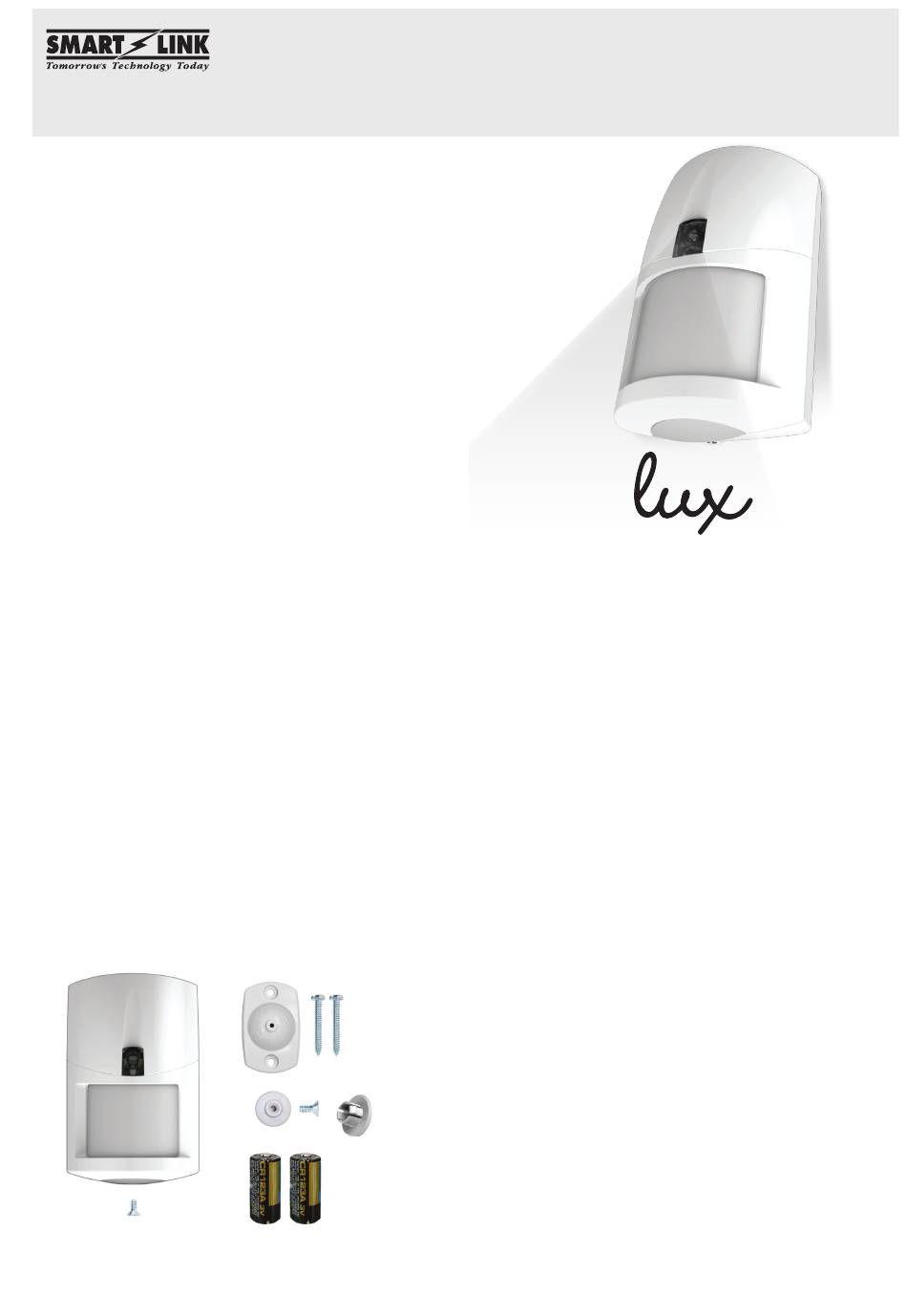

LUX–TWR
SMARTLINK LUX–TWR RADIO PIR MANUAL
Installation and Setup Guide
With unique security/night light!
FEATURES
• Wireless two-way communication
• Dual element pyroelectric sensor
• Selectable pulse count
• Selectable Hi/Lo range
• Excellent immunity from white light, RF, and ESD interference
• Bi-Colour RF Acknowledge LED (Green + Org/Red)
• Security/Convenience
• Long life Lithium batteries supplied
• Low battery trouble signal
• Sleep Cycle "Battery Saver" (2 time settings)
• Periodic (64 min.) Supervisory check-in
• Cover tamper protection
• Swivel mounting bracket included
• Optional deluxe 90° swivel bracket for ceilings sold separately
SPECIFICATIONS
• Dimensions: 112(h) x 72(w) x 48(d) mm
• Mounting Height: 2.1m – 2.4m
• Sensor: Dual element pyroelectric
• Coverage: Hi Range = 15m x 15m @ 88.2°
Lo Range = 12m x 12m @ 88.2°
20 dual element zones (2 Long, 10 intermediate, 4 mid, 4 short)
plus look down (creep zone)
• Pulse Count: 1-2 or 3-4, selectable
• Sleep Time: Selectable 30 sec. or 120 sec.
• RF Signal Acknowledge Indication: Bi-Colour LED
• Security/Convenience Light: White LED
• Warm Up Period: 10 seconds
• Operating Voltage: 3.0 Volts DC
• Battery Type & Size: 2 x Lithium CR123A
• Quiescent Current: < 10 µA
• Operating Temp: 0° to +50° C
• Humidity: 95% RH (max.), non-condensing
• Frequency: 902 - 928 Mhz channel hopping
PAge 1
LeD (White)
