- Page 1 Haiwell HMI User Manual Human Machine Interface C Series Ethernet HMI User Manual Xiamen Haiwell Technology Co., Ltd. www.haiwell.com...
-
Page 2: Table Of Contents
Haiwell HMI - C Series Ethernet HMI User Manual Contents 1. HMI Notes and Installation Steps...................................3 2. HMI Software........................................3 3. HMI Interface Definition....................................3 4. Product Specifications..................................... 3 5. HMI Parts and Panel Cutout................................... 4 6. HMI Calibration......................................... 4 7. -
Page 3: Hmi Notes And Installation Steps
Fit the HMI into the cutout panel and lock the four buckles on the sides with the mount panel. HMI Software Haiwell HMI uses the Haiwell SCADA software. You can download from haiwell official web: http://en.haiwell.com. Haiwell Cloud Service can be got by visiting Haiwell Cloud web (http://cloud.haiwell.com). We recommend you to use Haiwell Cloud APP. -
Page 4: Hmi Parts And Panel Cutout

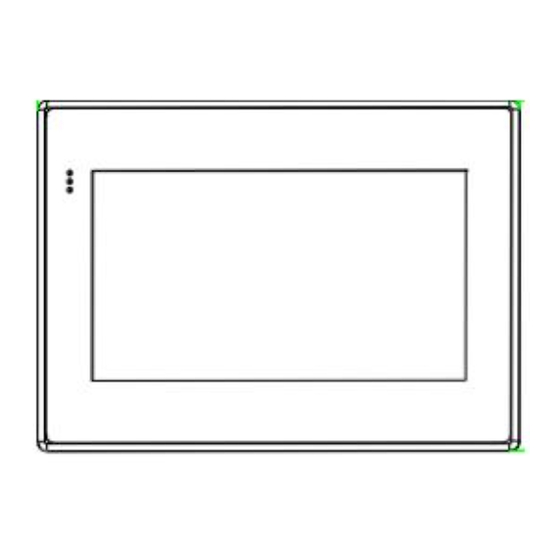

Haiwell HMI - C Series Ethernet HMI User Manual HMI Parts and Panel Cutout C7/C10 HMI parts description Liquid crystal and touch screen Indicator light Power slot COM2 Wifi Double-deck USB COM1 C7/C10 HMI C7 HMI C10 HMI C10 panel cutout... -
Page 5: Parameter Setting
Select the hardware settings, enter the parameters settings screen of touch-screen, you can set the network parameters, display and sound parameters, time parameters, etc., after the modification, click“Save”to take effect immediately. Thanks for choosing Haiwell HMI, If you have any questions about our products or services, please let us know! Haiwell website: www.haiwell.com Copyright ©...
