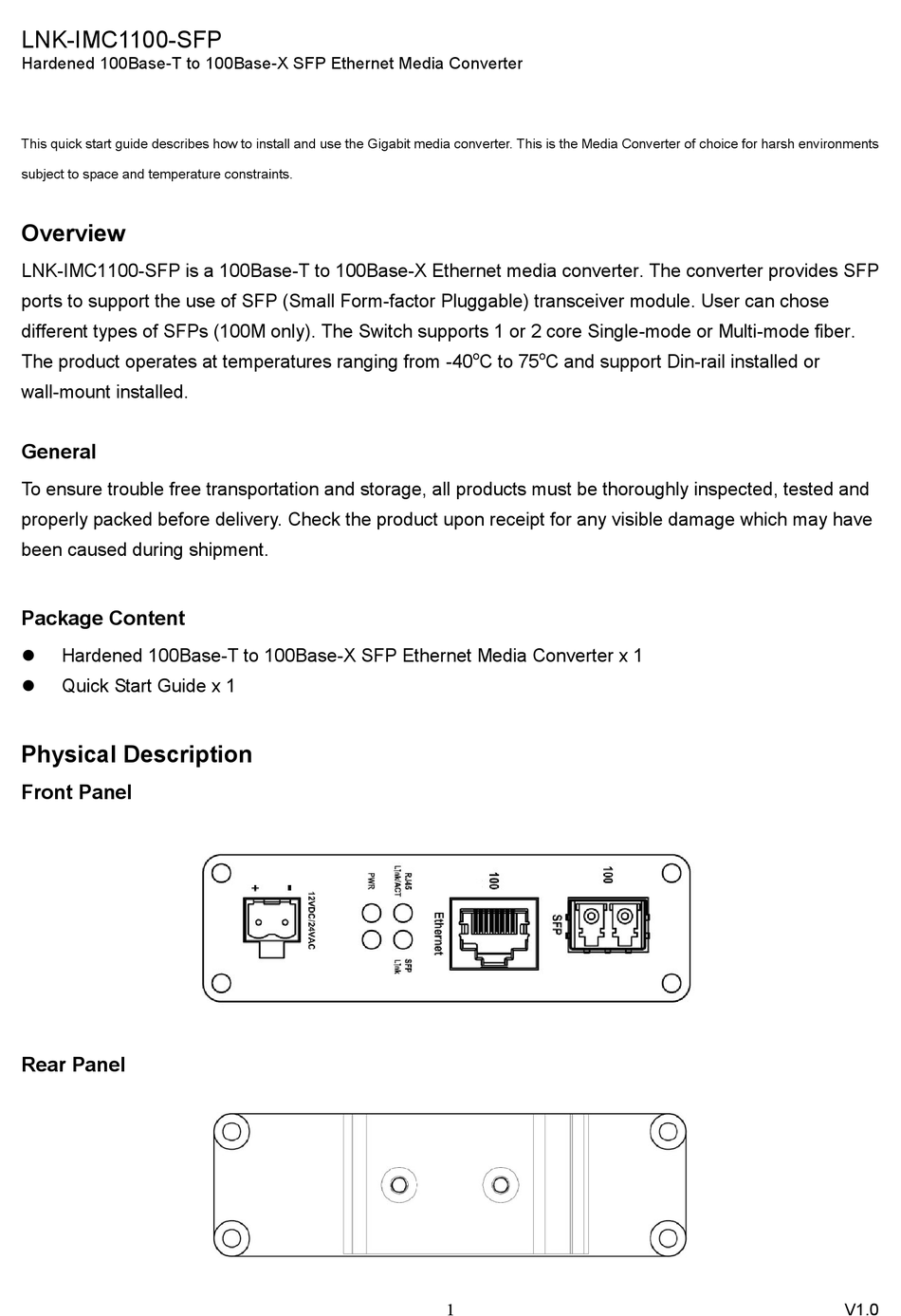

LNK-IMC1100-SFP
Hardened 100Base-T to 100Base-X SFP Ethernet Media Converter
This quick start guide describes how to install and use the Gigabit media converter. This is the Media Converter of choice for harsh environments
subject to space and temperature constraints.

Overview

LNK-IMC1100-SFP is a 100Base-T to 100Base-X Ethernet media converter. The converter provides SFP
ports to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can chose
different types of SFPs (100M only). The Switch supports 1 or 2 core Single-mode or Multi-mode fiber.
The product operates at temperatures ranging from -40
wall-mount installed.

General

To ensure trouble free transportation and storage, all products must be thoroughly inspected, tested and
properly packed before delivery. Check the product upon receipt for any visible damage which may have
been caused during shipment.

Package Content

Hardened 100Base-T to 100Base-X SFP Ethernet Media Converter x 1
Quick Start Guide x 1

Physical Description

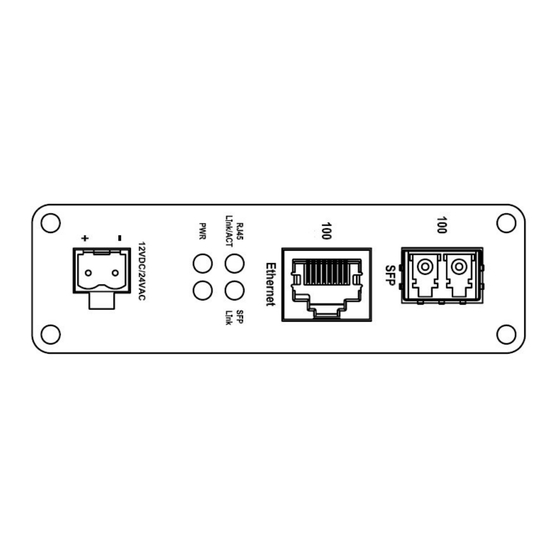

Front Panel
Rear Panel
o
o
C to 75
C and support Din-rail installed or
1
V1.0
