Summary of Contents for Micmas MS-9603

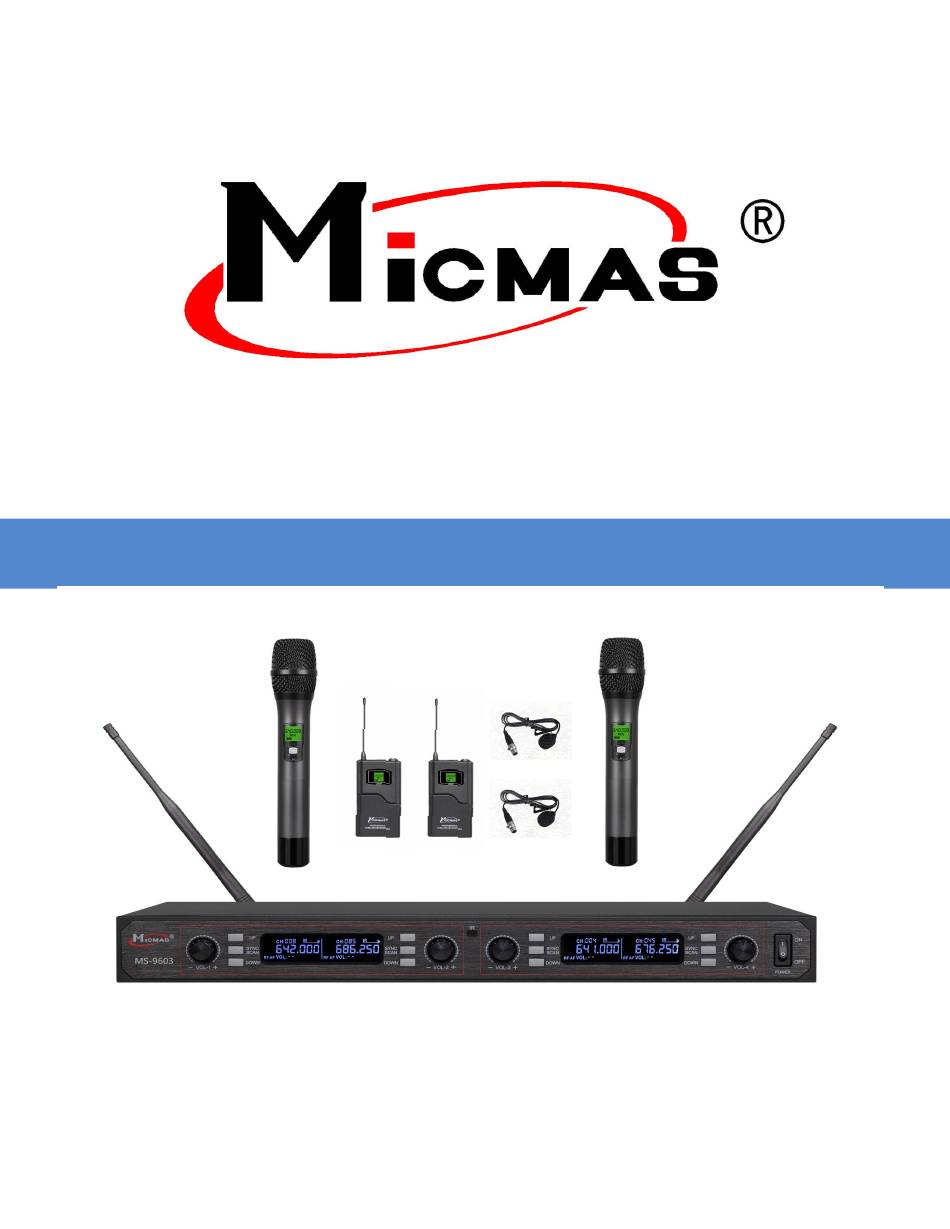

- Page 1 PRODUCT MANUAL Micmas...
- Page 2 Join the Micmas revolution and see what tens of thousands already know. Whether it is for the garage band, live sound, stage, or studio... Micmas is bang for the buck, the best Wireless microphone...
- Page 3 Specifica tions Operating Range: up to 400 feet Channel Selection: 200 UHF channels Frequency Range: 640-690 MHz Frequency Stability: ±0.05% Modulation Mode: Frequency Response: 40Hz-15KHz Dynamic Range: >100dB S/N: >100dB THD: <0.5% Audio Output: Individual Balanced XLR outputs, Mix Unbalanced TS or XLR Power Voltage: AC 110V or 220V Temperature Range: -4°F to 140°F...
-
Page 4: Handheld Microphone
Receiver Rear Antenna Port Individual Channel Output - 3-Pin XLR Male Connection Mix Audio Output - 1/4” TS Female Connection or 3-Pin XLR Male Connection AC Power Input Receiver LCD Displa y CH - UHF Channel Number IR - Indicator for IR Transmission UHF Frequency RF - Signal Strength Indicator VOL - Not Used... - Page 5 Microphone LCD Displa y Channel Frequency Battery Level La v alier Windscreen Clip Mini-XLR Output body Pack Top Mini-XLR Input Power LED Power ON/OFF IR Receiver Antenna...
- Page 6 Body Pack LCD Display Channel Frequency Battery Level Setup and Opera tion Connect the Receiver to PA system with XLR for individual channel sends or via TS for mix output. Turn on the Receiver Power on handheld microphone or body pack. To manually choose a frequency, press the UP or DOWN buttons located on the receiver until a desired fr equency is selected.
-
Page 7: Troubleshooting
If you are still experiencing issues after following this troubleshooting guide, please call us directly at 0086-18688552515 or email to micmas2010@hotmail.com for expert assistance. The specifications and instructions provided in this manual are subject to change without notice. Visit us a t: www.micmas.cn...
