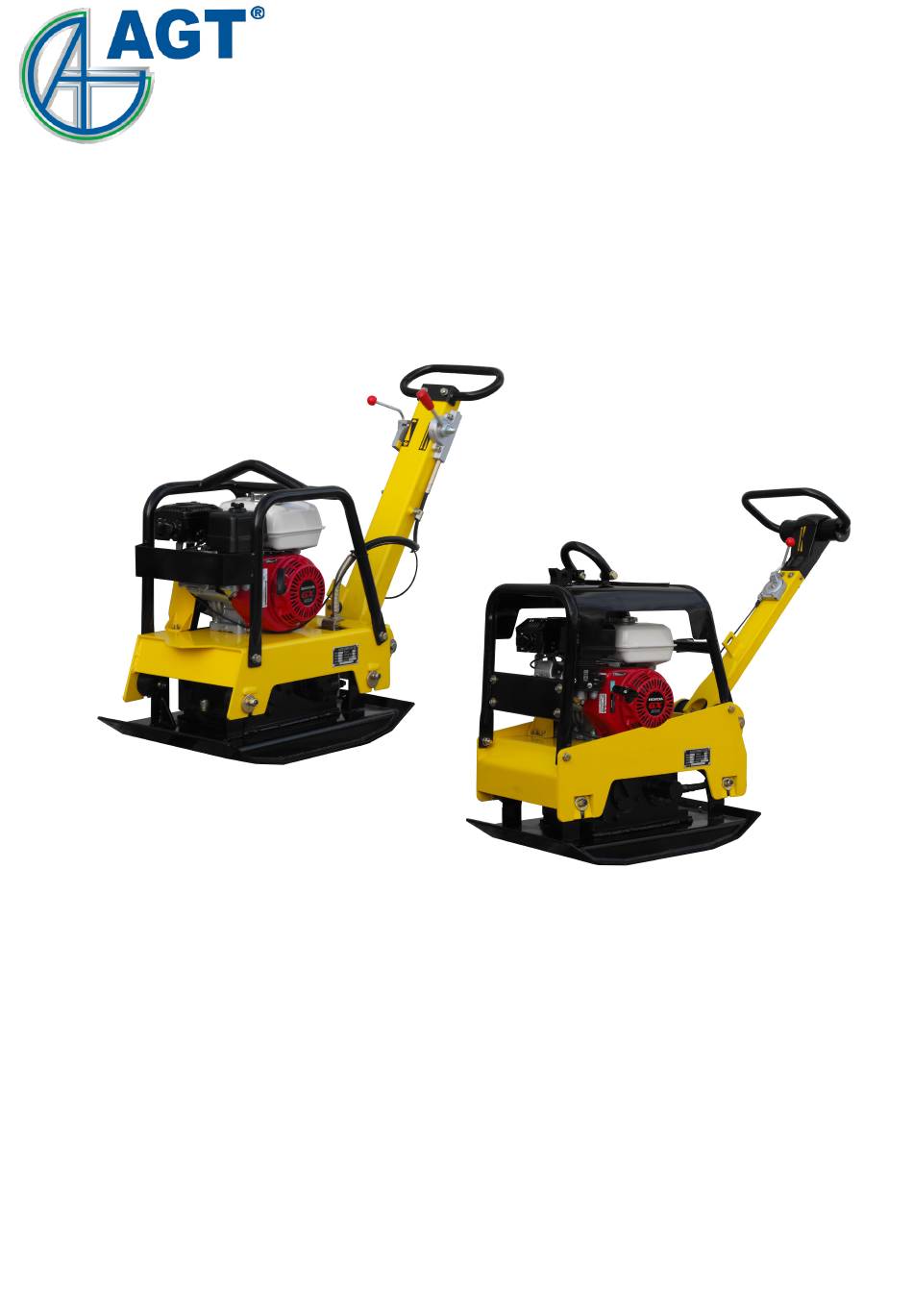

  • Page 1 AGENT TRADE USER MANUAL REVERSIBLE PLATE COMPACTOR CRBH 130 CRBH 170 CRBH 270 CRBH 330 CRBH-H170 CRBH-H300 CRBH-H400 www.agt.ro...
  • Page 2 FOREWORD We thank You to choose an AGT plate compactor. Your new machine is an useful and safety job’s tool. Observing the safety regulations and the instructions in this book, there will not be any physical injury and the plate will be always in good conditions.
  • Page 3: Table Of Contents

    INDEX SAFETY INSTRUCTIONS FOR PLATE COMPACTORS ............4 SAFETY ..........................4 TRANSPORT AND LIFTING ....................5 MAINTENANCE ........................5 PERIODIC MAINTENANCE ....................5 CLIMBING ABILITY ........................ 6 FUNCTION ..........................6 APPLICATIONS ........................6 CHECKS BEFORE STARTING ................... 7 ENGINE STARTING (MANUAL) ..................7 ENGINE STOPPING (MANUAL) ..................
  • Page 4: Safety Instructions For Plate Compactors

    TO FILL IN BY THE CUSTOMER Model ..............Serial Number ........... SAFETY INSTRUCTIONS FOR PLATE COMPACTORS SAFETY  Plate compactors must only be operated by person who:  is at least 18 years old;  is physically and mentally fit for this job; ...
  • Page 5: Transport And Lifting

     Do not turn the engine on without air filter. WARNING Modifications in this machine are subject to the express approval of AGT which in case of non-observance will refuse all liabilities and all warranties.  Do not make maintenance operations when machine is running or when engine is on.
  • Page 6: Climbing Ability

    CLIMBING ABILITY FUNCTION The vibration required for tamping is produced by the exciter which is on the compacting plate. The engine starts the exciter and the torque is transmitted by the centrifugal clutch and by the belt. In order to allow the idling of the drive engine, the centrifugal clutch, at low engine speeds, interrupts the flow of power to exciter.
  • Page 7: Checks Before Starting

    OPERATION CHECKS BEFORE STARTING  Before start using compactor, carefully read instruction manual.  Engine oil level Check oil level using the proper dipstick. If necessary refill with SAE 10W30 oil.  Air filter Check that air filter is clean and in good condition. If necessary clean or replace it. ...
  • Page 8: Engine Stopping (Electric Starter)

    ENGINE STOPPING (ELECTRIC STARTER)  Move the throttle lever to the minimum position. Let the engine turn at the minimum speed for some minutes.  Turn the key on the OFF position.  Release the key when engine starts WARNING Never operate the engine switch when the engine is at the maximum speed.
  • Page 9: Maintenance

    Do not disperse oil, batteries, fuel and dangerous substances in the ambient, as they have high pollution power. MAINTENANCE PARTS MAINTENANCE INTERVAL Air filter Check filter, clean or replace if it is necessary daily Check filter oil level (only oil bath models) Fuel tank Check fuel tank and fuel cap lid.
  • Page 10: Trouble, Cause, Solution

    Mechanical failure or failure exciter makes vibration but dismissing of eccentrically the machine doesn’t work or Contact immediately AGT or any other weight work in irregular way authorized centre The mechanicals parts of Open the exciter and replace the weared...
  • Page 11: Technical Data

    TECHNICAL DATA Model CRBH130 CRBH170 CRBH270 CRBH330 Engine HONDA HONDA HONDA HONDA GX160 GX200 GX270 GX390 Max. Power 5.5 HP 6.5 HP 9 HP 13 HP Engine speed 3600 rpm 3600 rpm 3600 rpm 3600 rpm Displacement 163 cm 196 cm 270 cm 389 cm Travel speed...
