Willoughby Industries E1L1 Installation & Operation Manual

Willoughby Industries E1L1 Installation & Operation Manual

Plastic bodied

Advertisement

Quick Links

Noted
Indianapolis, Indiana
2 Places +/- �03
Tolerances
3 Places +/- �015
Except as
Fractions +/- 1/32"
Noted
Angle +/- 1
Rev. 6/2019
Job Name:
N/A
Angle +/- 1
Title or Part Description:
E1L21 DUAL TEMP ELECTRONIC VALVE ASSEMBLY O&M PAGE 4 ISO
Material:
Job Name:
N/A
E1L1
E1L2
Willoughby Industries, Inc.
5105 West 78th Street
Indianapolis, IN 46268
Toll Free:
(800) 428-4065
Local:
(317) 875-0830
Fax:
(317) 875-0837
www.willoughby-ind.com

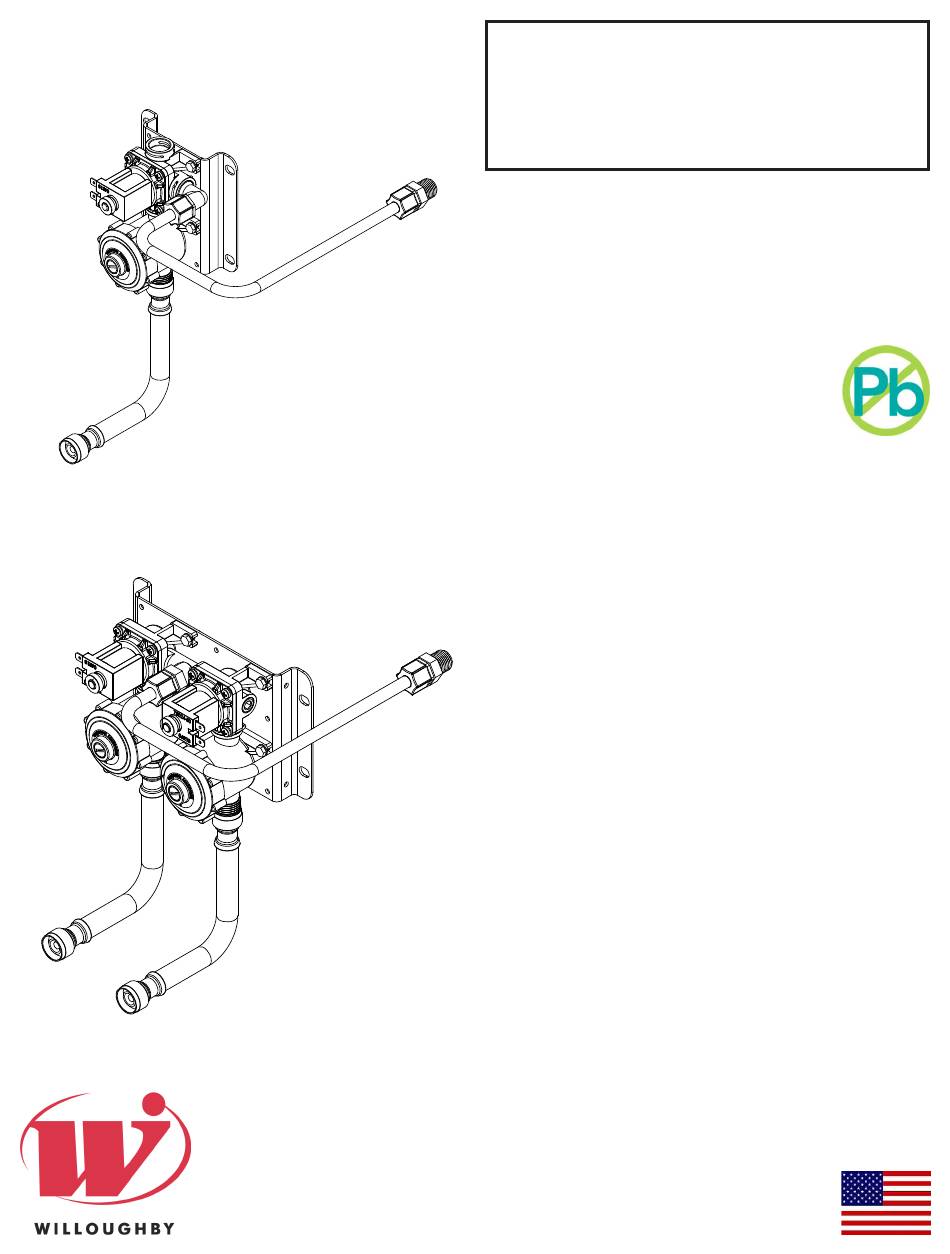

Installation &
Operation Manual
1
2

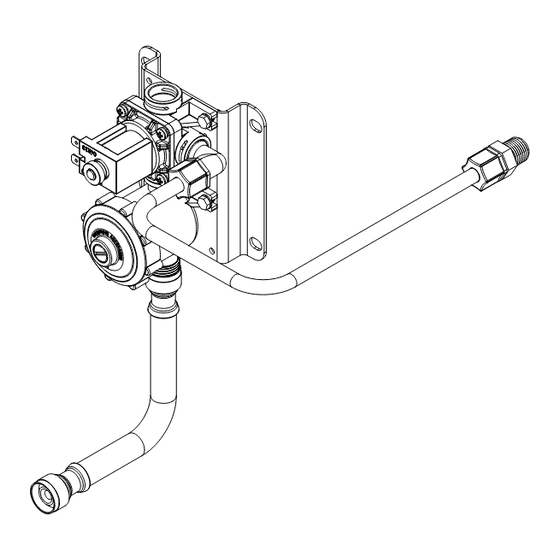

E1L1 and E1L2
Lead-Free Electronic Series
3
Valves
4
(Plastic Bodied)
Scale:
Drawn By:
TRB
1:8
5

Table of Contents

Pre-Installation Information �������������������������������������3
General Specifications ��������������������������������������������4
1
Physical Dimensions ������������������������������������������������
2
#980408 ��������������������������������������������������������������5
E1L11 Valve Breakdown �������������������������������������6
3
E1L12 Manifold Valve Breakdown ���������������������� 7
E1L21 Valve Breakdown�������������������������������������8
E1L22 Manifold Valve Breakdown ���������������������� 9
Checking Contents ����������������������������������������������� 11
Installation Instructions �����������������������������������������12
Electronic Piezo Switch Detail �������������������������� 13
Jaco Fitting Instructions ������������������������������������14
Care and Maintenance ���������������������������������������������
4
Electronic Valve Assembly Operation and
Maintenance �����������������������������������������������������15
Cleaning Instructions ����������������������������������������16
Troubleshooting Electronic Valves ����������������������� 17
Replacement Part Numbers �������������������������������������
#980408 ������������������������������������������������������������18
Checkstop Breakdown P/N 980183 ������������������ 19
Drawings ������������������������������������������������������������������
Pushbutton Assembly #600313 ������������������������ 20
Pushbutton Assembly #600314LR ������������������� 21
Warranty ���������������������������������������������������������������22
Part Number:
E1L11
10
9
7
Qty:
Revision #:
Date:
N/A
5/1/12
6
Part Number:
E1L21
11
6
5
MADE IN THE U.S.A.
11/13/12
2 Of 3
8
8
Drawing #:
980610
OPTIONAL 3/8" x 3/8" ELBOW
Approved By:
A
Sheet:
2 Of 3
10
10
9
OPTIONAL 3/8" x 3/8"
ELBOW
8
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E1L1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Willoughby Industries E1L1

  • Page 1: Table Of Contents

    Table of Contents Pre-Installation Information �������������������������������������3 General Specifications ��������������������������������������������4 Physical Dimensions ������������������������������������������������ E1L1 E1L1 Single Temp Solenoid Valve Assembly #980408 ��������������������������������������������������������������5 E1L11 Valve Breakdown �������������������������������������6 E1L12 Manifold Valve Breakdown ���������������������� 7 E1L21 Valve Breakdown�������������������������������������8 E1L22 Manifold Valve Breakdown ���������������������� 9 Checking Contents �����������������������������������������������...
  • Page 2 E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves (Page left intentionally blank) Willoughby Industries, Inc. TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 6/2019 www.willoughby-ind.com Page 2...
  • Page 3: Pre-Installation Information

    PRIOR Flush lines thoroughly to hook-up When installing the Willoughby Industries' E1L1 and E1L2 Lead-free Electronic Series Valves: When installing the Willoughby Industries’ WAW, WAF, or WWF series washfountains or lavatory deck systems: Before step 1 of the installation instructions, ensure that rough-ins are in the correct location�...
  • Page 4: General Specifications

    Electronic Series Valves General Specifications Electronic valve assembly shall be Willoughby Model No� E1L1 or E1L2 as noted� Valve shall be con- structed of plastic and stainless steel materials and complies with NSF-61 standard� Stainless steel pushbutton switches on the fixture shall be wired to an appropriate electronic valve control (select from the list of control choices)�...
  • Page 5: Physical Dimensions

    Installation & Operation Manual Electronic Series Valves Physical Dimensions Drawing #: Willoughby Industries Inc. Title or Part Description: 980408 E1L VALVE ASSEMBLY E1L1 Single Temp Solenoid Valve Assembly #980408 Indianapolis, Indiana 2 Places +/- �03 Drawn By: Scale: Date: Qty: Revision #:...
  • Page 6: E1L11 Valve Breakdown

    Drawing #: Willoughby Industries Inc. Title or Part Description: 980576 E1L11 SINGLE TEMP ELECTRONIC VALVE ASSEMBLY O&M PAGE 2 ISO Indianapolis, Indiana E1L1 and E1L2 2 Places +/- �03 Drawn By: Scale: Date: Qty: Revision #: Tolerances Material: 3/15/11 STANDARD DWG�...
  • Page 7: E1L12 Manifold Valve Breakdown

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Physical Dimensions E1L12 Manifold Valve Breakdown OPTIONAL 3/8" x 3/8" ELBOW ITEM NO� PART # DESCRIPTION 980408PR E1L VALVE ASSEMBLY, RIGHT-PLUGGED PORT 980164 'O'-RING, #015 980197 PLASTIC VALVE COUPLING 980140...
  • Page 8: E1L21 Valve Breakdown

    E1L1 and E1L2 Drawing #: Willoughby Industries Inc. Title or Part Description: Installation & Operation Manual 980610 Electronic Series Valves E1L21 DUAL TEMP ELECTRONIC VALVE ASSEMBLY O&M PAGE 4 ISO Indianapolis, Indiana 2 Places +/- �03 Drawn By: Scale: Qty:...
  • Page 9: E1L22 Manifold Valve Breakdown

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Physical Dimensions E1L22 Manifold Valve Breakdown OPTIONAL 3/8" x 3/8" ELBOW ITEM NO� PART # DESCRIPTION 980409 DUAL TEMP, WILLOUGHBY SOLENOID PARTS ASSY (E1L2) 980197 PLASTIC VALVE COUPLING 980140 SPRING CLIP...
  • Page 10 E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves (Page left intentionally blank) Willoughby Industries, Inc. TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 6/2019 www.willoughby-ind.com Page 10...
  • Page 11: Checking Contents

    Separate all parts from packaging and make sure all parts are accounted for before discarding any packaging material� If any parts are missing, do not attempt to install E1L1 or E1L2 Lead-free Electronic Series Valves until you obtain the missing parts�...
  • Page 12: Installation Instructions

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Installation Instructions Clear and flush all supply lines to valves. Mount the valves at any convenient location. Make sure to have sufficient length of wire leads to reach between the electrical piezo switches and the valves�...
  • Page 13: Electronic Piezo Switch Detail

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Installation Instructions (cont.) Electronic Piezo Switch Detail Willoughby Industries, Inc. TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 6/2019 www.willoughby-ind.com Page 13...
  • Page 14: Jaco Fitting Instructions

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Installation Instructions (cont.) Operation and Maintenance Manual Fitting Instructions Jaco Fitting Instructions Note: It is not necessary to disassemble this fitting for application. Merely insert tubing to stop and tighten seal.
  • Page 15: Care And Maintenance

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Care and Maintenance Electronic Valve Assembly Operation and Maintenance The Willoughby Electronic Valve Assembly is designed as an electrically operated, normally closed valve, low voltage valve� This type of valve is used for lavatories as well as showers�...
  • Page 16: Cleaning Instructions

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Care and Maintenance Cleaning Instructions Willoughby Industries, Inc. TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 6/2019 www.willoughby-ind.com Page 16...
  • Page 17: Troubleshooting Electronic Valves

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Troubleshooting Electronic Valves VALVE LEAKS, WILL NOT OPEN, OR WILL NOT SHUT OFF: Make sure the checkstop/strainer on the supply line to the valve is fully open� Do not partially close the checkstop for any reason as it is not a throttling valve�...
  • Page 18: Replacement Part Numbers

    Installation & Operation Manual Electronic Series Valves Replacement Part Numbers Drawing #: Willoughby Industries Inc. Title or Part Description: 980408 E1L1 Single Temp Solenoid Valve Assembly #980408 E1L VALVE ASSEMBLY Indianapolis, Indiana 2 Places +/- �03 Drawn By: Scale: Date:...
  • Page 19: Checkstop Breakdown P/N 980183

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Replacement Part Numbers Checkstop Breakdown P/N 980183 ASSEMBLED VIEW EXPLODED VIEW ITEM # PART # DESCRIPTION QTY� 980580 CHECKSTOP BASE AND FLOW RESTRICTOR ASSY 980194 STRAINER PLUNGER 980201 SPRING, CHECKSTOP/STRAINER...
  • Page 20: Pushbutton Assembly #600313

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Drawing- Pushbutton Assembly #600313 Willoughby Industries, Inc. TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 6/2019 www.willoughby-ind.com Page 20...
  • Page 21: Pushbutton Assembly #600314Lr

    E1L1 and E1L2 Installation & Operation Manual Electronic Series Valves Drawing- Pushbutton Assembly #600314LR Willoughby Industries, Inc. TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 6/2019 www.willoughby-ind.com Page 21...
  • Page 22: Warranty

    Willoughby Industries, Inc� Willoughby Industries, Inc� shall not otherwise be liable under any indirect damages caused by defects in the repair or replacement thereof�...
