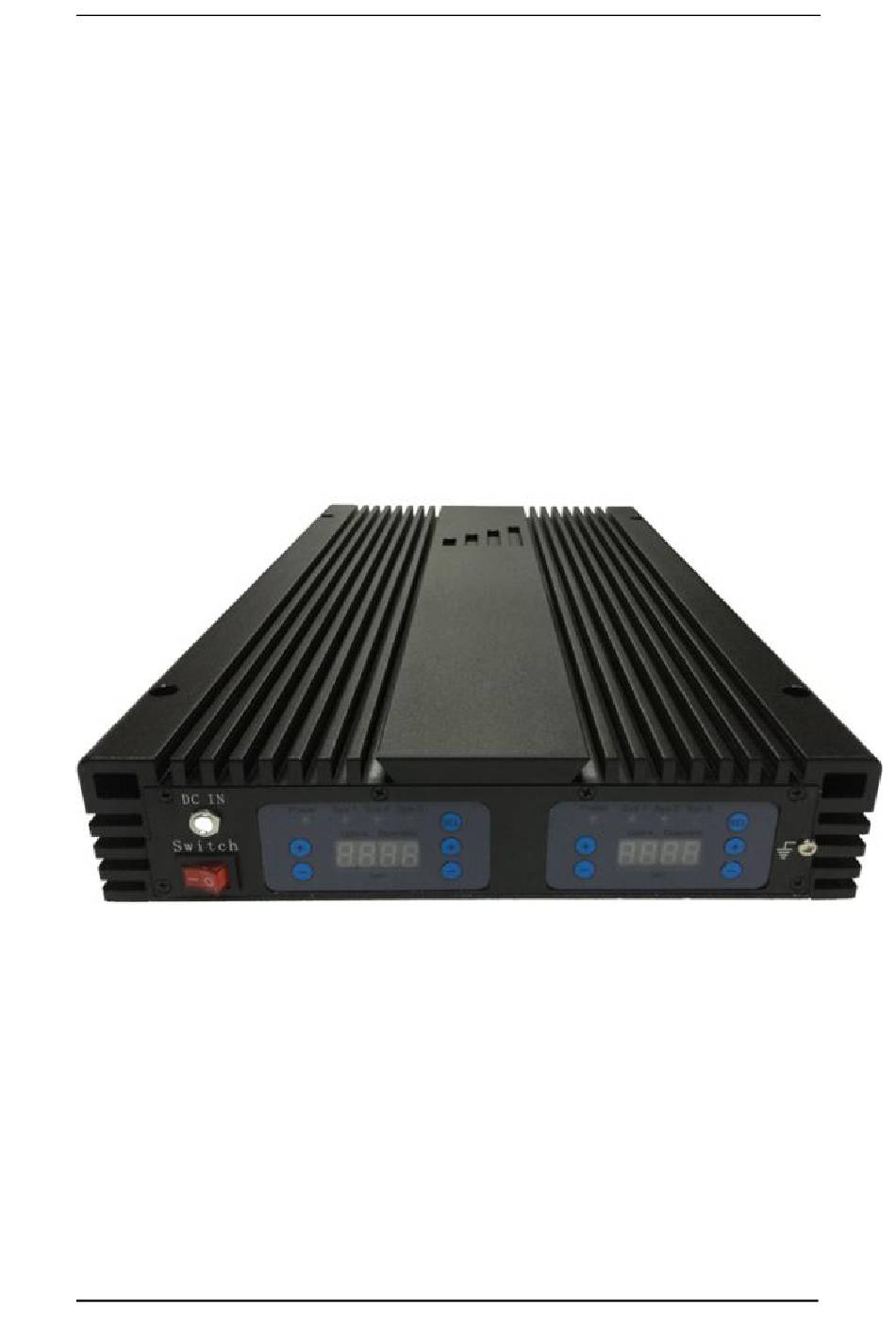

- Page 1 Triband signal repeater User Manual...
-
Page 2: Table Of Contents
CATALOGUE C h a p t e r 1 S a f e t y Wa r n i n g … … … . … … … … … … … … … … … … … … … … … . . 3 C h a p t e r 2 S u m m a r y …... -
Page 3: Chapter 1 Safety Warning
Chapter 1 Safety Warning Users must follow the below principles: Repeater should follow system requirement of communication equipment, assure good groundings and lightning protection. 2 The power supply voltage of repeater should meet the standards of security requirement; any repeater-operator can operate only after cutting power in advance. -
Page 4: Chapter 2 Summary
Chapter 2 Summary In mobile communication, it is inevitable that macro-cell coverage cannot cover weak or dead zones; to use repeater is a good choice in these areas. Dual wide band repeaters mainly applied in covering small blind and weak zones. Such as VIP rooms, offices, houses, restaurants, apartments, parking lots, etc. -
Page 5: System Diagram
500-3000 Square meters ALC to limit output power at specified power level and ensure stable coverage effect. AGC function by 1dB/step from 1-31dB Gain range. System diagram 3.4 Appearance Diagram 3.5 Ports(BTS for outdoor, MS for indoor.) Chapter 4 Installation... -
Page 6: Installation Requirements
4.1 Installation requirements Quad band, five band repeaters are mainly applied to indoor coverage solution . After connection of equipment and antenna, the distance of them should be keep as far away as possible, it’s better that there is a wall as the obstruct between them( far than 15 meters). -
Page 7: Installation
4.2 Installation Installation step 1 Installation step 2 Installation Steps: 1: Use percussion drill to make four Φ7 holes on the wall according to above hole diagram, fasten the onto the wall. Expanding plug 2: Screw up repeater to the wall. 4.3 Connection ... -
Page 8: Performance Setting
to input port, service antenna connected to output port), and whether every port is stable. After affirmation, please go along the followings: 5.1 Power supply connection After power supply connection, check ALARM and POWER indicators first. Status and definition of POWER indicators: Status Definition green... - Page 9 Curve chart of equipment working condition Output Power Edge Point input Power Green: Linear Red: Orange:stable amplification Overloading performance Picture 3: Curve of output power, input signal and attenuation value 1/ P : output power 4/ P Output Power input Power 2/ P : input power...
- Page 10 The installation of a repeater is easy and simple. With its plug and play design, installation simplicity, and operational user friendliness, these features appeal greatly to many operators for the purpose of indoor coverage or for temporary coverage during network optimization.
-
Page 11: Chapter 6 Product Maintenance
Chapter 6 Product Maintenance 6.1 Operation and maintenance Power supply Please make sure the voltage and frequency comply with the repeater requirement. Component replacement Please do not maintain or replace components by yourself, otherwise may get an electric shock. Only the authorized professional can maintain and replace the components.
