BRCK Quick Start Manual

Status light colour codes

Battery Status

Inner box
Fully Charged (95-100%) - Blue
Ok Power (41-94%) - Green
Low Power (11-40%) - Yellow
Very Low Power(0-10%) - Red
CHARGING - PULSING
° BRCK < NAME > : The default name of your BRCK, where < NAME > is a randomly generated code for setup
° Browser : A software application for presenting resources on the World Wide Web.
The major web browsers are Google Chrome, Mozilla Firefox, Internet Explorer, Opera, Safari & Lynx
° Status Light : The top guide light on your BRCK (fig A - 1)
° AUX USB : USB slot to connect external devices eg: phone, tablets etc - 500mA Max (fig A - 3)
° Ethernet Port : Ethernet slot used to connect an Ethernet cable (RJ45 cable) to another router (fig A - 4)
° SIM Slot : SIM card slot used to Insert a standard data enabled SIM card (fig A - 5)
(for nano & micro SIMs, you will require a SIM adapter)
° Power Micro-USB Port : Micro-USB slot used to charge the BRCK using the provided USB cable (fig A - 5)
° Cell RP-SMA : Antenna expansion port (attach antenna for better cellular coverage) (fig A - 6)
° GPIO connection : The bottom port used to connect external devices (fig A - 7)
6 month warranty against defects in materials and workmanship.
Warranty :
For more information see http://www.brck.com/warranty
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause undesired
BRCK.com © All rights reserved
Signal Status
Outer box
Blue - 3G / 2G / EDGE
Green - WiFi
Purple -
Ethernet
White -
BRCK-Net
Yellow - Booting Up
SPINNING - Seeking Connection
appendix
operation.
®
A

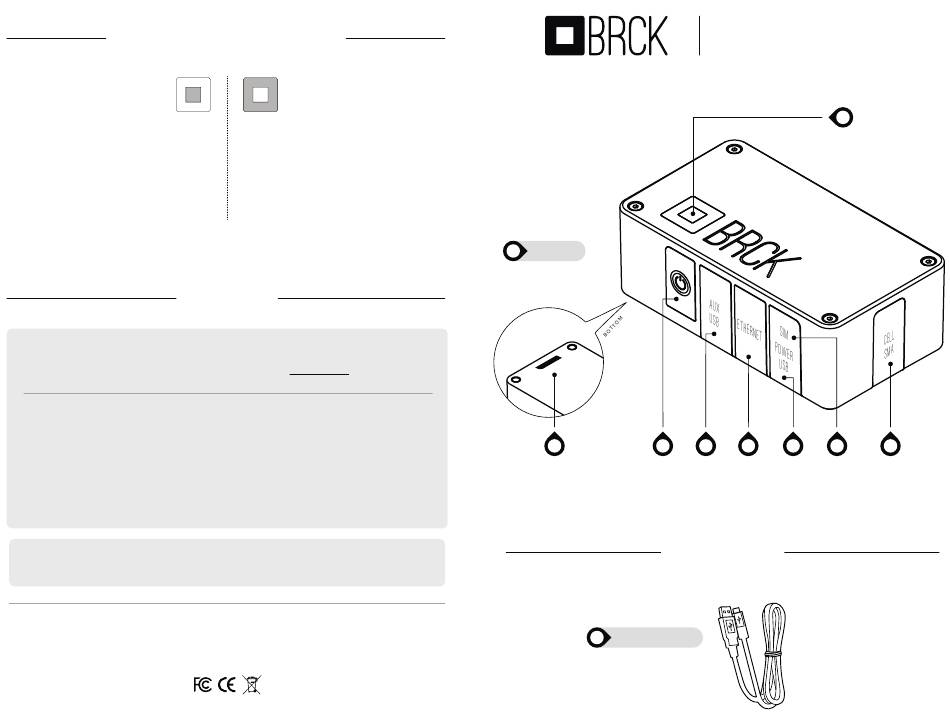

THE BRCK
8 2
GPIO CONNECTION POWER
BUTTON
( General Purpose Input/Output )
accessori e s
B MICRO USB CABLE

QUICK START GUIDE

SETUP YOUR BRCK IN 6 SIMPLE STEPS
1 STATUS LIGHT
3 4 5 6
AUX ETHERNET POWER FULLSIZE
USB PORT USB SIM CARD
PORT SLOT
7
CELL
SMA
PORT
