- Page 1 Sure-Fi Analog Bridge Operators Manual Doc #PI0254 Rev 1.0 www.GateOpenerSafety.com | (800) 878-7829 | Sales@GateOpenerSafety.com...
- Page 2 Sure-Fi Analog Bridge Quick Startup The two units that are packaged together are factory paired and will only communicate with each other. Check initial operation Connect the 9V battery (included) to the 9V power cable (included) and plug the two-position connector in to the ‘+VIN’...
-
Page 3: Table Of Contents
Sure-Fi Analog Bridge Table of Contents Part Numbers Pg. 5 Product Overview Pg. 5 Key Features Pg. 5 General Specifications Pg. 6 Radio Transceiver Specifications Pg. 6 Device Overview, Analog Receiver Interface Pg. 7 Device Overview, Analog Sensor Interface Pg. 8 Receiver Interface –... - Page 4 Sure-Fi Analog Bridge Figure/Table Reference Guide Figure 1: Device Overview: Receiver Interface Pg. 7 Figure 2: Device Overview: Sensor Interface Pg. 8 Table 1: Receiver Interface Top Edge Connectors P1 and P2 Pg. 9 Table 2: Receiver Interface Bottom Edge Connectors P1 and P2 Pg.
-
Page 5: Part Numbers

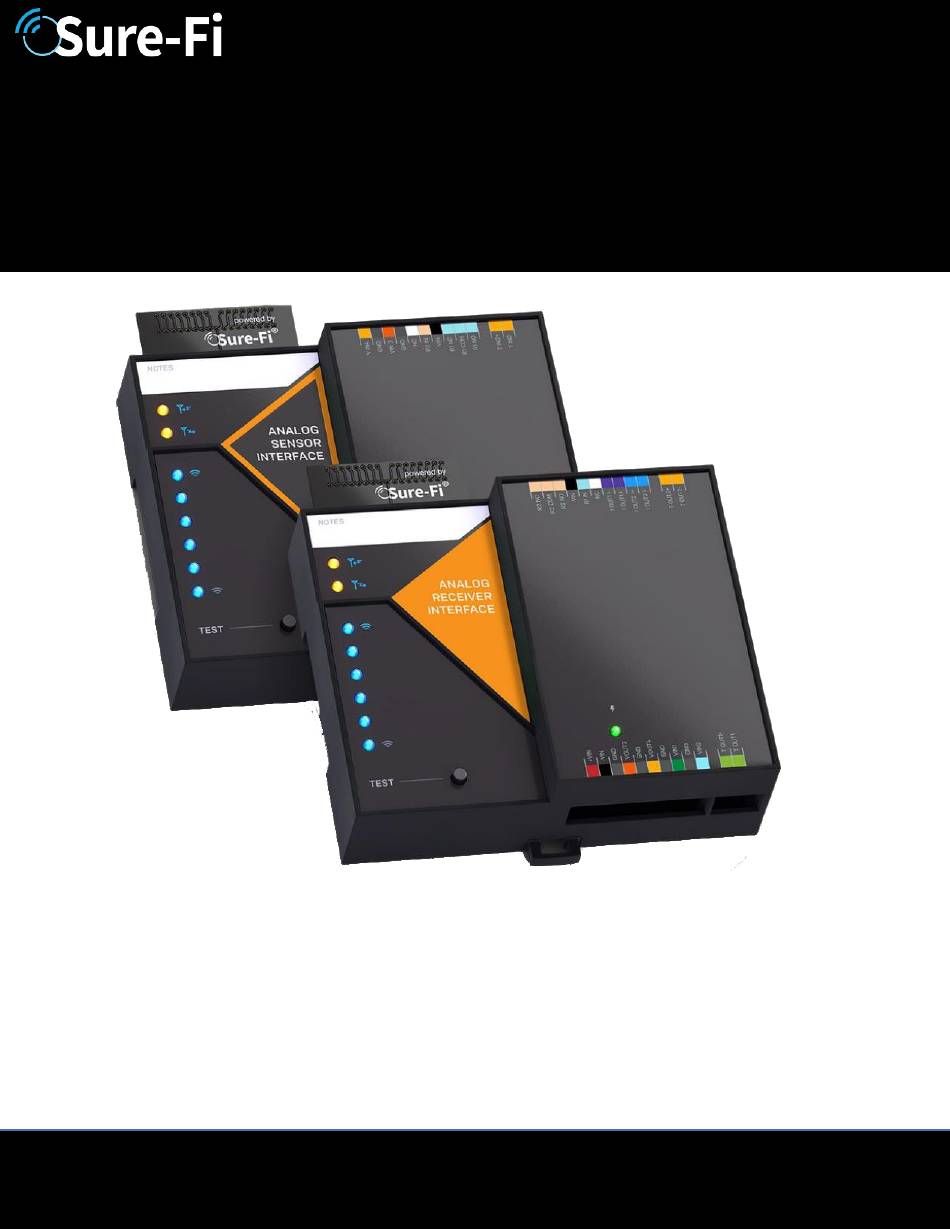

Sure-Fi Analog Bridge Part Numbers SFI-AB400-01 Analog Bridge system: includes 1 ea. SFI-AB401-01 and SFI-AB402-01 SFI-AB401-01 Analog Receiver Interface SFI-AB402-01 Analog Sensor Interface Overview The Sure-Fi SFI-AB400-01 Analog Bridge System consists of two units that are factory paired and ready to use out of the box with no configuration required. -
Page 6: General Specifications
Sure-Fi Analog Bridge General Specifications Operating Voltage: 12 to 30 VAC/VDC Operating Current: @ 12VDC: 0.05A (idle), 0.3A (transmit) Operating Power: 3.6 Watt (peak) Voltage Loop Inputs: Two per unit, 0 – 10V, 0.1% FS Voltage Loop Outputs: Two per unit, 0 – 10V, 0.1% FS of the input sample Maximum Output Current: 10mA Current Loop Inputs: Two inputs on Sensor Interface, 4 –... -
Page 7: Device Overview, Analog Receiver Interface
Sure-Fi Analog Bridge Device Overview Figure 1: Overview, Analog Receiver Interface www.GateOpenerSafety.com | (800) 878-7829 | Sales@GateOpenerSafety.com... -
Page 8: Device Overview, Analog Sensor Interface
Sure-Fi Analog Bridge Device Overview Figure 2: Overview, Analog Sensor Interface www.GateOpenerSafety.com | (800) 878-7829 | Sales@GateOpenerSafety.com... -
Page 9: Receiver Interface - Top & Bottom Connector Pin Descriptions
Sure-Fi Analog Bridge Receiver Interface connectors Table 1: Top Edge Connectors P1 and P2. See Figure 1 for connecter locations and pin numbers CONNECTOR POSITION NAME DESCRIPTION 1 (right end) T2 OUT+ Resistance Channel 2 positive output (0 – 10V) T2 OUT- Resistance Channel 2 negative (GND) I2 OUT+... -
Page 10: Sensor Interface - Top & Bottom Connector Pin Descriptions
Sure-Fi Analog Bridge Sensor Interface connectors Table 3: Top Edge Connectors P1 and P2. See Figure 2 for connecter locations and pin numbers CONNECTOR POSITION NAME DESCRIPTION 1(right end) T2 IN+ Resistance Channel 2 input (0 – 100K Ohms) T2 IN- Resistance Channel 2 input (0 –... -
Page 11: Analog Channels
Sure-Fi Analog Bridge Analog Channels Analog Voltage: There are two analog voltage channels that go in each direction between the Sensor Interface unit and the Receiver Interface unit. The analog voltage channels are default at 0 – 10V and can be set using the Sure-Fi App to any range between 0 –... - Page 12 Sure-Fi Analog Bridge Table 5: Analog Input Ranges and Settings: Table 6: Analog Output Ranges and Settings: Table 7: Other Ranges and Settings: www.GateOpenerSafety.com | (800) 878-7829 | Sales@GateOpenerSafety.com...
-
Page 13: Relays: Operating The Relays, Relay Control
Sure-Fi Analog Bridge Relays Operating the relays: The Form C relay on each unit is operated by the corresponding relay input on the paired unit. For example, to activate Relay 1 on the Sensor Interface, the Relay 1 input (R1 IN) on the Receiver must be connected to a minimum of 7VAC/VDC. -
Page 14: Connector Plug Information And Part Numbers
Sure-Fi Analog Bridge Connectors The connectors are 3.5mm EURO type. For the 10 position connectors, P1 and P3, the mating plug is Molex pn 39500-0010. For the 2 position connectors, P2 and P4, the mating plug is Molex pn 39500-0002. Wire Range: 16 to 30AWG stranded or solid. -
Page 15: Mounting
Sure-Fi Analog Bridge Mounting DIN Rail mount: DIN rail mounting allows the unit to easily clip and unclip from the DIN rail. Attach a piece (minimum 4” length) of 35mm type DIN rail to the wall and then snap the unit to the DIN rail or slide it on from the end. The unit will snap in to place by putting the top retaining tabs on to the DIN rail first, then pressing the bottom on to the DIN rail until it snaps in to place, the bottom DIN clip may need to be pressed upward to seat into its locked position. - Page 16 Sure-Fi Analog Bridge Figure 4: The top screw is shown mounted through the DIN clip to the wall: Figure 5: The bottom screw is shown mounted through the bottom DIN clip to the wall: www.GateOpenerSafety.com | (800) 878-7829 | Sales@GateOpenerSafety.com...
-
Page 17: Troubleshooting And Manually Testing The Relays
Sure-Fi Analog Bridge Troubleshooting Testing Range and RF communications: Press and release quickly the ‘Test’ button on one of the units and observe the six Signal Strength LEDs. If any of the blue LED 1 through LED 6 lights up momentarily then the transmission between the two units was successful. -
Page 18: Sure-Fi App, Downloading, Installing, Connecting
Sure-Fi Analog Bridge Sure-Fi App The Sure-Fi App for iOS and Android allows for adjusting settings, updating firmware, as well as for some diagnostics and troubleshooting information. The App is continually being updated to provide for more information and features and to improve its ease of use. To download, search for ‘Sure-Fi’ and then download and install. -
Page 19: Sure-Fi App: Firmware Updating
Sure-Fi Analog Bridge Using the Sure-Fi App Connecting: The Sure-Fi App uses the Bluetooth on the user’s phone to connect to the Analog Bridge’s onboard Bluetooth interface. To use the App, be sure that the unit is powered ON, then open the App, then scan the QR code that is on the unit next the ‘TEST’... -
Page 20: Fcc And Industry Canada Regulatory Statements
Sure-Fi Analog Bridge FCC and Industry Canada Regulatory Statements This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 21: Warranty
Sure-Fi Analog Bridge FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Important Note: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
