Topp Music Gear RT-DRIVE DLM808 User Manual

Audio matrix processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RT-DRIVE
DLM808
DIGITAL PROCESSOR
AUDIO MATRIX PROCESSOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT-DRIVE DLM808 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Topp Music Gear RT-DRIVE DLM808

Summary of Contents for Topp Music Gear RT-DRIVE DLM808

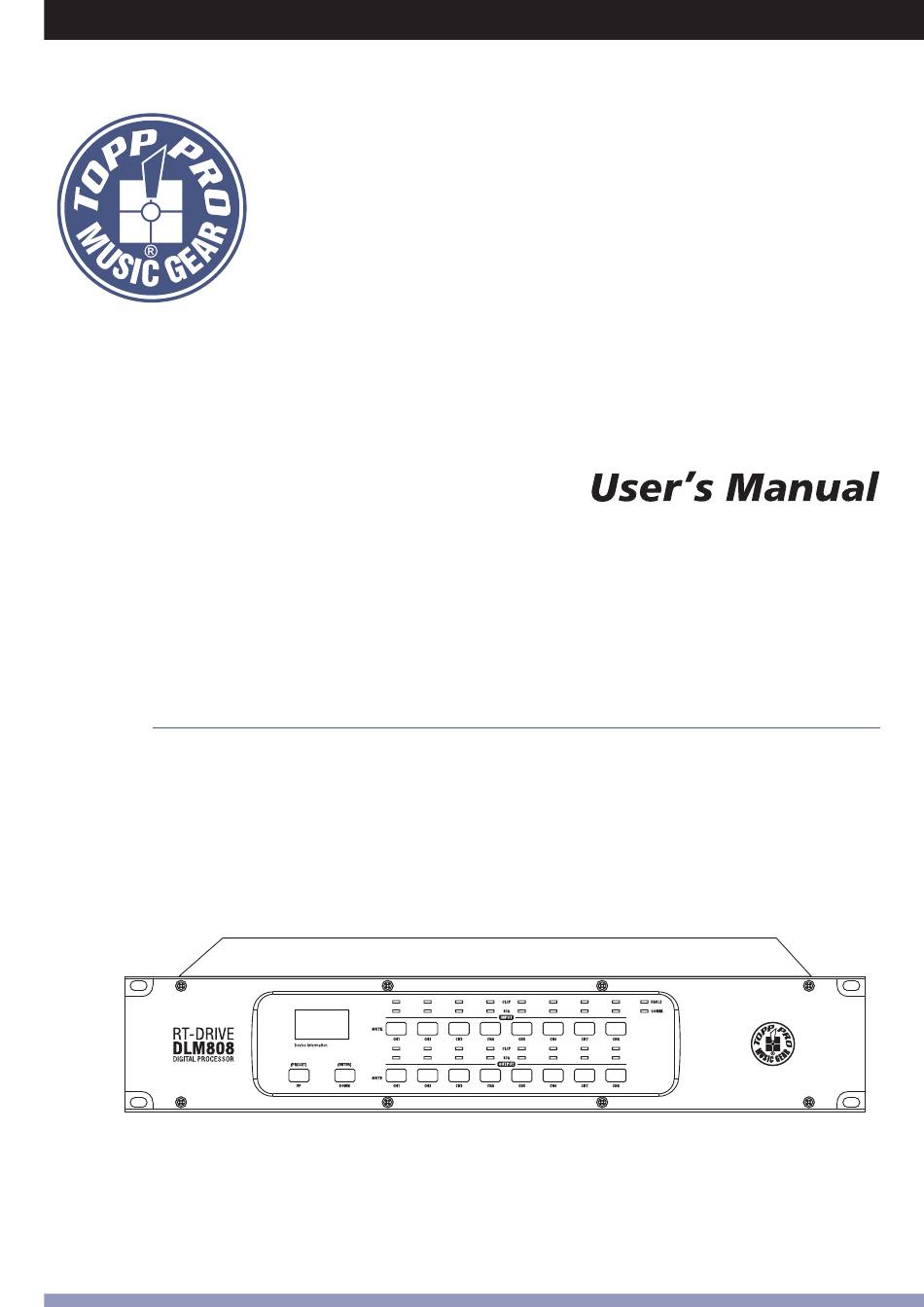

  • Page 1 RT-DRIVE DLM808 DIGITAL PROCESSOR AUDIO MATRIX PROCESSOR...

  • Page 3: Table Of Contents

    1. Introduction 2. Features 3. Usefull Data 4. Function Buttons and LED Indicators 5. Rear Panel 6. DSP Control 1. Configuration of IP Address 2. Configuration of Device Connection on Initial Page 3. Input DSP Channel 4. MATRIX 5. Output DSP Channel 6.

  • Page 4: Introduction

    Introduction Thank you for choosing TOPP PRO. The new TOPP PRO MUSIC GEAR RT-DRIVE DLM808 is an audio matrix processor, with 8 input and 8 output channels, with high-definition LCD to display current status at real time, with network port to expand network devices. It is available for large-scale place, such as theater, broadcast hall, gymnasium and conference center and so on.

  • Page 5: Function Buttons And Led Indicators

    Function Buttons and LED Indicators 1. LCD Screen Display device information, such as device name, port number, preset etc. 1) Initial page (1) Device name (2) Current preset (3) Current release version (4) Current ID, when connecting with device, the ID can be obtained automatically. (5) This image means the PC isn’t connecting with DLM808;...
  • Page 6 Function Buttons and LED Indicators - ENTER. Function as following 1) Load Preset Click UP/DOWN button to select preset, then press the “ENTER” button for about 3 seconds to recall the selected preset. After recalling successfully, the screen will display “Load OK”. 2) Exit from Preset List Page When the selected preset is empty, press ENTER for 3 seconds, no preset to load, the system will exit from current page and return back to initial page.

  • Page 7: Rear Panel

    Rear Panel Rear Panel 8. MIC Input Port1~8 3 poles XLR input. These ports are used for connecting input device of analog microphone or line input devices. Please be sure that MIC input port supports phantom power. 9. XLR Output Port 1~8 These ports are used for connecting analog line output device, such as Amplifier and Speaker.
  • Page 8 Rear Panel Byte 0:Mixer Input channel 1 Byte 1:Mixer Input channel 2 Byte 2:Mixer Input channel 3 … Device output the Output 0x01 0x20 0x03 0x0A (1…8) Byte 8:Mixer Input channel 8 0x40 Mixer status Byte 9:Mixer Digital Input 1 Byte 10:Mixer Digital Input 2 …...

  • Page 9: Dsp Control

    DSP Control DLM808 can connect with PC by internet port on router. After successfully connected, please click the file named SystemEditor on PC, you can see initial page as below picture shows, which can set connection of each device. 1. Configuration of IP Address When connect DLM808 with PC by internet port on router: Before connect devices on software control page, please set IP address of DLM808 and router first, below gives steps(pay...

  • Page 10: Input Dsp Channel

    DSP Control 3. Input DSP Channel 1). Device Data After connecting PC with DLM808 and communication right, here you can see information about current channel, device name, ID number etc. If Connect Status icon is green, means communication is right; While off means communication is fault.
  • Page 11 DSP Control - Release Click the control to set the amount of time for the gate to go from open to fully close. It can be set from 0.01 to 1 second. Note: A fast release abruptly cuts off the sound once it has fallen below the threshold, A slower release smoothly changes from open to closed, much like a slow fade out.
  • Page 12 DSP Control 4). Compressor In this area, you can adjust parameter of compressor. Compressor will compress signal that higher than threshold with specified ratio, then output it. The curve in coordinate will change with parameter’s change. -Threshold Click the control to set the compressor threshold for selected channel. If amplitude of an audio signal exceeds a certain threshold, the compressor will reduce the level of this signal with specified ratio;...

  • Page 13: Matrix

    DSP Control 4. MATRIX 1). Assign of input and output channels In this area, there are many small blocks, click one block, its background turns green, audio signal flow from left input channel to top output channel; while the signal won’t go through any channel if it is not active.

  • Page 14: Output Dsp Channel

    DSP Control 2). Input Channel Parameter Control Please refer to section 3 Input DSP Channel for details about this area. 3). Output Channel Parameter Control Please refer to section 3 Input DSP Channel for details about this area. 5. Output DSP Channel As you can see, compared with input DSP channel, this page only remove the Gate/EXP function, please refer to section 3 Input DSP Channel for details about its function.

  • Page 15: Save/Load/Copy

    DSP Control 6. Save/Load/Copy 1). Preset List The text area shows preset list that have been saved, select a preset, then click Load button to load the selected preset to corresponding control. 2). Save/Load/Delete/Recall When use this function, please pay attention the switch of Device and Local PC first. If Device is selected, Save and Load buttons are not enabled, which means you can not save or load presets from Device to PC.

  • Page 16: System

    DSP Control 7. System 1). Reset Factory Click this button to reset all setting parameters to default. 2). Change device name Click this button to change current device name in the dialog that pops-up. 3). Input/Output Channel Parameter Control Please refer to section 3 Input DSP Channel for details about this area.

  • Page 17: Web Configuration Of Lan Module

    Web Configuration of LAN Module Web Configuration of LAN Module 1. Search IP address of LAN module by PC software. 2. Open the browser on PC , input IP that searched in above step to enter the configuration web site. Default password:system Device IP Below pictures show the configuration and review for port number and Baud rate.

  • Page 18: Hookup Diagram

    Hookup Diagram...

  • Page 19: Block Diagram

    Block Diagram...

  • Page 20: Technical Information

    Technical information Microphone input Electronically balanced Frequency Response to Main Output 20Hz~20KHz at 0dBu ±1dB Distortion(THD&N) to Main Output <0.01% at 0dBu 1KHz SNR(Signal to Noise Ratio) 110dB Maximum Input Level +20dBu AUX1~8 Outputs Maximum Output Level +20dBu System Crosstalk Input to Output -87dBu Adjacent Channels...

  • Page 21: Guarantee

    Guarantee...
  • Page 25 8. DIAGRAMA DE CONEXIONES 9. DIAGRAMA DE BLOQUES 12. NOTAS...
  • Page 44 NF04784-1.2...
