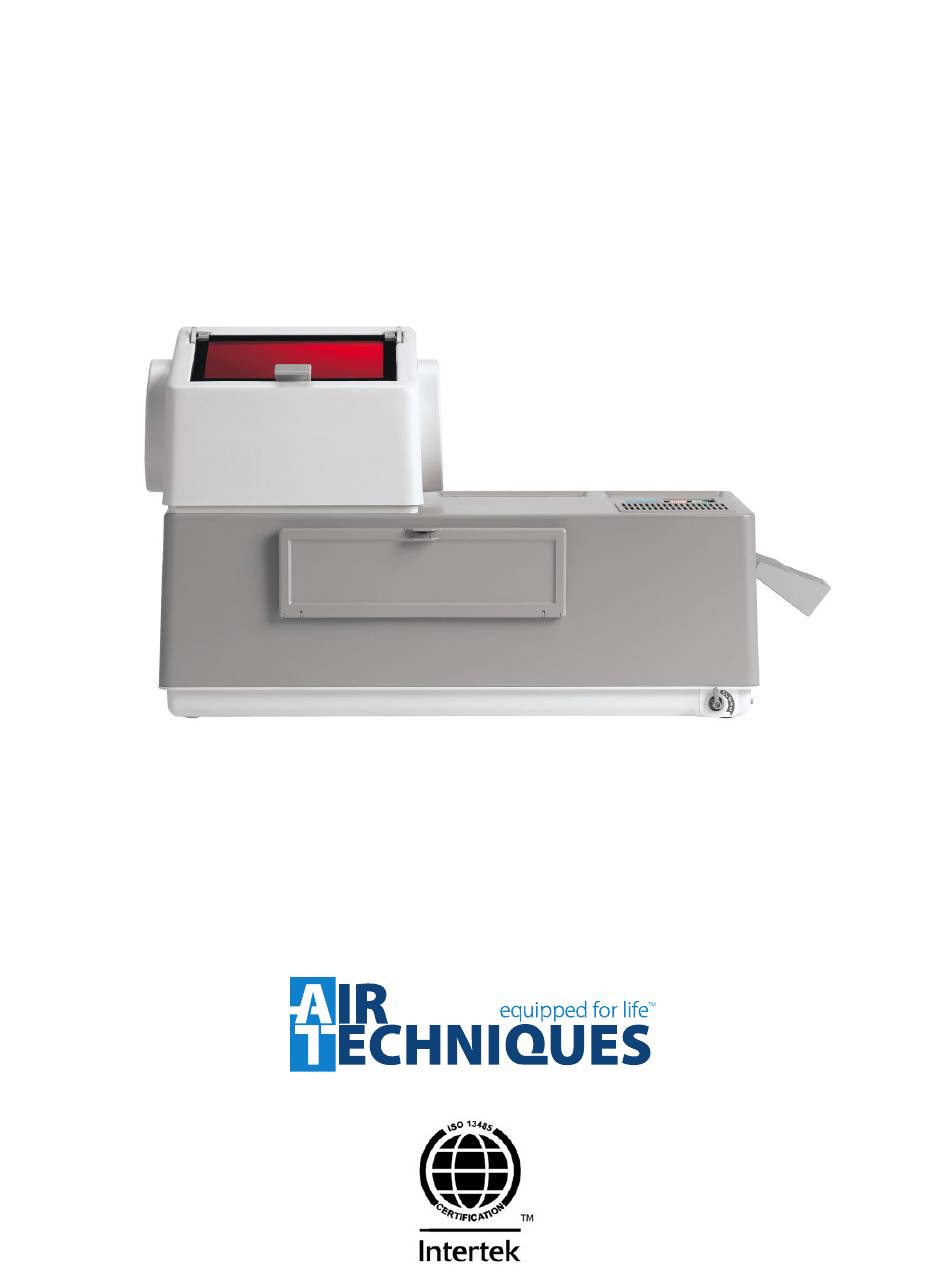

- Page 1 Peri-Pro Intra-Oral Film ® Duplicator/Daylight Loader Operating Instructions...
- Page 2 Duplicates size 0, I or 2 intraoral radiographs onto size 2 duplicating film. Before using the Film Duplicator/Daylight Loader, be sure to read and understand these instructions thoroughly. The Peri-Pro Instruction Manual should also be reviewed prior to processing film.
- Page 3 2. Close view glass 3. Insert hands through cuffs and open Duplicator Door 4. Separate Retainer Plate from Duplicator Door and lift the plate up to anchor it open. This provides access to the Duplicating Grid Page 2 Air Techniques, Inc.
- Page 4 6. On each duplicating film place an original, size 0,1 or 2 radiograph. Orient the original so that the concave side of the embossed dot aligns with and nests with the pin dot projection of the duplicating film. Air Techniques, Inc. Page 3...
- Page 5 10. Remove the duplicating film from the Duplicating Grid and process through the Peri- Pro in the usual manner. 11. The original radiographs may be removed from the Daylight Loader after the duplicates have dropped into the Peri-Pro. Page 4 Air Techniques, Inc.
- Page 6 SECTIO N 2: MAINTE NAN CE Always unplug the Duplicator from the electrical outlet prior to performing any main- tenance. It is recommended that you remove the cover from the Peri-Pro to facilitate maintenance. Bulb Replacement 1. Open Daylight Loader view glass.
-
Page 7: Sect Ion 3: Tro Uble Sh O O Ting
Daylight Loader. (Rotate screw counter-clockwise to reduce exposure time). Light fog 3b Use care not to expose undeveloped duplicating films to room light Original radiographs are 3c Check technique factors light. when x-ray exposure is made. Page 6 Air Techniques, Inc. - Page 8 Make sure door is closed tight enough to engage both latches and to acti- vate light source Bulbs burnt out. Replace bulbs. (See instructions page 5.) Printed circuit board. Replace Printed Circuit Board and Reflector Assembly. Air Techniques, Inc. Page 7...
- Page 9 Duplicator Door Assembly 92750 PC Board and Reflector Assembly 92740 Hinge Pin, Left 90711 Hinge Pin, Right 90712 Felt Gasket 90713 Hinge Socket 90716 Cuff Assembly 90730 View Glass Assembly (Amber) 90720 View Glass Assembly (Red) 90780 Page 8 Air Techniques, Inc.
- Page 10 NO TE S Air Techniques, Inc. Page 9...
- Page 11 For over 50 years, Air Techniques has been a leading innovator and manufacturer of dental products. Our priority is ensuring complete satisfaction by manufacturing reliable products and providing excellent customer and technical support. Whether the need is digital imaging, utility room equipment or merchandise, Air Techniques can provide the solution via our network of authorized professional dealers.
