Summary of Contents for FONESTAR VS-100RF

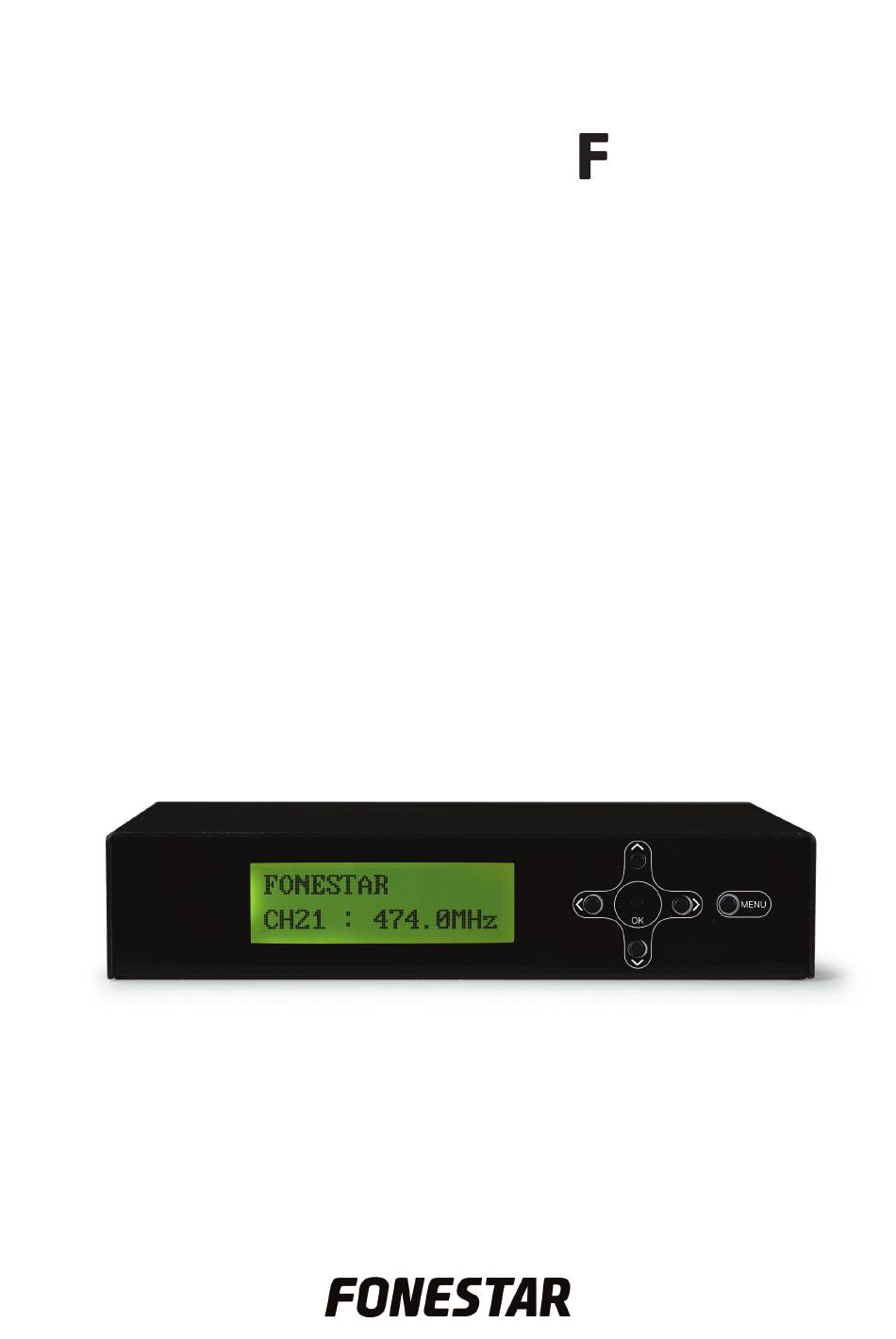

- Page 1 VS-100R FULL HD HDMI DVB-T MODULATOR INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
-
Page 4: Controls And Functions
DESCRIPTION - Converts a HDMI signal into a DVB-T signal that is added to the rest of the TDT channels. - Full HD DVB-T output resolution 1080p. - DVB-T modulation in VHF and UHF channels. - Allows a HDMI signal to be distributed to several televisions via the aerial cable. CONTROLS AND FUNCTIONS Information display and navigation through the configuration menu. - Page 5 POINT-TO-MULTIPOINT CONNECTION MULTIPOINT-TO-MULTIPOINT CONNECTION CONFIGURATIONS MENU Pressing the MENU button we have the following options: - Stream 1) Service Name - Modulator 1) Country 2) Channel - System 1) Version 2) Reset - 5 -...
- Page 6 SERVICE NAME SELECTION - Press the MENU button and then the OK button. - Select “Stream” in the menu using the up and down navigation arrows and press OK. - Select “Service Name” using the up and down navigation arrows and press OK. - Change the letters using the up and down navigation arrows.
-
Page 7: Technical Specifications
Channel 70 does not apply in France. Channels 5 to 12 and 70 do not apply in the United Kingdom. TECHNICAL SPECIFICATIONS VS-100RF CHARACTERISTICS Full HD HDMI DVB-T modulator. Converts a HDMI signal into a DVB-T signal that is added to the rest of the digital TV channels. - Page 8 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
