Staffs Fitness M1 Attack User Manual

Hide thumbs

Advertisement

Table of Contents

01538 387960
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1 Attack and is the answer not in the manual?

Questions and answers

Related Manuals for Staffs Fitness M1 Attack

Summary of Contents for Staffs Fitness M1 Attack

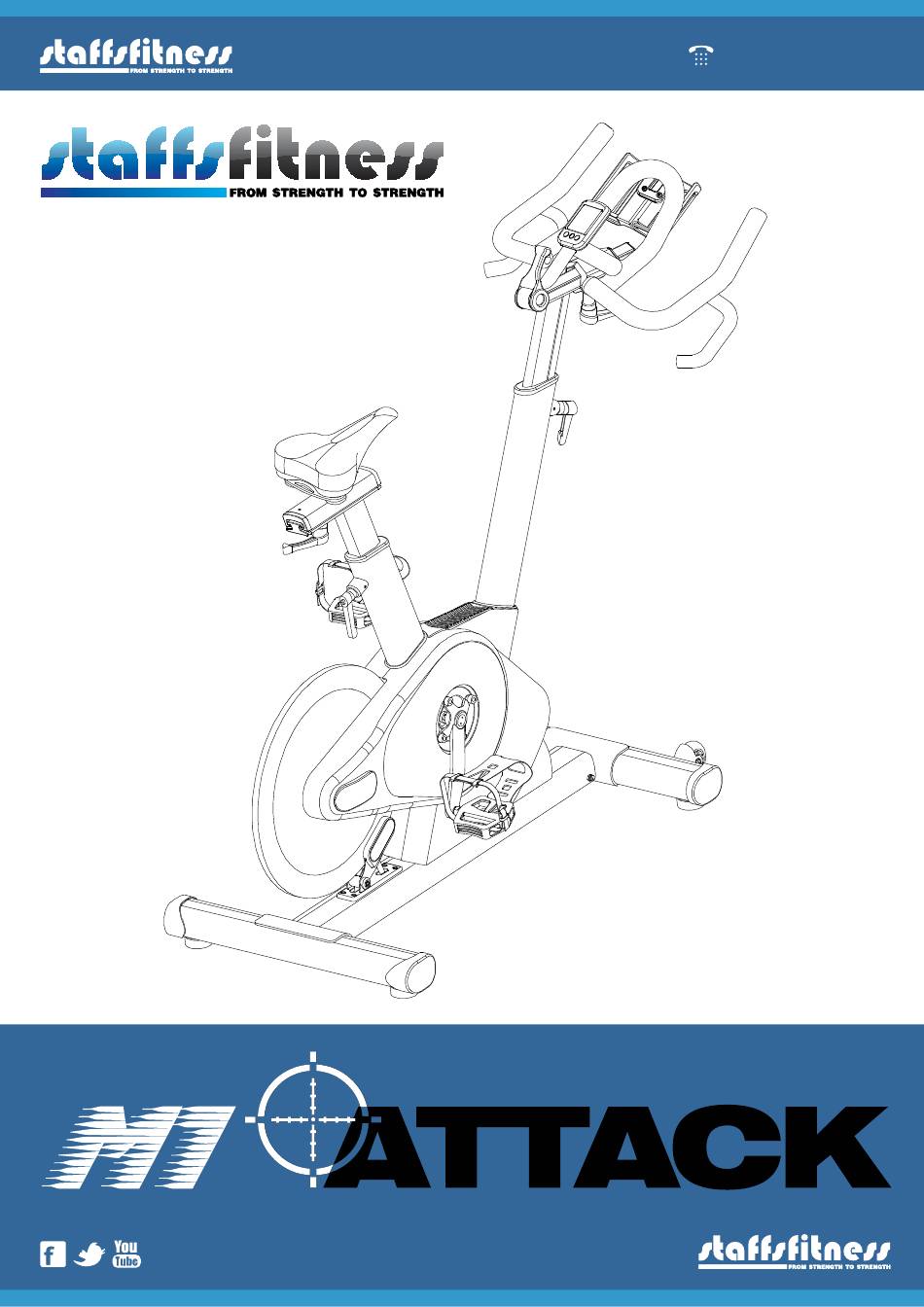

  • Page 1 01538 387960 USER MANUAL...

  • Page 2: Important Safety Instructions

    01538 387960 USER MANUAL IMPORTANT SAFETY INSTRUCTIONS PLEASE SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS EXERCISE EQUIPMENT. Keep children off your bike at all times. When the bike is in use, young children and pets should be kept at least 10 feet away. Use this bike only for its intended use as described in the manual.

  • Page 3: Instructions For Use

    01538 387960 INSTRUCTIONS FOR USE The M1 Attack bike is designed to be used as a group cycle in fitness studios and health clubs. It has a fixed driven flywheel and should only be used under professional supervision. Installation – it is important that the M1 Attack bike is correctly assembled and we recommend that installation and assembly be carried out by suitably qualified personnel.
  • Page 4 01538 387960 ASSEMBLY DIAGRAMS...

  • Page 5: Assembly Step

    01538 387960 STEP 1 ASSEMBLY Step 1. (foot) Attach the front foot (7) to the frame using the bolt (3) and washer (4). STEP 2 Step 2. (foot) Attach the rear foot (2) to the frame using the bolt (3) and washer (4).
  • Page 6 01538 387960 Step 4. & 5. (handlebar & stem) and Console Assembly Insert stem into frame main tube then adjust handlebar stem (16) to a proper position then using lock lever (21) to fixed. Open safety screw (73) on the stem sliding tube then insert handlebar (11) onto stem's sliding tube, move handlebar forward or backward until at a proper position then use sliding tube's lock lever (21) to fix it and screw back the safety screw (73).
  • Page 7 01538 387960 Step 6. & 7. (saddle & seat post) Insert seat post (32) into frame's seat tube and move upward or downward until at a proper position then use stem lock lever (21) to fix it. Assembly saddle (23) on saddle top slider (30), sliding saddle in forward or backward until at a proper position then use lock lever (21) to fix it.
