Summary of Contents for ZHYQ PD9001
- Page 1 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. ZHYQ Digital Controller Operation Manual PD9001 Tel: 86-21-51691919 Fax:86-21-67755185 www.zhyqsensor.com info@zhyqsensor.com...
- Page 2 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. 1. Functional and Technical Index PD9001 is PID intelligent pressure controller integrate a number of international advanced electronic & Single-chip computer technology ,meanwhile with high cost performance and adaptability of the fluctuate conditions of power grid can completely replace the same imported high-grade pressure controllers or controllers overseas.

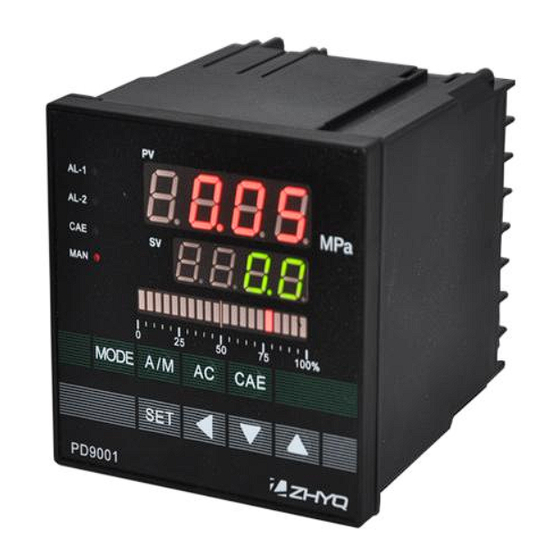

- Page 3 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. 2.2 ) Panel & buttons instruction a) PV display window: 1. set status: parameter code display settings 2. measuring status: display real-time pressure value b) SV display window: 1. set status: display setting values 2. measuring status: display controller pressure value c) MPa: pressure unit d) 0-100% : output power display bar...
- Page 4 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. 2.4 ) Wiring terminals diagram instruction 2.4.1) transducer input ( mV/V) Function ( transducer wiring diagram) terminal terminal Function 5pins 6pins S+ ( blue ) S+ ( blue ) AL-2 relay common (C) E+ ( red) E+ ( red) AL-2 relay Normal Open (NO) S –...
- Page 5 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. 3. Parameter table instruction Symbol Name Setting Range Explain Initial value Fast setting state Setting value 1～9999 pressure control target value setting random Proportional Band 0.1～99.9 PID parameter : P 60.0 Integral Time 0.0～99.9 PID parameter : I 10.0 Differential Time 0.0～99.9...
- Page 6 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. 0001 0001: last one digital display : 0-9 Pressure division value 0002 0002: last one digital display :even 0001 0005: last one digital display : 0 、5 0005 0: fast adjust type FUCT fuzzy control type 0、1 1: amplitude adjust type 0: parameters are not locked the...
- Page 7 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. "PV" should be show 80% of full pressure range . For example: the current “PV” shows "00.00", full pressure range set to “10.00” Press "CAE", the "PV" shows "8.00". The functional role : if "PV" shows deviation is too much , the instrument need to calibration; If “PV”...
- Page 8 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. 4.10) Integral time parameter “I” settings In working state, press the "SET" three times , "PV" shows " I "; Press "<" to adjust "SV" Numbers flashing, flashing a is modified; press " ∧ " or "∨" adjust the flashing value up to down ; Setup completed, press "MODE"...
- Page 9 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. 4.15) Output amplitude low limited value settings In working state, press the "SET" once ,” PV” shows “ SV ” , then loosen the button Press “ SET “ again for 5 seconds , it will enter into output amplitude high limited value setting , “ PV “...
- Page 10 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. 4.18) zero/ span value settings . This operation will cause the collect data is not accurate, please strictly according to the following instructions: Make sure the transducer connection is correct, and the current for no pressure status ; In working state, press the "SET"...
- Page 11 Shanghai Zhaohui Pressure Apparatus Co.,Ltd. “PV” collect data AL-1 NC terminal AL-1 NO terminal AL-1 indicator More than 5.20 open close light Between 4.8 and 5.2 maintain the previous state Less than 4.8 close open dark Example 2 : if setting the AL-1 as “5.00 “ , setting the SEL1 as “LJ” , setting the HC-1 as “ 0.20 “ . In working state, AL-1 relay working status as following : “PV”...
-
Page 12: Safety Warning
Shanghai Zhaohui Pressure Apparatus Co.,Ltd. " or "∨" to adjust “ SV “ value . press " ∧ Setup completed, press "MODE" button to return to work, or press the "SET" button enter into the fuzzy control type settings . 4.24 ) the fuzzy control type settings . - Page 13 Power Supply Alarm Other requirement (bar) PD9001 Example: PD9001-350BAR-4-20mA-0-10V-220V-2 7. ZHYQ contacts : Company Name: Shanghai Zhaohui Pressure Apparatus Co.,Ltd. Address : 5-6F No.8 Building No.115 ,Lane 1276 Nanle Road Songjiang District Shanghai 201600 China Tel: 86-21-51691919 Fax: 86-21-67755185 Email: info@zhyqsensor.com...
