Summary of Contents for Biocare Nuancer SR-III

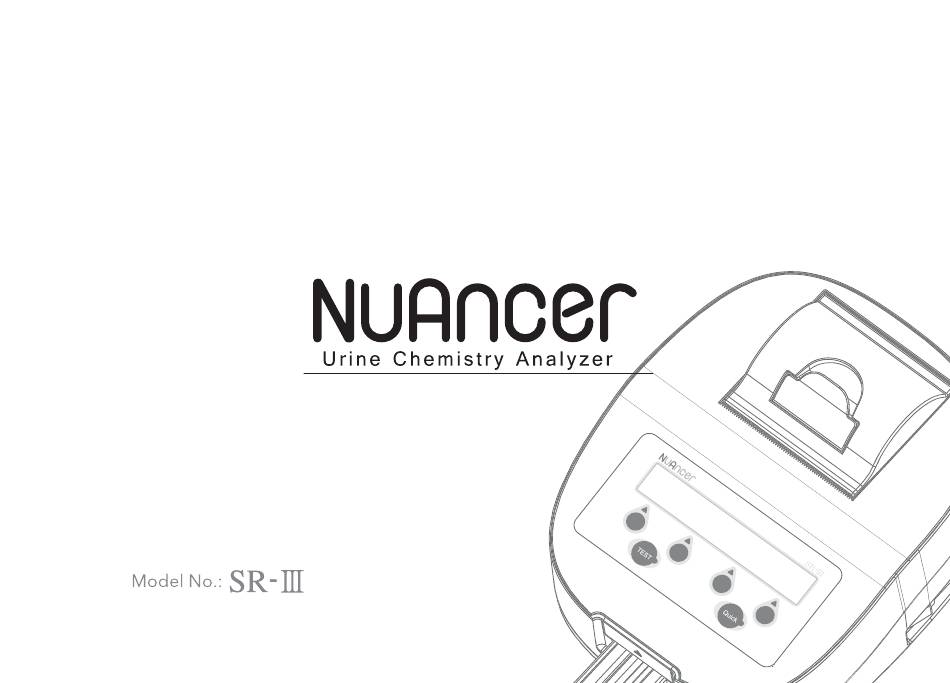

- Page 1 User Manual...
-
Page 3: Table Of Contents
Table of Contents Chapter 1. Preface .............................1 Chapter 2. Introduction ..........................2 Introduction of Use ......................................2 Rationale ..........................................2 Chapter 3. Packaging and Content ......................3 3.1 Packaging ......................................... 3 3.2 Content ..........................................4 Chapter 4. Preparation of Test Samples and Strips ................5 4.1 Preparation of urine samples ................................... - Page 4 7.2 Print history report from the memory drive ..........................13 Chapter 8. Maintenance ..........................14 8.1 Maintenance .........................................14 8.2. Procedure........................................14 Chapter 9. Other Settings..........................15 9.1 Date setting .........................................15 9.2 Time setting .........................................15 9.3 Automatic data transfer setting ................................15 9.4 Display of software version ...................................15 Chapter 10.
-
Page 5: Chapter 1. Preface
BioCare service personnel. (Contact information is listed on the last page of the Manual) ☑ Please avoid spillage of water or other liquid in the instrument. -
Page 6: Chapter 2. Introduction
Chapter 2. Introduction Introduction of Use NuAncer SR-III Urine Chemistry Analyzer is used for in-vitro diagnostic purpose by medical professionals. It can only be used in conjunction with urine chemical strips provided by BioCare(Self-Stick). The analysis includes the following parameters in the urine: leukocyte, nitrite, urobilinogen, protein, pH, occult blood, specific gravity, ketone, bilirubin and glucose &... -
Page 7: Chapter 3. Packaging And Content
Chapter 3. Packaging and Content 3.1 Packaging Each Package Contains: ① NuAncer SR-III Urine Chemistry Analyzer ② Strip Holder ③ DC Transformer and Power Cord ④ Check Strip ⑤ Thermal Printing Paper ⑥ User Manual ① ⑦ Warranty Card ②... -
Page 8: Content
3.2 Content 3.2.1 Location of Accessories ① Power port Located at the bottom of the machine to connect power ② Strip holder Carries urine strips for analysis ③ Optical white calibration bar Located at the front of the strip holder for optical calibration purpose ④... -
Page 9: Chapter 4. Preparation Of Test Samples And Strips
If the container is not clean or contains detergent or antimicrobial residues, the test result might be inaccurate. 4.2 Preparation of strips 4.2.1 For use with urine strips provided by BioCare only. Check the expiry date on the bottle. Do not use the strips if the product has expired. -
Page 10: Chapter 5. Installation
Chapter 5. Installation 5.1 Preparation 5.1.1 Connect the transformer power cord to the power port. 5.1.2 Connect the power cord to the power. 5.1.3 Turn on the switch to initiate the booting procedure. Turn on the power to enter the booting procedure until the machine is calibrated and enters the main screen. - Page 11 5.2.2 Install the printing paper. Pull out some paper and flatten it before closing the cover.
-
Page 12: Chapter 6. Operation Procedure
Chapter 6. Operation Procedure 6.1 Turn On/Off Press the power switch to turn on or off the Strip Reader III machine. Initiate the booting procedure. System Initial... End of booting procedure, entering the main #001, Strip Type:S-10L screen. Strip Feed 6.2 Initiate Analysis 6.2.1 Quick button for quick initiation of analysis. - Page 13 6.3.2 Select the type of strip Ex: S-10L. <Strip Type> S-10L S-11 S-11VET CHECK 6.3.3 TEST button Press this button and scan the patient’s medical record No. (Please refer to 6.2.2) 6.3.4 Immerse the strip in the urine sample for 1 second and remove excessive urine with a piece of tissue paper.
-
Page 14: Installation Of Barcode Reader And Scanning Of Medical Record No
6.3.10 Refer to 8.2 Cleaning the Strip Holder. 6.4 Installation of barcode reader and scanning of medical record No. 6.4.1 Install PS/2 barcode reader (to be purchased separately) Connect the PS/2 connector to the PS/2 port at the back of the machine. 6.4.2 Press TEST button to scan the patient’s medical record No. - Page 15 6.5.3 Select CHECK. <Strip Type> S-10L S-11 S-11VET CHECK 6.5.4 Take a check strip out of the container. IMPORTANT : Do not touch the surface of the check strip. A check strip contaminated by sebum may cause incorrect results. 6.5.5 Put a Check Strip in the strip holder. 6.5.6 Press Quick button to initiate CHECK STRIP analysis.
-
Page 16: Chapter 7. Interpretation Of Test Result
6.5.8 if the obtained values fall, either the instrument or the check strip may be abnormal. Use another check strip from the container to retry check measurement. If the second measurement still shows Fail, the instrument may be malfunctioning. Contact your distributor. -
Page 17: Print History Report From The Memory Drive
7.2 Print history report from the memory drive 7.2.1 Press Mem to access history #001, Strip Type:S-10L reports from memory drive. Strip Feed 7.2.2 Press Print to print the report and then Back to return to the main screen. #002 ID: 9789860158359 Print Down... -
Page 18: Chapter 8. Maintenance
Chapter 8. Maintenance 8.1 Maintenance Please clean the strip holder daily after testing. 8.2. Procedure 8.2.1 Remove the strip holder. from the machine. Wash the strip holder with detergent or alcohol and rinse with running water. Remove residual or inaccessible smudges with a cotton swab. -
Page 19: Chapter 9. Other Settings
Chapter 9. Other Settings Press SET button to enter the other 4 settings. <Setting> 9.1 Date setting Date Time Trans Next 9.1.1 Press Date button to set date. Press the button under Date to increase by a day, a <Setting> month or a year. -
Page 20: Chapter 10. Warning Message, Error Message And Troubleshooting
Chapter 10. Warning Message, Error Message and Troubleshooting 10.1 Warning Message and Troubleshooting Warning Message Possible Cause Troubleshooting Warning 1 : Strip holder missing Insert strip holder No Strip Holder Warning 2 : Incorrect loading of strip Re-test a new strip Strip position incorrect or no Strip (the strip was not placed all the way to the end of the strip holder) or no strip... -
Page 21: Error Message And Troubleshooting
1. Reboot Motor Error Motor malfunction 2. Front sensor malfunction 2. If the message persists, contact the 3. Gear malfunction distributor or BioCare service personnel ERR-2 1. LED malfunction 1. Reboot LED Error Booting LED calibration error 2. Light sensor malfunction 2. -
Page 22: Chapter 11. Specifications
Chapter 11. Specifications System Semi-automatic Method Reflectance photometer Test Sample Urine Test Items urobilinogen, protein, bilirubin, leukocytes, specific gravity, ketone, nitrite, glucose, occult blood, pH, ascorbic acid (test items vary with the type of strips) System Display 24 character * 2 line backlight LCD Detection Photodiode light sensor and a pair of white LED Throughput... - Page 23 Note : 1. Disposal : At the end of its usage life, the analyzer and its accessories may be returned to BioCare Co. for safe disposal. The shipping address is: BioCare Co., 4F, No.12, Lane 5, Sec. 2, Nanshan Rd., Luzhu Dist.,Taoyuan City 33852, Taiwan.
-
Page 24: Chapter 12.Symbols Information
Chapter 12.Symbols Information The following symbols are associated with the SR-III. Symbol Referent Symbol Referent Manufacturer In vitro diagnostic medical device Authorised representative in Serial number the European Community Consult instructions for use CE mark Humidity limitation Temperature limitation Collection for electrical and Use by electronic equipment Caution, consult accompanying... -
Page 25: Chapter 13. Warranty Statement
BioCare’s duty or responsibility under this guarantee does not include: incorrect use or application of product or use of components or parts not approved by BioCare; or direct, indirect or inevitable damages due to maintenance performed by individuals not authorized by BioCare; or any transportation or other expenses or responsibilities due to delay. -
Page 26: Chapter 14. Service/Overhaul
You should also provide the model, serial No. and brief reason for the return/overhaul. 2. Calculation of shipment fee : The customer is responsible for the shipping costs to and from BioCare (including the Customs fees). - Page 28 MedNet GmbH BioCare Corporation Borkstrasse 10,48163 Muenster, Germany 4F., No.12, Ln. 5, Sec. 2, Nanshan Rd., Luzhu Dist., Taoyuan City 33852, Taiwan 311-0020200-100 A TEL: +886-3-261-6678 FAX: +886-3-261-6679 2018.12 Rev.1.0 www.biocare.com.tw...
