A/C Recovery Recycling Recharge Machine

EKM pro/3000

Service Manual

Table of Contents

Need help?

Do you have a question about the EKM PRO/3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for ELCI EKM PRO/3000

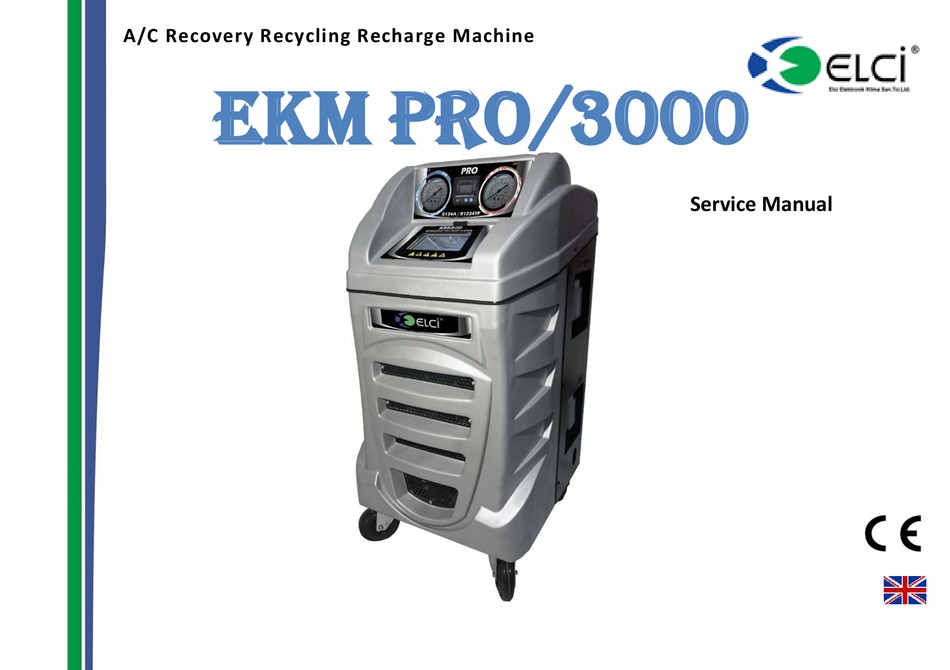

Page 1 A/C Recovery Recycling Recharge Machine EKM pro/3000 Service Manual...
Page 2: Table Of Contents
Contents Technical Specifications ..4 Scale zeroing ....... 29 Not able to fill ......50 Safety Warning ....... 5 New Oil calibrations.... 30 Don’t vacuuming ......51 Diagnosis ........ 11 New Oil zeroing ....32 Vacuum pump not work ... 52 Setting ........
Page 3: Technical Specifications
Technical Specifications Model ............EKM PRO Refrigerant type ........R134a, R1234yf Power supply ........... 220 V ±10% / 50Hz Display ............7" touch screen, 1024x600 resolution Storage tank capacity ......15 kg (optional 25 Scale resolution........±5 gr for refrigerant, ±1 gr for oils Compressor ..........
Page 4: Safety Warning
Safety warning  Read this manual carefully and understand all the procedures outlines in this manual before operating the unit. Failure to follow these procedures could result in personal injury or property damage.  Allow only qualified personnel to operate this unit. The operator must have basic knowledge of air conditioning and refrigeration systems, including potential hazards associated with the handling of refrigerants and systems under high pressure.
Page 5 Safety warning Makinede Kullanılan Güvenlik Etiketlerinin Açıklaması Be careful. Wear safety goggles. Grounding protection. Risk of electric shock. Danger of explosion. Read the instructions carefully . www.elcielektronik.com 5/55...
Page 6 Safety warning UYARILAR: Kişisel yaralanmaları önlemek için, ALLOW ONLY QUALIFIED PERSONNEL TO OPERATE THE MACHINE. Before operating the machine, read and follow the instructions and warnings in this manual. The operator must be familiar with air conditioning and refrigeration systems, refrigerants, and the dangers of pressurized components.
Page 7 Safety warning DO NOT BREATHE REFRIGERANT AND LUBRICANT VAPOR OR MIST. Refrigerant reduces the oxygen available for breathing, resulting in drowsiness and dizziness. Exposure to high concentrations of refrigerant causes asphyxiation, injury to the eyes, nose, throat, and lungs, and can affect the central nervous system.
Page 8 Safety warning DO NOT USE COMPRESSED AIR TO PRESSURE TEST OR LEAK TEST THE MACHINE OR VEHICLE AIR CONDITIONING SYSTEM. Mixtures of air and refrigerant can be combustible at elevated pressures. These mixtures are potentially dangerous and may result in fire or explosion causing personal injury and / or property damage..
Page 9: Diagnosis
Diagnosis Service Center Menu Options These are the Service Options at the time of printing this service manual. Some options may be added or deleted in future circuit board and software updates and revisions. Do not change the default settings unless they are removed from the factory. Otherwise the unit may not work properly.
Page 10: Setting
Setting  Select the setting menu. You need to change the tablet language to change the language of program. If you select the languages that are not loaded in the program of the gas filling device from the tablet, the gas filling program will automatically be in Turkish. If the gas filling device is not in the program, you need to contact the manufacturer.
Page 11 Setting  Select the gas fill mode menu. 1. High Pressure. 2. Low + High Pressure. 3. Automatic. The user can change it according to his request. You can do whatever gas filling process you want. www.elcielektronik.com 11/55...
Page 12: Owner Information
Setting  Select the Owner Information In this option, the information of the user company is available. Company Name Company Official Company Address Company Phone  Software Update. By connecting to the Internet, new software versions according to the model of your device will be found in this section.
Page 13: Database Update
Setting  Database Update. Databank updates must be made by the manufacturer once a year. In order to perform the update, a password is obtained from the vendor. In order to be able to contact the vendor, you need to send the eight-digit code shown on the screen to the vendor. Updating will be performed by typing the code from blank to the empty field.
Page 14: Send Error Log
Setting  Send Error Log. Select the Send Error Log. By connecting to the internet, user can send the error which is occurred in the device by selecting (SEND ERROR MESSAGE) www.elcielektronik.com 14/55...
Page 15: Add Users
Add Users Turn on the machine and allow it to run through the boot sequence. Select the support menu. 3. Select service nemu. www.elcielektronik.com 15/55...
Page 16 Add Users 4. Select Users. it locates in the lowest part of the list . 5. Select ADD USERS. 6. Create a custom username and password for you. The admin user's password is 5588. www.elcielektronik.com 16/55...
Page 17: Service
Service The following four steps are required to start all operations on the service menu. 1. Select Support menu. Select service nemu. www.elcielektronik.com 17/55...
Page 18 Service Select calibration menu. Select a password-protected command and enter User password. Enter the username and password you created earlier,if you did not created it enter the admin password which is 5588. www.elcielektronik.com 18/55...
Page 19: Calibrations
Calibrations  Vacuum calibration. Select Vacuum calibration menu Select the OK menu after unscrewing the service hoses www.elcielektronik.com 19/55...
Page 20 Calibrations 3. Wait for the calibration to finish, then select OK when finished. The vacuum value displayed on the calibration screen will automatically decrease until the end of the time. The sensor will stabilize when it gets the appropriate value. If the vacuum value remains constant over time, contact the authorized service station.
Page 21: Pressure Calibrations
Calibrations  Pressure Calibration Should be made if the low pressure gauge and high pressure gauge values does not equal the pressure on the main screen on the device . 1. Attach the BLUE adapters to the end of the BLUE service hoses and close them.
Page 22: Pressure Zeroing
Calibrations 4. Enter the pressure (bar) value you see on the gauges in the pressure (bar) section of the main screen using the up and down keys. 5. By selecting okay menü the process will end.  Pressure Zeroing 1. Select Pressure zeroing menu. This can be done when there is no gas in the system 2.
Page 23: Scale Calibrations
Calibrations  Scale Calibration 1. Select Scale Calibration menu. Weight and gain values vary depending on the amount of fluid in the device. 2. Enter the reference weight by clicking on the brown square. Enter the weight clearly in grams and select the OK menu.
Page 24: Scale Zeroing
Calibrations  Scale Zeroing 1. Select Scale Zeroing menu. Do not perform this operation unless you are sure the tank is empty 2. Wait for the numbers to stabilize. 3. Select the OK menu to end the operation. www.elcielektronik.com 24/55...
Page 25: New Oil Calibrations
Calibrations  New Oil Calibration. 1. Select New Oil Calibration menu. Remove the new oil pan and start the process 2. Insert a new oil pan. You need to fill the new oil container with 250 ml of new oil and put it in place of the oil pan. www.elcielektronik.com 25/55...
Page 26: New Oil Zeroing
Calibrations  New Oil zeroing. 1. Select New Oil Zeroing menu. Make sure the new oil container is empty and replace the empty container. 2. Select the OK menu to end the operation. www.elcielektronik.com 26/55...
Page 27: Uv Oil Calibrations
Calibrations  UV Oil Calibration. 1. Select UV Oil Calibration menu. Remove UV container and start processing and UV oil is only used for leak detection. 2. Install UV oil pan. Fill the UV oil container with 250 ml of UV oil and replace the oil pan www.elcielektronik.com 27/55...
Page 28 Calibrations  UV oil calibration. 1. UV yağ sıfırlama menüsünü seçin. Make sure the UV oil container is empty and replace the empty container 2. The process is terminated automatically. www.elcielektronik.com 28/55...
Page 29: Used Oil Calibrations
Calibrations  Used Oil Calibrations. 1. Select Used Oil Calibration menu. Remove old oil pan and start machining. 2. Attach the old oil pan. Fill the old oil container with 250 ml old oil and replace the oil pan. www.elcielektronik.com 29/55...
Page 30: Used Oil Zeroing
Calibrations  Used Oil Zeroing. 1. Select Used Oil Zeroing menu . Make sure the UV oil container is empty and replace the empty container 2. The process is terminated automatically. www.elcielektronik.com 30/55...
Page 31: Valve Tests
Valve Tests Select Valve Tests menu. You can test the valve which you suspect. www.elcielektronik.com 31/55...
Page 32: Scales
Scales 1. Select Scales menu. On this screen you can learn the amount of oil and fluid in the containers. www.elcielektronik.com 32/55...
Page 33: Sensors
Sensors Select Sensors menu. Temperature ( C) = value of the gas temperature inside the tank. Basınç (bar)= value of the gas pressure inside the tank. Vakum = value of the vacuum sensor. Atm = value of atmospheric pressure. www.elcielektronik.com 33/55...
Page 34: Change Filter
Change filter 1. Select Change Filter nemu. 2. Change code. Send the number in the code section to the vendor and write the code you received from the company service in the password section. www.elcielektronik.com 34/55...
Page 35: Change Vacuum Pump Oil
Change Vacuum Pump Oil 1. Select Change Vacuum Pump Oil menu. The vacuum pump will give a warning after a total of 30 hours of operation and after a warning you can change the oil and reset it to zero www.elcielektronik.com 35/55...
Page 36: Remote
Remote Used to remotely connect to tablet. 1. Select Support menu. 3. Select Send my ID. 2. Select Remote menu. Click the E-mail menu to send from an e-mail account. www.elcielektronik.com 36/55...
Page 37 Troubleshooting  Do not Absorb Gas 1. Perform a vacuum calibration. 2. Check that the atm value and vacuum value are close/equal to each Other.  when you follow the values,if the value of Atm. İs fixed and value of vaccum is declininig,you must clean oil seperator valve.
Page 38 Troubleshooting Clean compressor oil valve. compressor oil valve gas valve 4. Clean the gas valve (close the blue valve above the tube) 5. If the problem still persists after doing the upper operations, the compressor needs to be replaced. www.elcielektronik.com 38/55...
Page 39 Troubleshooting  Do not Press Gaz 1. Check the gas in the tub before starting the pressurization process. 2. Make sure the valves on the tube are open. 3. Check that the adapters that are plugged in are open. 4. A foreign body may be stuck between the scale under the tube and the instrument floor. 5.
Page 40 Troubleshooting  Gas be out of the Tank 1. Check and clean the air release valve. Air release valve Tube blue and red hoses 2. Check the blue and red hoses and component points from the tube. www.elcielektronik.com 40/55...
Page 41: Not Able To Fill
Troubleshooting  Not able to Fill Check the Scale calibration setting and the scale tare setting.(page 13 ) Ensure that the low pressure valve on the gas cylinder is open. Check if there is gas in the tube. Test the valve. ...
Page 42: Vacuum Pump Not Work
Troubleshooting  Vacuum pump not working 1. Check the on / off button on the pump. Check the proper power supply, circuit breaker and electrical connectors for damage or corrosion. Modify or repair as needed. Connect the unit power cable directly to the power supply. Do not use extension cables. Control 220 Volts from the power card on the connector.If voltage is present, check the cable connection between the electronic card and the vacuum pump.
Page 43: Compressor Test Procedures
Troubleshooting  Compressor Test Procedures 1. Disconnect the pressure line connection. 2. Disconnect the Vacuum line connection. 3. Connect the high pressure service hose on the device to the pressure line you have disconnected from the compressor. 4. Start the compressor from the valve test menu and stop the high pressure gauge at around 20 bar and check that the high pressure gauge should not fall.
Page 44: Do Not Weigh The Load Cell
Troubleshooting  Do not weigh the load cell 1. Check the load cell socket. 2. Any object under or around the tank must not touch the tank. 3. Reset the Scale calibration.(page 27) 4. If the above steps do not solve the problem, the load cell or card needs to be changed ...
Page 45: Troubleshooting
Troubleshooting  Power Problems  The power applied to the unit must be a constant, low impedance source. It should be +10% or - 10% of the long-term balanced symbolic voltage. The limits for a 220-volt line are between 198V and 242V.
Page 46 Troubleshooting  Verify Power Plug. Make sure the outlet works. If no load is available, use a ground loop tester to verify ground polarity and grounding. Using a digital voltmeter, make sure that there is no load on the circuit, less than 0.3 V from neutral to ground, and the voltage is constant.
Page 47: Warranty
Warranty  WARRANTY TERMS 1. Warranty period is (...) years and commences on the delivery date of the product. 2. The entire product except the hoses and the adapters is warranted by our company. 3. The warranty certificates without the sales date written by the seller/dealer and stamp and signature are invalid.
Page 48 Warranty 8. The manufacturer declines any and all responsibility for damage to vehicles on which recovery/recycling and recharging are performed if said damage is the result of unskillful handling by the operator or of failure to observe the basic safety rules set forth in the instruction manual. This warranty does not cover damage arising during transportation.
Page 49 Warranty  CERTIFICATE OF WARRANTY MANUFACTURING COMPANY TITLE ELCİ ELEKTRONİK KLİMA SANAYİ VE TİCARET LTD. ŞTİ. ADDRESS İVEDİK ORGANİZE INDUSRIAL REGION WOOD WORKING SITES 1354. STREET. 1357. Qr. NO: 30 YENİMAHALLE / ANKARA / TÜRKİYE TELEPHONE +90 312 395 53 53 (PBX) +90 312 395 18 86 PRODUCT TYPE...
Page 50: Suggestion
Suggestion  Gases and oils recommended by the manufacturer; Refrigerant:  Tazetti  Solkane  AG Adge  Arkema  Honeywell  Chemours Compressor oils:  PAO compressor oil  Reniso PAG  Reniso Triton SEZ 68 POE  Reniso Triton SE 170 POE Vacuum pomp oils: ...
Page 51: About Us
About Us  COMPANY HISTORY Elci Elektronik Klima San. Tic. Ltd. Sti. It was established in Ankara in 2003 with the coming together of experienced friends in the automotive sector. started to the production of air conditioner filling and discharging devices which are missing due to AR-GE work on the machines that address the automotive sector.
Page 52 About Us 2008: Fully automatic device that can clean the air conditioning system (EKM2000SP). 2010: Virtual shopping is established (elcimarketim.com). 2011: radiator system cleaner was produced. ( RTC ) 2012: The small size gas filling and unloading device EKM A / C was developed for mobile services. 2012: Received AR-GE support from TÜBİTAK for new R1234yf gas appliance in Europe.
Page 53: Muniments
Muniments SERVICE QUALITY DOCUMENT ISO 9001:2008 www.elcielektronik.com 53/55...
Page 54 Muniments BRAND RENEWAL CERTIFICATE CE DECLARATION OF CONFORMITY www.elcielektronik.com 54/55...
Page 55 NOTE ..............
