Summary of Contents for SparTag T-75

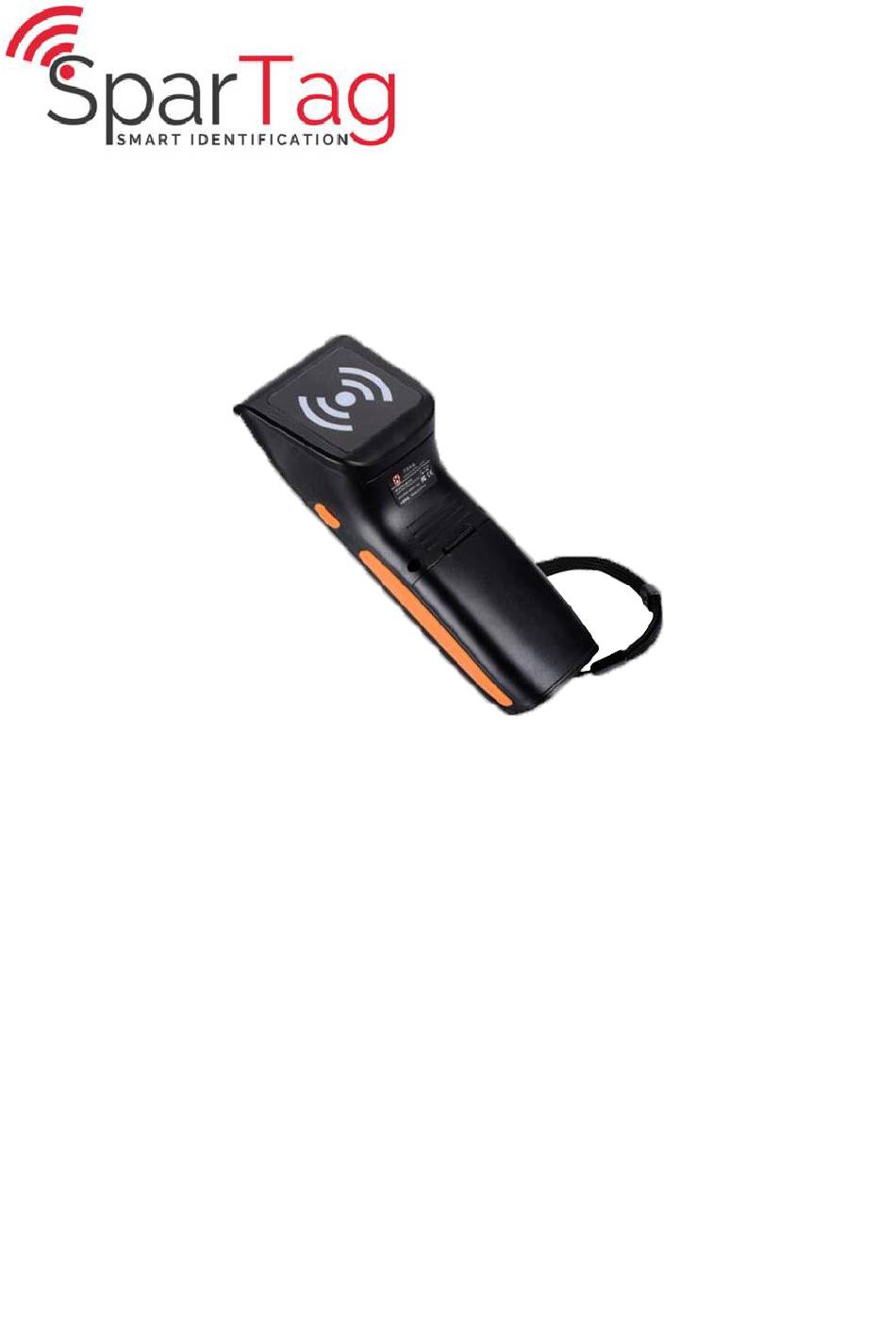

- Page 1 T-75 865-868 MHz RFID Handheld Software Operation Manual...
- Page 2 Software Operation Software Operation Manual SparTag Smart Identification 135 avenue de Paris, Issue 0.1 91300 MASSY – 18. February 2018 – Phone: +33 (0)9 80 75 06 05 Subject to alteration without prior notice. spartag-id.com E-Mail: © Copyright SparTag Web: spartag-id.com...
-
Page 3: Table Of Contents
T-75 Software Operation Contents Software Operation ..............................4 Set Up Test System ............................4 Run the test software ............................4 Serial port connection ............................4 Get time from handheld ............................ 6 Set time ................................6 Download/Erase Data From the Handheld ......................6 List handheld operation ............................. -
Page 4: Software Operation
The Windows version of the demo software needs to be run on Microsoft Windows XP or higher. Serial port connection PC and T-75 communicate by serial port RS232. User need to do initialized settings through a serial port on first operation. Select the output port, see below:... - Page 5 Click [Connect Reader] button to establish the connection. In case the operation was successful, this dialog appears. If the T-75 can’t connect to PC through the USB, or the selected serial port is wrong, the connection will fail. RFID Device...
-
Page 6: Get Time From Handheld
Software Operation Software Operation Manual Get time from handheld Click [Get Time] to get the current time from the handheld. The date and time is shown in the text box below [SetTime]: Set time Type in the desired date and time. Click [Set Time] to program it into the handheld. Download/Erase Data From the Handheld Step 1 Type in [Start Time] and [End Time] in the input boxes. -
Page 7: List Handheld Operation
T-75 Software Operation List handheld operation There are four list of handheld on storage operation: [GetName], [Delete Name], [Add Name], [Save Name] and [Delete Single Name] Add Name As below box, Fill the EPC you want (EPC hexadecimal digits need to be multiple of 4) in the input field below [List of Name] list , click [add]. - Page 8 Software Operation Software Operation Manual Delete Name Click on the list you want to delete, the list will turn blue, Press the top right of the "delete" button will remove the selected list Add Name which stored in the handheld. Click on the [Add Name] button ,will add list to handheld list.
- Page 9 T-75 Software Operation Delete the list stored in the handheld. Click on the [Delete List ] button, remove all data of list. If delete success, popup the following clew box. Notes • Delete, save operation is only effective for the data in the list, will not delete the handheld data.
-
Page 10: Exit Program
Software Operation Software Operation Manual Exit Program Step 1 Click [Disconnect] button to disconnect the connection with the T-75: Step 2 Click [Exit] to exit the demo software. Page 10 of 18 RFID Device... -
Page 11: Usb Connection
T-75 USB connection USB connection This section describes how T-75 connect PC via USB. Before connect the handheld and PC, the first installation CD-ROM driver software, including: “BasicUSB_6124.exe” and “ NET Framework 3.5”. Software should be installed in support Microsoft Windows XP or more than The handheld must be charged more than two hours in first using, Pls make sure the battery is with fully charged. -
Page 12: Usb Drive Checkup
Test Open “User software”, double click and run“VH75 Download.exe” file. USB connection PC transfer data via USB to the T-75. Step 1 Select USB connection: Page 12 of 18... - Page 13 USB connection Step 2 Click on [connect reader]. In case the operation was successful, this dialog appears. If the T-75 can’t connect to PC through the USB, or the selected serial port is wrong, the connection will fail. RFID Device SparTag...
-
Page 14: Bluetooth Connection
Bluetooth connection Software Operation Manual Bluetooth connection This section shows how T-75 connect PC by Bluetooth. The handheld must be charged more than two hours in first using, Pls make sure the battery is with fully charged. Note: There are a variety of Bluetooth adapters in market, different Bluetooth adapter with Bluetooth device matching process is not the same. -
Page 15: Bluetooth Pairing
Bluetooth pairing Click “BT014”, choose “pair Device”, as below: Bluetooth password After Bluetooth pair there is a dialog box pop up to request input Bluetooth passkey. T-75 default Bluetooth connection passKEY is "0000” Note: The default bluetooth connection passKEY is "0000”... -
Page 16: Get Bluetooth Serial Port
Bluetooth pairing success, right-click the "BT014" icon, select “connect”- “Bluetooth Serial Port Service”, as below: At this time, the Bluetooth management tools will automatically connect with T-75 by Bluetooth adapter. The same time, the specific serial port service information in the system file shows the COM port number. As below:... -
Page 17: Bluetooth Signal Test
T-75 Bluetooth connection Bluetooth signal test Right click “BT014” icon, choose “Status”, it show Com port number and Bluetooth signal Intensity value, as below: Test Open “User software”, double click “VH75 dwnload.exe” file. RFID Device SparTag Page 17 of 18... -
Page 18: Appendix
Appendix Software Operation Manual Appendix Document Revisions Date Version Description 18. Feb 2016 First draft Page 18 of 18 RFID Device...
