Summary of Contents for Furo Systems eTura

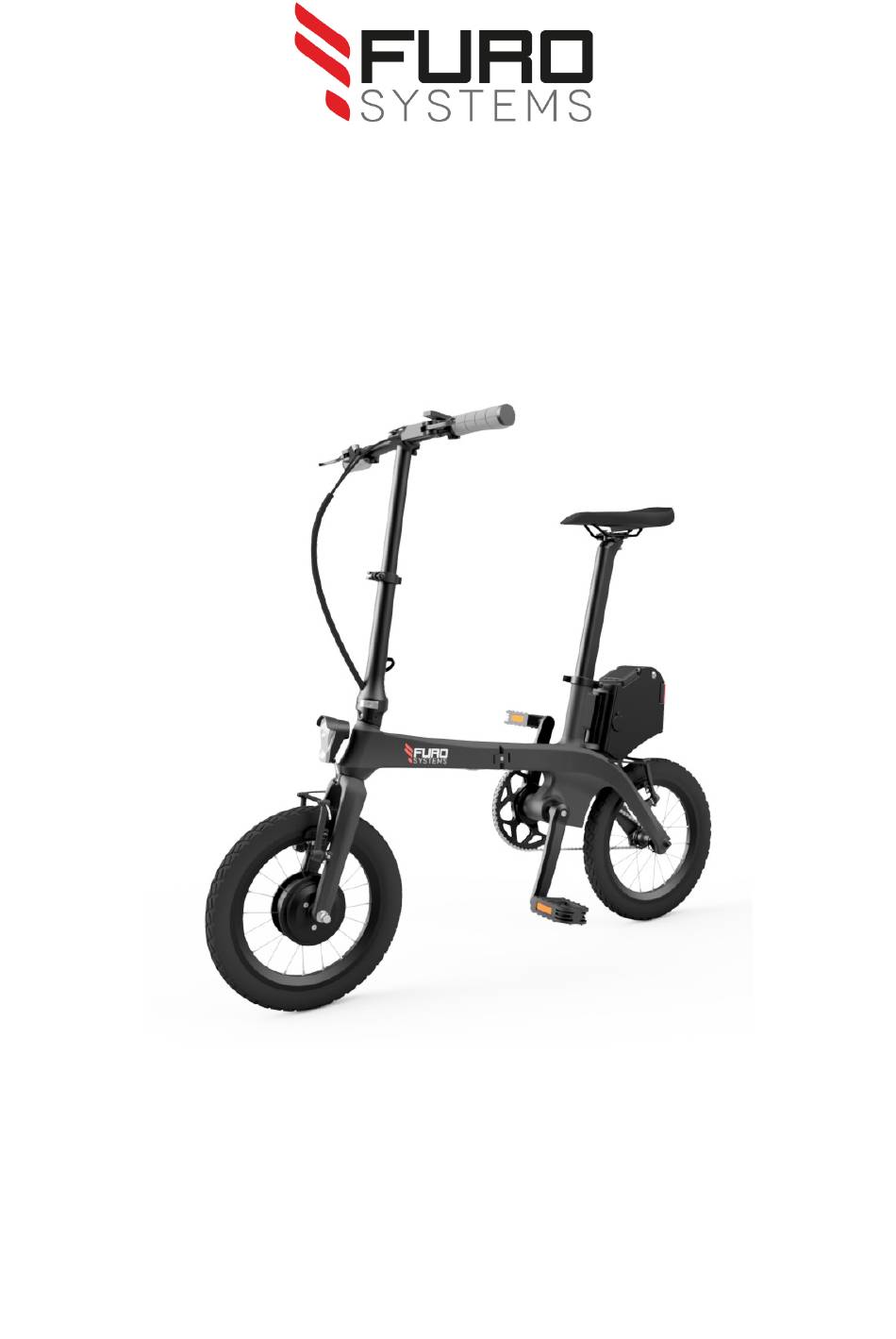

- Page 1 Owner’s Manual...
- Page 2 Your Package Contains Six Tool SET Bike Wrench Charger #2 Phillips screw driver 15 mm / 17 mm 2/3/4/5/6 mm Allen Key 36V Battery Pack with 2x Battery keys 2x Pedals USB Charging port and integrated indicators The Basics Push the power Press and hold the Select power assist button to start The...
- Page 3 Getting Your Bike Ready For Your First Ride Remove all the Unfold your eTura and Locate and unfold the packaging from your lockout the frame with steering stem new eTura the central lever Adjust the height of Slide the battery...
- Page 4 USB Charging Port Central Folding Indicator Lights Front Headlight Mechanism Key Lock All-Terrain Tires BAFANG Front motor Get a Grip On The eTura Dashboard Battery Life Indicator Speedometer Front Brake Indicators Rear Brake Mode And Power Level Select Button On-Board Computer...
-
Page 5: Technical Table
Technical Table Motor Front Hub Motor Nominal/Peak Power 200W/400W 25km/h (can be modified via computer to Pedal Assist Top Speed comply with local regulations) Range More than 45km at average pace Charge Time 4.5hrs Display Backlit LCD with controls Computer TOPOLOGY SW102.5 Standard Battery Type Lithium-Ion Samsung Cells... - Page 6 Folding Your eTura Shorten the seat post and Identify the seat post and stem steering stem. (Optional) quick release levers. Press down the red Pull the release security lock lever Fold the stem Press the unlock button Fold the eTura...
- Page 7 Using The Pre-Installed Indicator Lights Switch on the indicators by pressing You can activate the indicators using the remote on your dashboard the white button behind the battery The indicator buttons will flash red when the indicators are activated. You can hold both left and right buttons to activate the hazard lights If the indicator remote is To recharge your indicators Charge the indicators using...
-
Page 8: Charging Procedure
Charging Procedure Open the rubber Plug the charger lead into Insert the charging charging port the mains lead cover Charger light will turn red to Charger light will turn green Approx. 4 Hours indicate charging when charging is complete The On-Board Computer Systems What does your screen tell you? Power Kevel Power Button... - Page 9 Using The On-Board Computer Power On/Off Hold down the POWER button and the display will switch on and light up (if the battery has been switched on…). Hold down the POWER button again and the display will switch off. Walk assist mode Press and hold the DOWN button for 2 seconds and your e-bike motor will start to run at a uniform speed of 6 Km/h.
-
Page 10: Pre-Ride Checks
Make sure the stem is securely Ensure that the seat tube is not locked up over extended Give Your eTura Love And Attention Maintain Pressure Lubricate chain Ensure battery 2.4-3.1 bar / 35-45 psi every 3 months... -
Page 11: Safety Instructions
Never charge the battery in direct sunlight. Keep away from windows or open doors. When the eTura isn't used for a long period, please make sure the battery is either connected to the charger or the battery gets a full charge cycle every 6... -
Page 12: Warranty
Warranty FuroSystems guarantees each new bicycle frame against defects in workmanship and materials for two years. All original components are also covered by warranty for a period of two years from the date of purchase. This warranty is expressly limited to the replacement of a defective frame, or defective parts and is the sole remedy of the warranty. - Page 13 WARNING! Your bicycle must comply with your countries legal requirements when riding on public roads and in all conditions, including bad weather, night time, dusk or dawn. Many countries require specific safety devices. It is your responsibility to familiarize yourself with the laws of the country where you ride and to comply with all applicable laws including properly equipping yourself and your bike as the law requires WARNING!
-
Page 14: Copyright Notice
Trademarks FuroSystems® is a registered trademarks of FuroSystems LTD. Standards and Conformity The eTura is an electric power assisted cycle developed in accordance with: • 2006/42/EC The Machinery Directive • 2004/108/EC The Electromagnetic Compatibility Directive and is in conformity with the applicable requirements of the following documents: •...
