Installation, Care & Use Manual
USES HFC-134A REFRIGERANT
43
23
1
37
15
EZODTL MODEL
FIG.1
Page 1
®
43
38
42, 32, 31
27, 28, 29, 30
17, 18
13
16
33
5, 19
23
SEE FIG.3
20
14, 25
23
26
49
97627C (Rev. G - 04/02)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elkay EZOTL8 1 Series
Summary of Contents for Elkay EZOTL8 1 Series

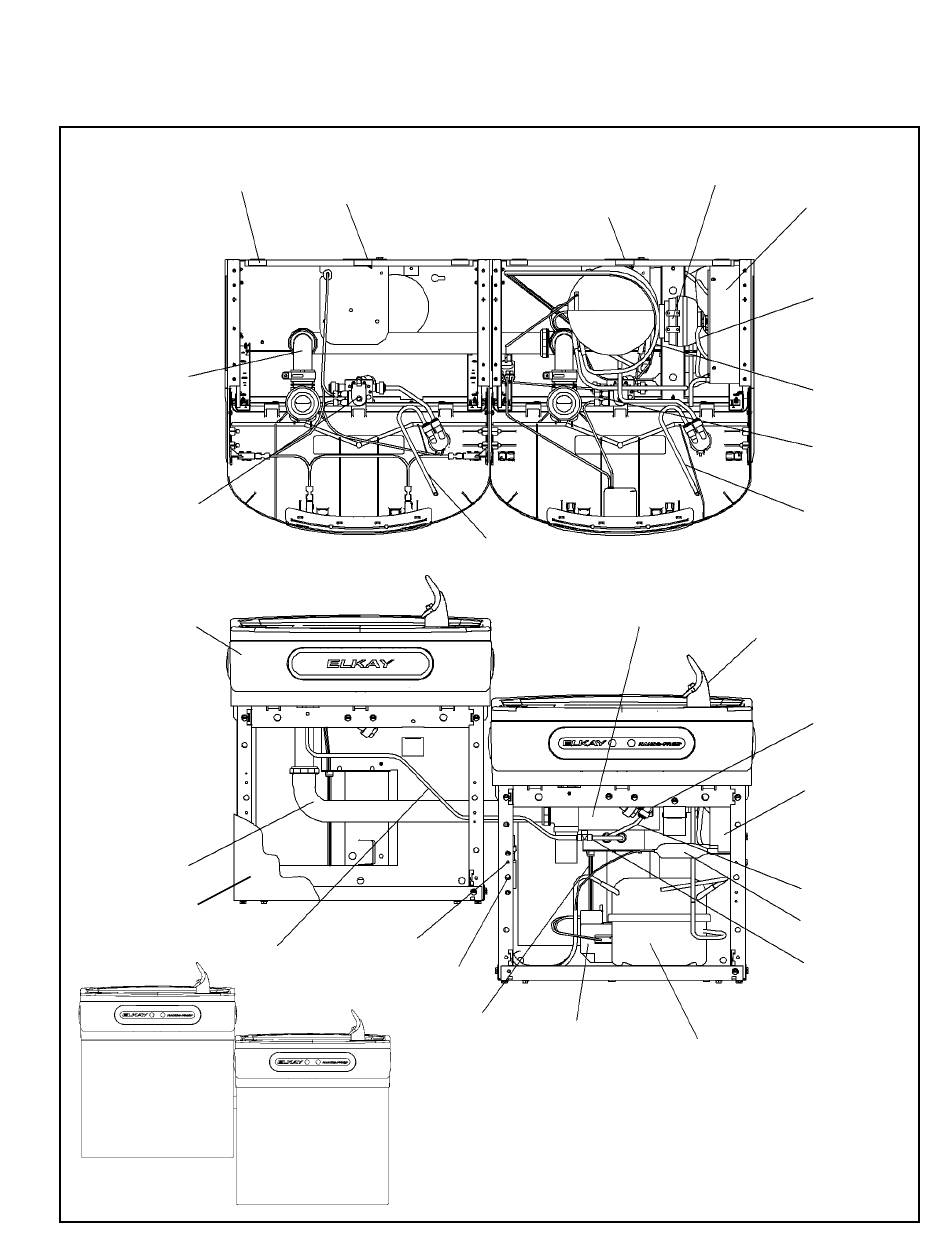

- Page 1 EZOTL8_1, EZODTL_A With FLEXI-GUARD ® Installation, Care & Use Manual USES HFC-134A REFRIGERANT 17, 18 5, 19 SEE FIG. 4 SEE FIG.3 14, 25 42, 32, 31 27, 28, 29, 30 EZODTL MODEL FIG.1 Page 1 97627C (Rev. G - 04/02)
- Page 2 EZOTL8_1, EZODTL_A 97627C (Rev. G - 04/02) Page 2...
- Page 3 EZOTL8_1, EZODTL_A HANGER BRACKETS & TRAP INSTALLATION NOTE: IMPORTANT: Ÿ INSTALLATION OF COOLER IMPORTANT: START UP Also See General Instructions NOTE: SENSOR RANGE ADJUSTMENT CAUTION SENSOR CONTROL CAUTION BASIN ESTANQUE BASSIN NOTE: WHEN INSTALLING REPLACEMENT BUBBLER AND PEDESTAL, TIGHTEN NUT (ITEM 10) ONLY TO HOLD PARTS SNUG IN POSITION.
-
Page 4: Wiring Diagram
*REPLACE WITH SAME COMPRESSOR USED IN ORIGINAL ASSEMBLY. NOTE 11,12 RANGE ADJUSTMENT SCREW FIG.4 44 (4) FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620 ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 97627C (Rev. G - 04/02) Page 4...
