Summary of Contents for Mine Mine-M4
-

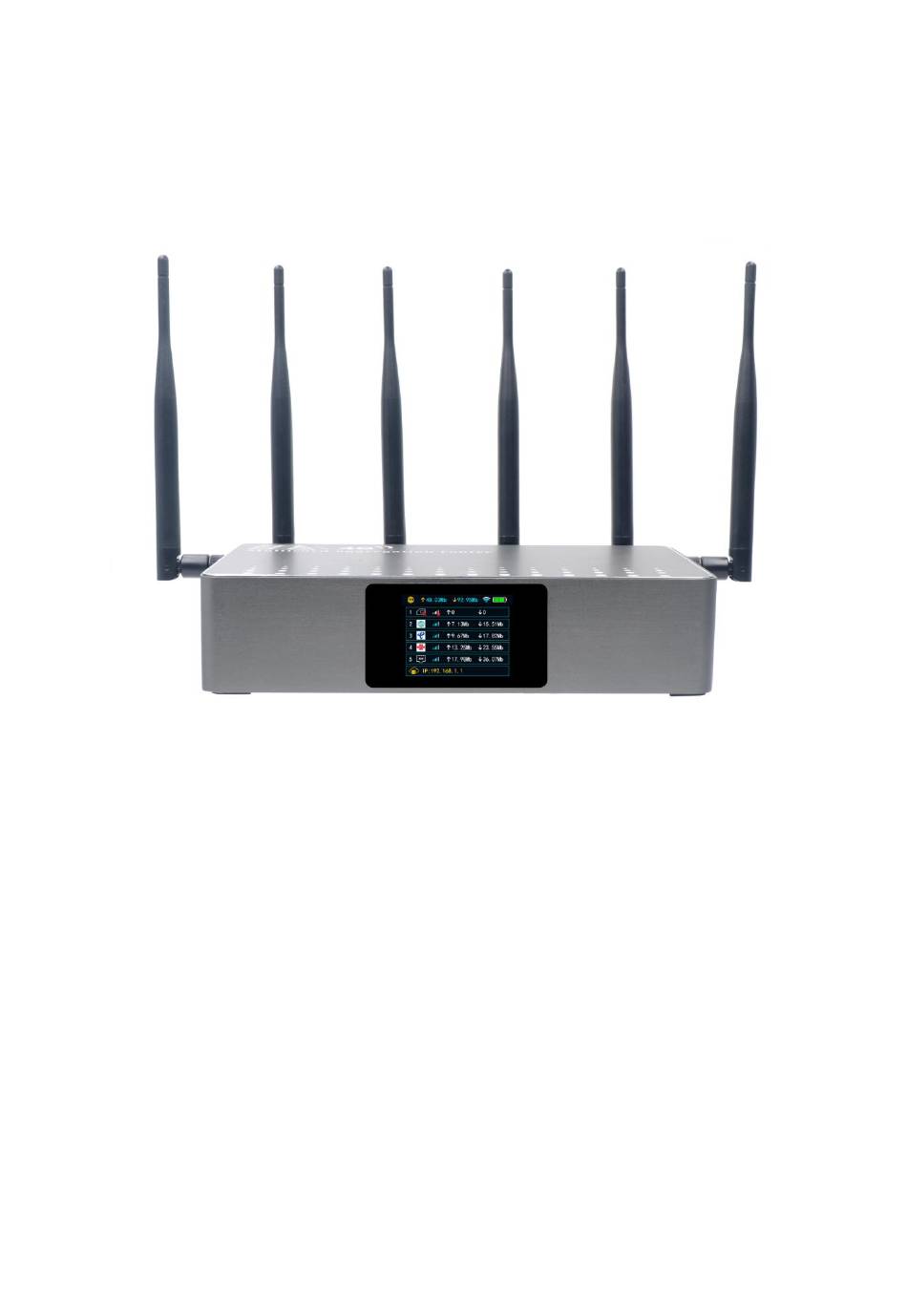

Page 1: User Manual
Broadband Cellular Bonding Router Broadband Bonded Cellular Router User Manual Content... - Page 2 Broadband Cellular Bonding Router 1. Introduction....................3 2. Feature......................3 3. Specification....................3 4. Panel Description....................4 5. Connection Diagram..................5 6. How to login the M4…………………………………………………………………………………..6...
- Page 3 * low Latency * Continuously seeks the best possible mobile network * Remote (web-based) management * Integrated with Social Media live streaming 3. Specification Product Model # Mine-M4 Cellular Network Mode TDD-LTE，FDD-LTE，DC-HSPA+/HSPA+/HSPA/UMTS，TD-SCDMA Operator Depends on customer’s request 1000mb/s 1000mb/s WiFi Frequency 2.4GHz，5.8GHz...
- Page 4 Broadband Cellular Bonding Router Power Consumption Lithium Battery 20000MA Capacity Working Duration 8-10h Other Spec Protocol TCP/IP、UDP、FTP、HTTP etc Management Net Weight 1.2kg Product Dimension 240*145*30mm Working Temperature -10°C~~~40°C Storage Temperature -40°C~~~70°C 4. Panel Description 5. Connection Diagram Mode 1:...
- Page 5 Broadband Cellular Bonding Router Mode 2: 6. How to login the M4 control panel? a. Ensure the LAN1 or LAN2 port of M4 connect with your pc directly or via a switch, keep your PC IP with the M4 in same...
- Page 6 Broadband Cellular Bonding Router LAN, that is your PC IP should be 192.168.11.*, such as 192.168.11.5 Or just connect the M4 WiFi, then login to open http://192.168.11.1 by browser,...
- Page 7 Broadband Cellular Bonding Router When all settled, the SIM card still can’t get network, maybe you need to setup the APN per your SIM provider,...
