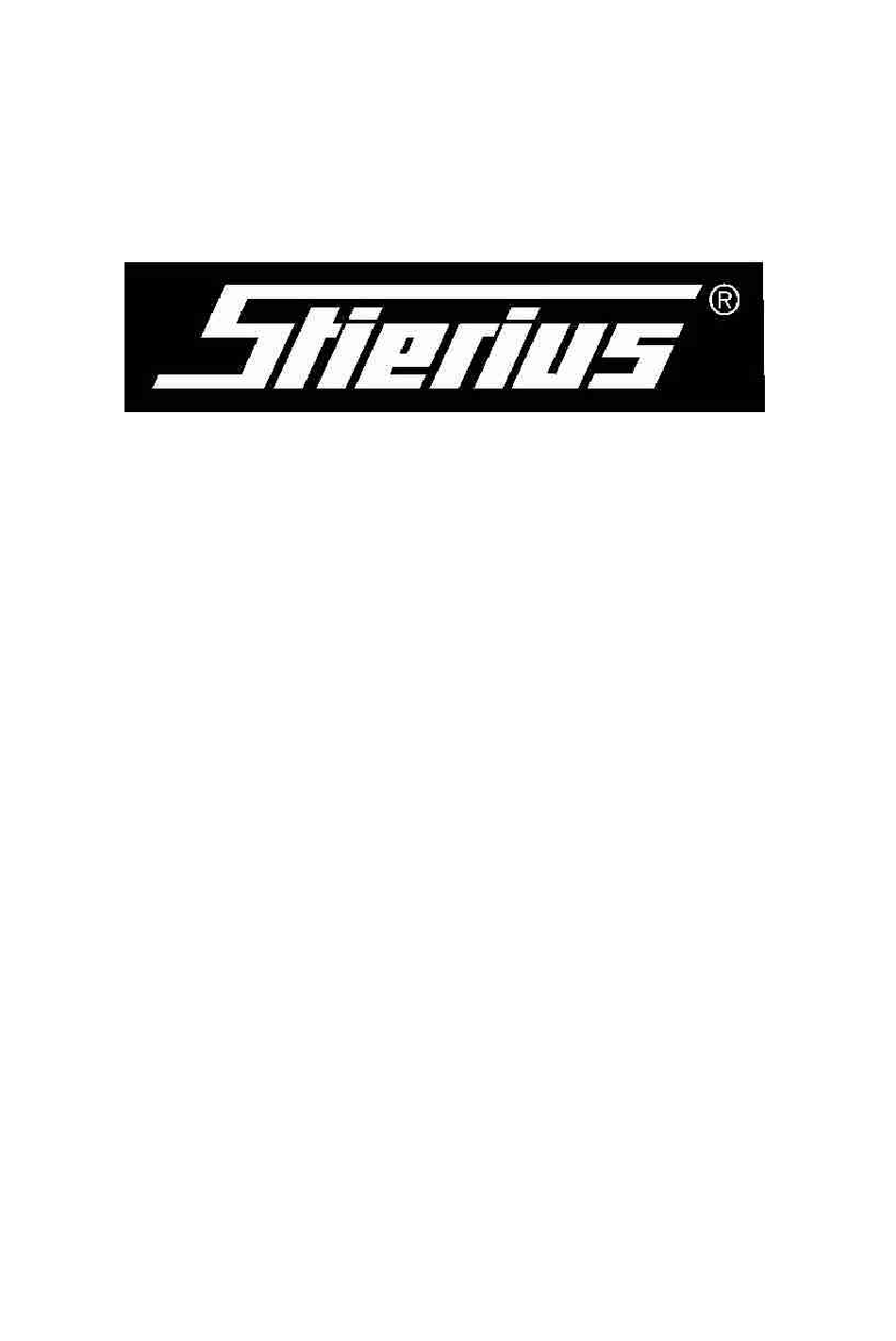

- Page 1 Bedienungsanleitung Operating Instructions Mode d'emploi Istruzioni per l'uso Bremsen - Service - Geräte VARIO 5 VARIO 20 II VARIO 20 II PRO EG 30-60 EPC EG 30-60 EPC PRO...
-
Page 2: General Safety Notes
General safety notes 1. The unit may only be connected to a power supply with voltage, current type and frequency matching the specification on the type plate! Never pull the power plug on the cord when unplugging it! 2. Do not start operation of the unit if the power cord has been damaged or the housing or the pressure hose shows sign of damage. -
Page 3: General Information
General Information The new STIERIUS Brake Bleeding Unit uses the latest technical advances in bleeding and filling hydraulic brake systems. One man is all it takes to operate and perform a complete brake bleeding service. Designed for all brake- and hydraulic clutch systems. - Page 4 Delivery Status / Installation / Operation start-up The packing will contain the following parts at the delivery status: 1 Control Assy. (incl. Pressure hose and Power cord) 1 Chassis 4 Mounting Screws 1 Suction tube assy. 1 Adapter no. 20 1 Recovery bottle (only PRO) Please check the unit after unpacking for any transportation damage.
- Page 5 0°C - +45°C Pressure gage: 0-4 bar (0-86 psi) Technical changes, including engineering changes, remain expressly reserved! Technical Data VARIO 5-20 and VARIO 5-20 PRO: H x W x D: 850 x 400 x 330 mm Power supply: AC 230 V / 50/60 Hz Capacity: 5 –...
- Page 6 Operating Instructions: 1. Place a new brake fluid container on the fluid can holding platform. Next secure the hold down chain to prevent can from slipping (16). 2. Remove the large container opening and place the fluid pick-up tube (11) into the opening.
- Page 7 General Information In the case the brake / clutch pedal becomes soft or the operation activity of the brake / clutch pedal is to long it is needed to vigorously pump the pedal and repeat the bleeding procedure again. Adjusting the proper bleeding pressure The pressure is adjusted at the factory to 2 bar.
- Page 8 Note If the device is switched on and still shows no function, the power supply may be interrupted. Please check the fuse (6) and exchange it if needed (please see “Technical Data”). To reduce the pressure inside the unit it is necessary to turn off the unit on the ON/OFF switch (5).
- Page 9 It seals itself on the bleed nipple and allows pressure to be introduced into the bleed nipple of the slave cylinder. You can then reduce the fluid level of the master cylinder reservoir with a suction hose. Please take note to our adapter application list: www.stierius.com!
- Page 10 Accessories: Recovery Bottle (Part-No. 3-0070) Reverse Bleeder Hose No. 67 (Part-No. 3-0069) Various adapters Please take note to our adapter application list: www.stierius.com!
- Page 11 Bodo Stier Hydrotechnik GmbH Gutenbergstr. 2-4 D-78727 Oberndorf /Neckar Telefon +49 (0)7423 3321 +49 (0)7423 4711 (Technische Hotline) +49 (0)7423 82422 Internet: http://www.stierius.com Email : service@stierius.de...
