M-system CLSP Instruction Manual

INSTRUCTION MANUAL
CLAMP-ON PULSE SENSOR

BEFORE USE ....

Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Clamp-on pulse sensor ........................................................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
12V DC rating: 12V ±10%, max. 5mA
■ GENERAL PRECAUTIONS
• Before you remove the module or mount it, turn off the
power supply and input signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the air,
install the module inside proper housing with sufficient
ventilation.
• Do not install the module where it is subjected to continu-
ous vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within 0 to 55°C (32
to 131°F) with relative humidity within 80% RH in order
to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The module is designed to function as soon as power is
supplied, however, a warm up for 10 minutes is required
for satisfying complete performance described in the data
sheet.
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL

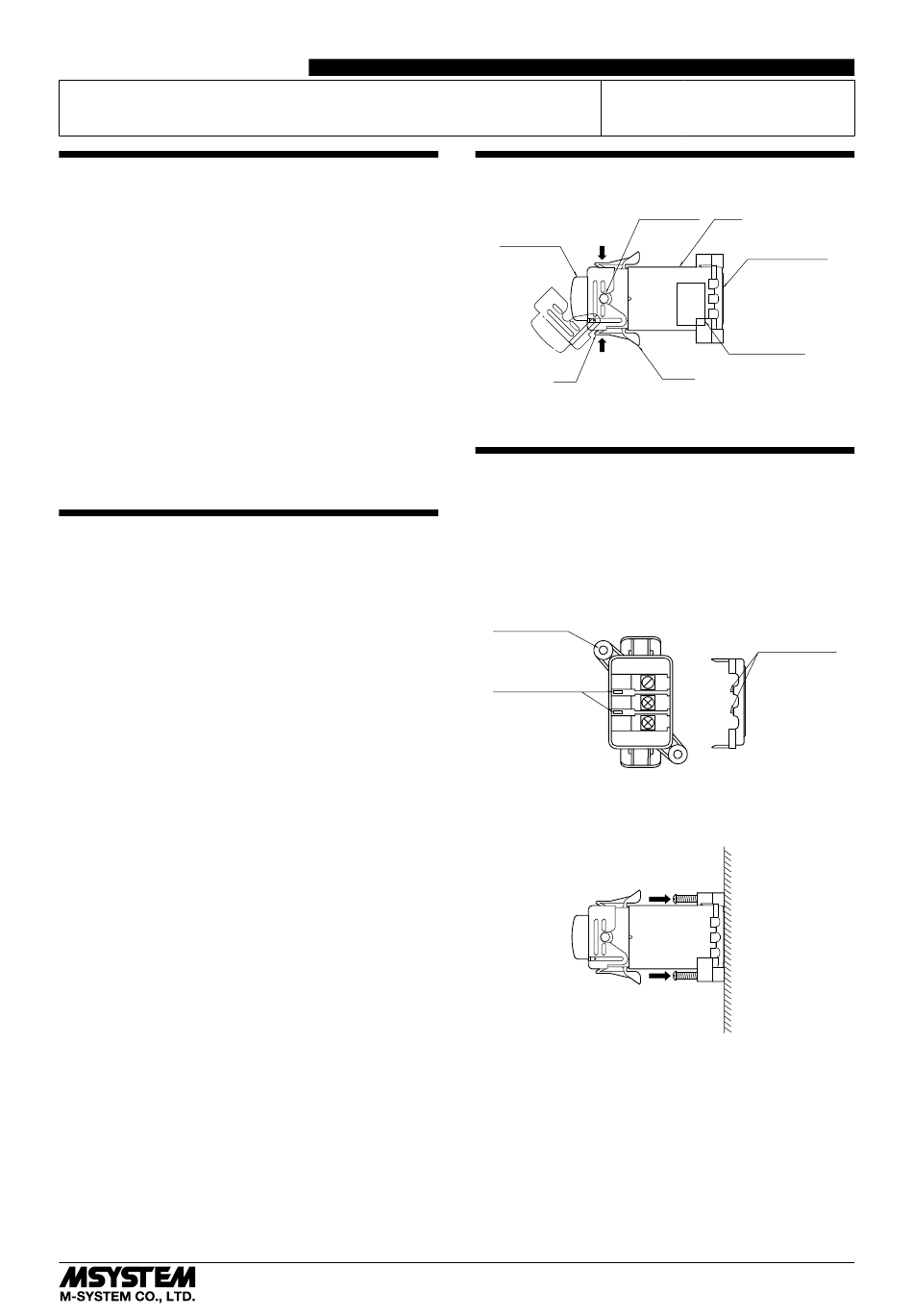

COMPONENT IDENTIFICATION

Input Cable
Top Section *
*
Tab
*Binding strap here

INSTALLATION

■ MOUNTING THE MODULE

1) Remove the terminal cover and connect wires according
to the connection diagram. Be aware of the wire inser-
tion direction (See 'Inserting Wires').
2) Put the terminal cover back so that its keys meet the key
holes. Be aware of the cover direction.
Mounting Hole
Terminal Cover
Key Hole 12V
R0
R1
3) Tighten screws using the mounting holes to fix the mod-
ule on a wall.

■ CONNECTING THE INPUT CABLE

1) Squeeze the levers on both sides to detach the tabs and
pull out the top section.
2) Place the input cable to the position indicated on the
above drawing.
3) Put back the top section and bind over the tabs/levers
with a binding strap.
CLSP
Body
Terminal Cover
(separable)
Specifications
Lever
Terminal Cover
Key
EM-9237 Rev.3 P. 1 / 2
