Summary of Contents for Evonicfires E-Touch

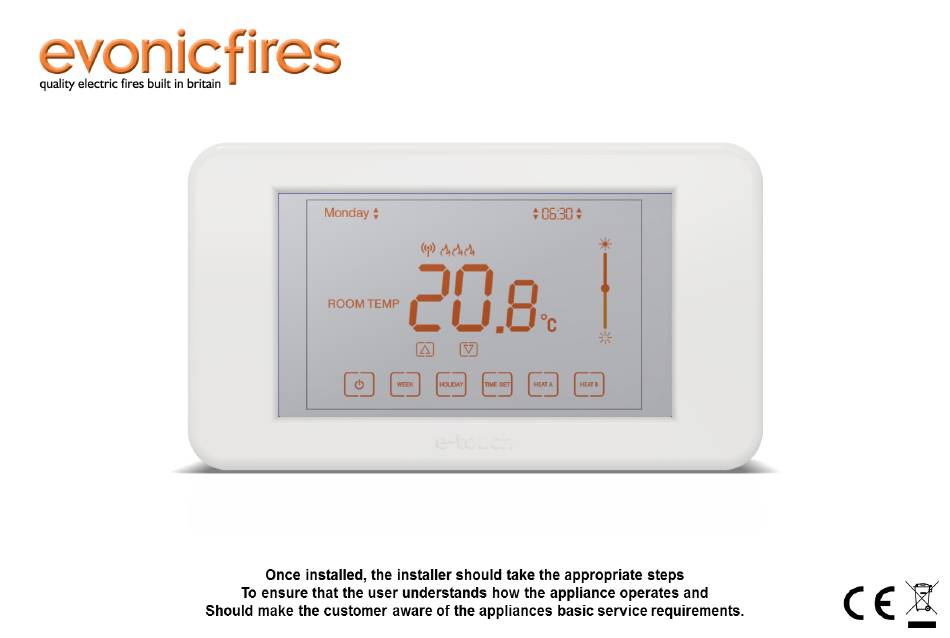

- Page 1 Installation & User Instructions—Model: E-Touch Control System...
- Page 2 The best way to do this is to set the e-touch to a low temperature –say 18 degree’s, and then turn it up by 1 degree each day until you are comfortable with the temperature.
- Page 3 E-touch LCD touch screen Display Layout:...
- Page 4 7). Day Display - Shows week day. 8). Date Display - Shows Month / Day / Year. 9). Connection Display - Shows when e-touch is connected to product. 10). Room Temperature Display - This displays the desired room temperature. 11). Temperature Control Keys - Single press to increase or decrease temperature when setting desired room temperature...
- Page 5 E-touch clock and date setup: To set the clock, follow the below steps. - Single Press the Time display on the e-touch control system. The following Screen will be displayed. • Press (A.) to increase or decrease Hours. • Press (B.) to increase or decrease Minutes.
- Page 6 2). Switch the e-touch control system “On” by Pressing and hold the On/Off switch located on the top left of the e-touch for 4x seconds. 3). Once the “start up” screen appears (Fig:1) displaying the time, date and day, Single Press the On/Off switch once on the e-touch control system - This will initiate the e-touch to “Scan”...
- Page 7 9). To Adjust the brightness of the Flame effect simply Increase or decrease the luminescence by Pressing “C.” the Dimmer control keys. 10). Please Note: After 1x minute of non use the e-touch will enter sleep mode, this is identified by the screen going blank - to reactivate the e-touch simply press the screen followed by pressing the “On/OFF”...
- Page 8 Programming the 7 Day timer: To access the 7 Day programmable timer, follow the below steps. 1). Single press the TIME SET display on the e-touch control system. The below screen will be displayed. 2). Single press the “Week Mode” key, And the below screen will be displayed.
- Page 9 To Set a programme on the 7 Day programmable 1.) Single Press & select what time you would like the heater to switch On. (ON TIME) 2.) Single Press & select what time you would like the heater to switch Off. (OFF TIME) 3.) Single Press &...
- Page 10 7). Single press the “WEEK” Key (A.) on the home screen to activate Time programs that have been set. 8). Once you have programmed your Time programs, these will repeat each week on the original day and time set. 9). To Override this function without losing your information, simply press the “TIME SET” key and select “Holiday Mode”...
- Page 11 On/Off Switch 5v Micro USB Charger Touch Screen 5v Micro USB Charge Point...
