Summary of Contents for RIGEBA RG-ML80B-KEE8H36A

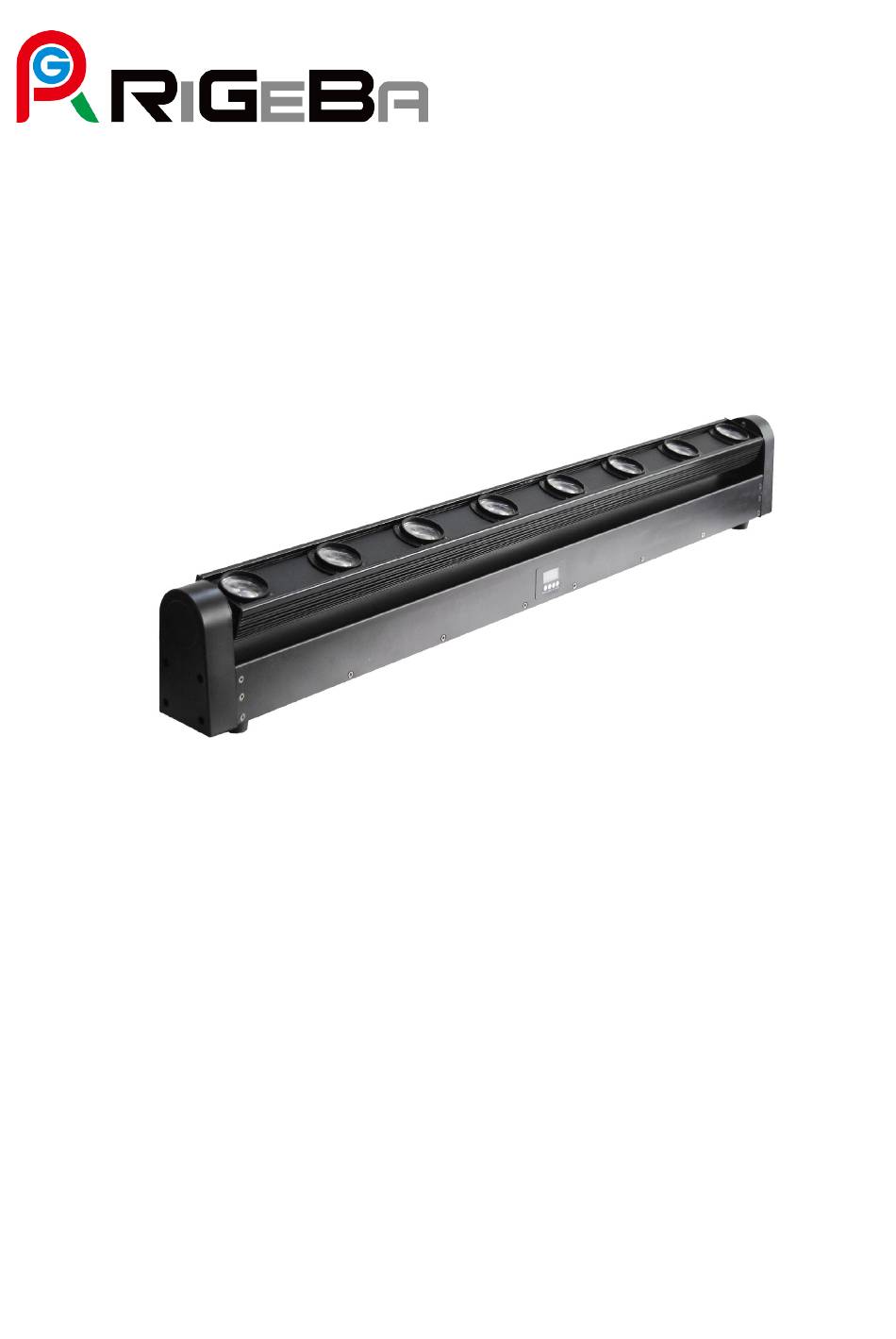

- Page 1 RG-ML80B-KEE8H36A EIGHT HEAD BEAM BAR Guangzhou Geliang Lighting Technology Co.,Ltd Tel:+8620-86872001/2/3 www.rigelighting.com...
-
Page 2: Table Of Contents
CONTENTS GENERAL INFORMATION SAFETY INSTRUCTIONS FEATURES GENERAL GUIDELINES FIXTURE OVERVIEW MOUNTING AND INSTALLATION UNDERSTANDING DMX CONTROL BOARD DMX CHANNEL TRAITS CLEANING AND MAINTENANCE TECHNICAL SPECIFICATIONS 1-YEAR LIMITED WARRANTY Disclaimer... -
Page 3: General Information
EIGHT HEAD BEAM BAR 1. GENERAL INFORMATION INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable lighting fixtures on the market today! The Eight head beam bar has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit, this fixtures uses a unique lamp that has very specific guidelines that must be strictly followed. - Page 4 EIGHT HEAD BEAM BAR Please do not discard the shipping carton in the trash. Please recycle whenever possible. Important: Damages caused by the disregard of the instructions in this user manual are not subject to warranty. ● Never open this fixture while in use! ●...
-
Page 5: Safety Instructions
EIGHT HEAD BEAM BAR 2. SAFETY INSTRUCTIONS The Eight head beam bar is an extremely sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow the guidelines in this manual.We will not accept responsibility for damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. -
Page 6: General Guidelines
EIGHT HEAD BEAM BAR 4. GENERAL GUIDELINES This fixture is a professional lighting effect designed for use on stage, in nightclubs, in theatres, etc. Do not attempt operation or installation without a proper knowledge on how to do so. This fixture was designed for indoor use only. Consistent operational breaks may ensure that the fixture will function properly for many years to come. -
Page 7: Fixture Overview
EIGHT HEAD BEAM BAR 5. FIXTURE OVERVIEW 6. MOUNTING AND INSTALLATION Cautions: For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas were the fixture might be reached by unauthorized personal. Before mounting the fixture to any surface, make sure that the installation area can hold a... -
Page 8: Understanding Dmx
EIGHT HEAD BEAM BAR minimum point load of 10 times the device’s weight. Fixture installation must always be secured with a secondary ● safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing, ●... - Page 9 EIGHT HEAD BEAM BAR data “OUT” XLR terminals located on the fixtures (most controllers will only have output jacks). DMX Linking: To ensure proper DMX data transmission, always use proper DMX cables and a terminator. When using several DMX fixtures try to use the shortest cable path possible.
- Page 10 EIGHT HEAD BEAM BAR below.). You can chain multiple moving heads together through serial linking. The cable that should be used is two conductor, shielded DMX cable with XLR input and output connectors. Always be sure daisy chain your in and out data connections, never split or “Y” your DMX connections unless you are using an approved DMX splitter .
- Page 11 EIGHT HEAD BEAM BAR channel number you have set, based on the quantity of control channels (DMX channels) of each fixture. That means changing the settings of one channel will only affect the selected fixture. EXP: In "dn01" mode, this fixture is in 9 channel mode, you should set the starting DMX address of the first unit to 1, the second unit to 11 (10 + 1), the third unit to 21 (11 + 10), and so on.
-
Page 12: Control Board
EIGHT HEAD BEAM BAR 8. CONTROL BOARD Addr (DMX address setting) This function is used to set the starting DMX address of the fixture. Each fixturet controlled by DMX device has a starting address. The DMX function is to ensure normal addressing. A DMX address of the fixture allows it to communicate with the controller. - Page 13 EIGHT HEAD BEAM BAR different console mode: dn01-9 DMX channal, dn02-12 DMX channal, dn03-36 DMX channal Angl (Irradiation angle positioning) Irradiation angle settings,Irradiation angle (0-230 °). rL - gl - bl - El - (dimming) This section is used for the lighting of the red, green, blue, white linear dimming. AUTO (run the built-in effects) This section is used to run the lamps built-in program.
-
Page 14: Dmx Channel Traits
EIGHT HEAD BEAM BAR 9. DMX CHANNEL TRAITS dn.01 ( Console mode setting ) 0-255 Irradiation angle (0-100%) 0-255 Motor Speed (fast to slow) 0-255 Total dimmer (0-100%) 1-255 Strobe effect 0-255 Red dimmer (0-100%) 0-255 Green dimmer (0-100%) 0-255 Blue dimmer (0-100%) 0-255 White dimmer (0-100%) - Page 15 EIGHT HEAD BEAM BAR CH21 0-255 Red dimmer (0-100%) the 5th head CH22 0-255 Green dimmer (0-100%) CH23 0-255 Blue dimmer (0-100%) CH24 0-255 White dimmer (0-100%) CH25 0-255 Red dimmer (0-100%) the 6th head CH26 0-255 Green dimmer (0-100%) CH27 0-255 Blue dimmer (0-100%)
-
Page 16: Cleaning And Maintenance
EIGHT HEAD BEAM BAR 10. CLEANING AND MAINTENANCE The following points have to be considered during the inspection: Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during normal operation resulting in damage or injury as larger parts could fall. -
Page 17: Technical Specifications
EIGHT HEAD BEAM BAR 11. TECHNICAL SPECIFICATIONS Power supply Power Requirements AC 100V-240V~, 50Hz/60Hz Power Consumption 80 W Optical system CREE LED 10W/pcs RGBW 4IN1 ,total 8pcs LED life 50000h Lens Fresnel lens 45° DMX CHANNAL 9 / 12 / 36 Drive Standard DMX-512, 3 pole XLR;... -
Page 18: Disclaimer
EIGHT HEAD BEAM BAR ● D. This is not a service contract, and this warranty does not include maintenance, cleaning or periodic check-up. During the period specified above, we will replace defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship.
