Imlab IKA EUROSTAR 400 Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

20000007309a

EUROSTAR 400 control_102017

EUROSTAR 400 control

IKA

Table of Contents

Need help?

Do you have a question about the IKA EUROSTAR 400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Imlab IKA EUROSTAR 400

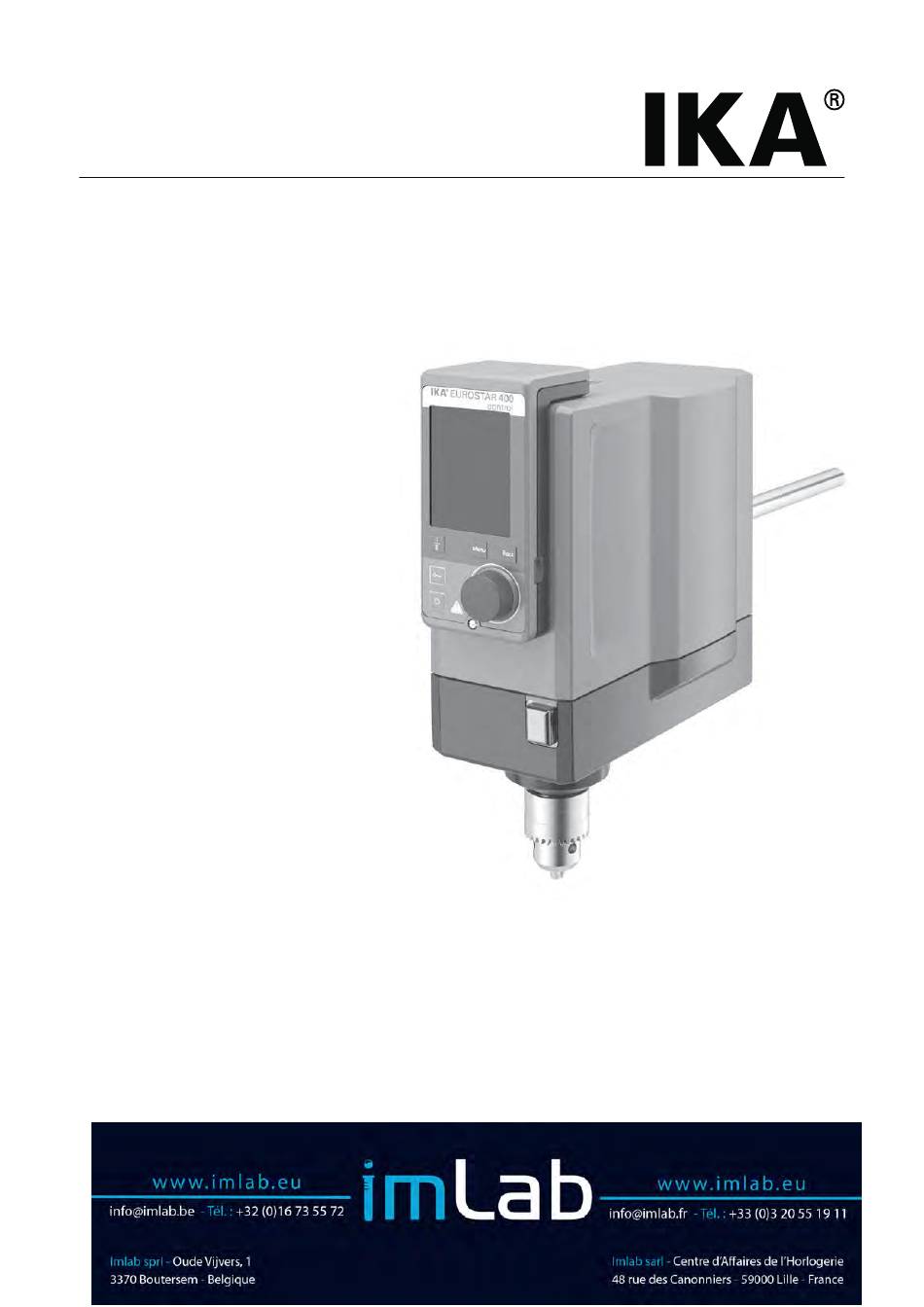

Page 1 20000007309a EUROSTAR 400 control_102017 ® EUROSTAR 400 control...
Page 2 EUROSTAR Wireless Controller station (WiCo) Fig. 2 Fig. 1 Fig. 4 Fig. 3 RS 232 Temp. Sensor Fig. 5 Fig. 6 Fig. 8 Fig. 7...
Page 3: Table Of Contents
Source language: German Contents Page Declaration of conformity Note for USA (FCC) Note for Canada (IC) Explication of warning symbols Safety instructions Correct use Unpacking Drive Motor protection Speed – normal operation Speed – overload operation Output shaft Speed display Commissioning Securing Switching on the device...
Page 4: Note For Canada (Ic)
Note for Canada (IC) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two condi- tions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. This device complies with Health Canada’s Safety Code 6 / IC RSS-210.
Page 5 • Only process media that will not react dangerously to the Never operate the device with the WARNING extra energy produced through processing. This also ap- stirrer tools rotating freely. Ensure plies to any extra energy produced in other ways, e.g. that parts of the body, hair, jewelry through light irradiation.
Page 6 • The lithium polymer battery pack must only be used and • Imbalance of the output shaft, the chuck and in particu- charged in IKA ® products designed for use with this bat- lar the stirring tools can lead to uncontrolled resonant vi- tery pack.
Page 7: Correct Use
Correct use • Use: This device is suitable for use in all areas except: For mixing/stirring liquids with low and high viscosities by - Residential areas various stirring tools. - Areas that are connected directly to a low-voltage supply Intended use: Stand device (chuck points down) network that also supplies residential areas.
Page 8: Speed - Normal Operation
Speed – normal operation Speed - regulated (no variation in speed): The speed is monitored and regulated by processor con- The speed is set using the front knob (B, see Fig. 1). Dur- trolled. The target speed is constantly compared with the ing normal operations the speed value on the display (C, actual rotation speed value of the output shaft and varia- see Fig.
Page 9: Commissioning
Commissioning Assemble the overhead stirrer and all necessary accessories Accessories must be assembled according to the following on a stable, even, non-slip surface. The EUROSTAR over- assembly instructions (Fig. 2 to Fig. 7). head stirrer must be secured to a stable stand (e.g. R 2722 or R 2723) with a cross-sleeve (e.g.
Page 10: Switching On The Device
Changing the RB 1 battery pack in the Wireless Con- Please comply with the relevant NOTICE troller safety instructions in the "Safety instructions" section for the RB 1 battery pack! Switching on the device Check whether the voltage given on the type plate corre- In emergency the stirrer (station) NOTICE sponds to the available mains voltage.
Page 11: Useful Information
Useful information The EUROSTAR 400 control stirrer is controlled via a Wire- The Wireless Controller can be attached to the stirrer (sta- less Controller (WiCo). If the Wireless Controller is attached tion), or can be installed in a safe place easily accessible by to the EUROSTAR station, data exchange between the stir- the user while the stirrer is running.
Page 12 Home: Temperature sensor: This symbol means that the Wireless Controller is connected This symbol appears when the temperature display is active to the EUROSTAR station and is communicating with the EU- in the display. ROSTAR station via the charging contacts. The symbol no longer appears if the Wireless Controller is PC control: controlled...
Page 13 Menu structure: Factory settings Manual 2000 rpm Stirring Speed Limit Anchor stirrer Paddle stirrer Torque Limit 400 Ncm Torque Display activated Intermittent Mode Run/Stop Interval Run Time 00:00 [mm:ss] Stop Time 00:00 [mm:ss] Torque Calibration Temperature Probe Temperature Display Timer 00:00:00 [hh:mm:ss] Display Menu...
Page 14 Menu (details): Stirring: Torque Display: Speed Limit: The ”Torque Display” menu allows the user to specify that The ”Manual” menu allows the user to set the desired maxi- the torque is shown in the display. A tick shows that the mum speed limit for the EUROSTAR 400 control stirrer.
Page 15 Temperature: Programs: In the ”Temperature” menu the user can specify that the Under menu "Programs", 5 user-deﬁned speed (rpm)-time temperature sensor is displayed on the display/working proﬁles can be created. In addition, the user could deﬁne screen. A tick shows that the option is activated. The pre- the intermittent mode is activated or not in the programs.
Page 16 Insert: With the insert option, a new segment will be insert below the selected segment. The default settings for the new seg- ment are as following: rpm: 0 Time (hh:mm): 00:01 Intermittent Mode: No View the program in graph: After a program is being edited, press the "Back" key to save the settings.
Page 17 Example for editing the program: PROGRAM 1 PROGRAM 1 Programs Programs Programs Time Interm. Time Interm. hh:mm Mode hh:mm Mode Program 1 Program 1 Program 1 00:00 00:00 Program 2 Program 2 Program 2 Program 3 Program 3 Program 3 Program 4 Program 4 Program 4...
Page 18 Settings: Safety: Language: Time Out: The “Language“ option allows the user to select the desired In the “Time Out“ menu, the user can set a time limit. This language by turning and pressing the rotary/push knob (B). time limit applies if there is a communication failure be- A tick indicates the language that is set for the system.
Page 19: Interfaces And Outputs
Interfaces and outputs The device can be operated in “Remote” mode via an RS Command syntax and format: 232 or USB interface using the laboratory software lab- The following applies to the command set: worldsoft ® - Commands are generally sent from the computer (Master) The RS 232 interface at the back of the device is ﬁtted with to the stirrer machine (Slave).
Page 20 PC 1.1 Cable (station to PC): Required for connecting the 9-pin socket to a PC. RxD 2 2 RxD TxD 3 3 TxD GND 5 5 GND RTS 7 7 RTS CTS 8 8 CTS Connection capability: Wireless Controller to the EUROSTAR station: micro B micro A USB micro B...
Page 21: Maintenance And Cleaning
Maintenance and cleaning The device is maintenance-free. It is only subject to the Spare parts order: natural wear and tear of components and their statistical When ordering spare parts, please give: failure rate. - machine type - manufacturing number, see type plate Cleaning: - item and designation of the spare part, see www.ika.com, For cleaning disconnect the main...
Page 22: Warranty
Warranty In accordance with IKA ® warranty conditions, the warranty The warranty does not cover worn out parts, nor does it ap- period is 24 months. For claims under the warranty please ply to faults resulting from improper use, insufficient care or contact your local dealer.
Page 23: Technical Data
Technical data EUROSTAR station + Wireless Controller (WiCo) Speed range I (high torque) 0 / 6–400 Speed range II (high speed) 0 / 30–2000 Speed adjustment Stepless Speed display TFT / WiCo Speed setting accuracy ± 1 Deviation – speed measurement Speed <...
Page 24 Limiting deviation, temperature sensor PT 1000 DIN EN ≤ ± (0.15 + 0.002 x ITI) 60751 class A Measurement accuracy, temperature ± 0,5 + tolerance PT 1000 (DIN EN 60751 class A) max. communication range (dependent on the building) m 40–150 Dimension (W x D x H) –...
