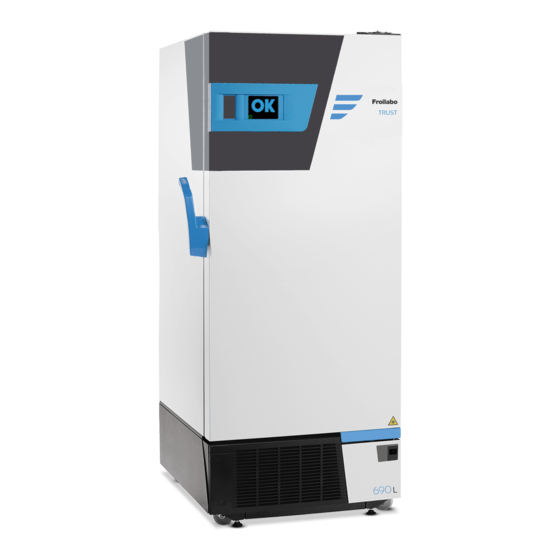

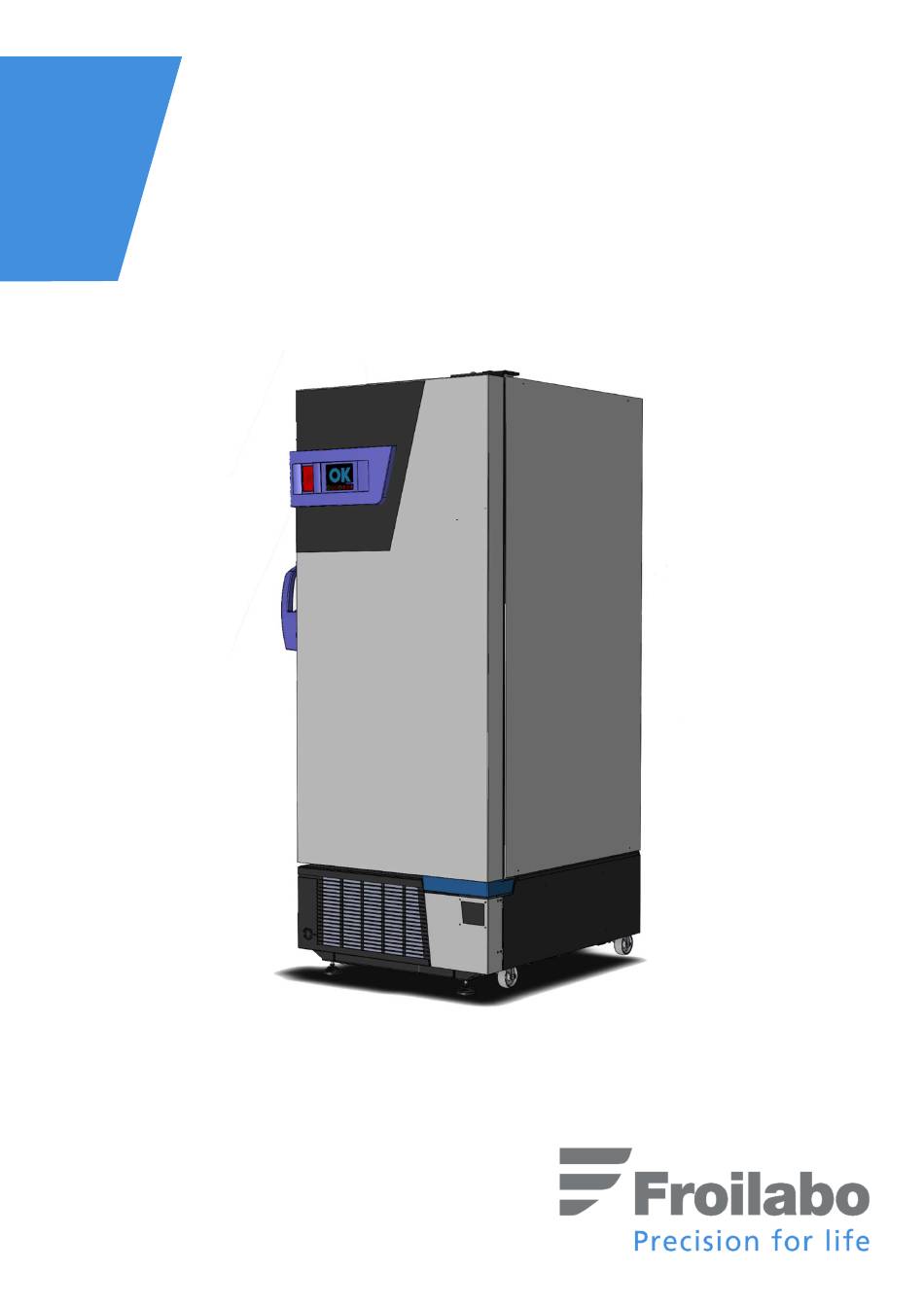

- Page 1 FREEZER TRUST -45°C / -86°C User manual Ref: UM_TRUST/EN_rev1.0...
- Page 2 Please read carefully this manual before first use! This document has been prepared with the utmost care possible. However, Froilabo declines all responsibility in the event of errors or omissions. The same applies to any damage arising from the use of information contained in...
-
Page 3: Table Of Contents
Table of contents Certificate of conformity ............................2 Warranty ..................................2 General informations ..............................3 First contact with your freezer ........................... 3 4.1 Delivery and unpacking ............................3 4.2 Implantation and installation............................ 4 4.3 Power supply ................................4 4.4 Temperature range ..............................5 4.5 Construction and isolation ............................ - Page 4 WARNING: GENERAL INFORMATION AND SAFETY INSTRUCTIONS It is strictly necessary to follow the instructions for use of this manual to ensure the proper functioning of the device or to exercise a possible recourse warranty. Using this manual : Read these instructions carefully before using the device for the first time. •...
-
Page 5: Certificate Of Conformity
2. Warranty Optimal performance will be achieved following correct installation and operating instructions provided in that manual. Froilabo SAS guarantees that the equipment will operate optimally in accordance with the conditions of installation and use set out in this manual. -
Page 6: General Informations
-80 ° C. Froilabo freezers are delivered on a pallet equipped with an unloading ramp. In fact, they do not require specific equipment to get off the pallet. Please refer to the handling and unpacking sheet attached to the device. -
Page 7: Implantation And Installation
4.2 Implantation and installation The freezer is designed for use under the following environmental conditions (according to EN 61010-1): • Indoor use only • Maximum altitude: 2000 m • Ambient temperature range of 18 ° C to 32 ° C •... -
Page 8: Temperature Range
4.4 Temperature range The TRUST freezer is factory preset to optimized power consumption. On the-86°C model, the setting ranges from -55°C to - 90°C, default setting being -80°C. On the -45°C model, the setting ranges from -20°C to -45°C, default setting being-45°C. The ambient temperature (recommanded between +18°C and +32°C, ideally between 20°C and 25°C) has a major influence on the power consumption of the equipment. - Page 9 Heating door seal : Froilabo freezers are equipped with a heating door seal to prevent the formation of ice and thus maintain an optimal seal of the freezer.
-
Page 10: Technical Characteristics And Refrigeration System
4.6 Technical characteristics and refrigeration system Technical characteristics: Characteristics TRUST Freezers 340L 515L 690L -86°C -45°C -86°C -45°C -86°C -45°C General Raw volume (liters) Number of compartments Freezer weight (kg) Power consumption* at 230 V at 50 Hz (Watts) 1000 1150 1000 1150... -
Page 11: Sample Storage
4.7 Sample storage Technical characteristics : In order to avoid any risk of deterioration of the construction elements and to guarantee the announced technical performances, the following instructions must be respected: • Do not place strong corrosive products inside the freezer. •... -
Page 12: Starting Up
4.9 Starting up Respect the order of the following instructions: 1. Equip the levels of drawers / shelves. Do not forget to remove any foam padding at the bottom of the shelves. 2. Connect the device to a single-phase earthed network protected by a 30 mA differential circuit breaker. 3. -
Page 13: Using Pxf4 Regulator
5. Using PXF4 regulator 5.1 Ajusting setpoint temperature On the TRUST model, the setpoint temperature is adjusted by means of the regulator at the front bottom right of your freezer, behind the glass door. Open the lower right wicket to access the regulator Adjust the value using the 2 arrows keys. -
Page 14: Setting Co / Ln Injection
5.3 Setting CO / LN injection To be used, the / LN emergency injection system must be activated and the injection threshold must be set. Configuration de l’injection CO / LN 1. Press SEL to access parameters. 2. Press to display CH 5, validate by pressing SEL. ... -
Page 15: Overpressure Cp1
6.3 Overpressure CP1 This indicator appears when the pressure in the compressor cooling circuit #1 (CP1) is too high. The compressor then cuts off for 5 minutes. Please check that nothing obstructs the air filter, check also its condition. After 3 alarms over 24 hours, the LED appears definitively, in this case, contact the After-Sales Service. -
Page 16: Maintenance And Customer Services
The inner wickets are removable without tools for easy maintenance and defrosting. Any serious problem requires the intervention of our maintenance department, or a possible diagnosis and help by telephone. Depending on the type of contract signed, FROILABO undertakes to intervene within certain deadlines in case of breakdown. -
Page 17: Long Time Stop
During each decontamination, Pendant chaque décontamination, ensure the protection of people adapted to the risks. DO NOT USE acid or chlorine base cleaners (corrosion risks) ! In the event of any deterioration and corrosion as a result of the use of non-recommended cleaners, FROILABO declines all responsibility. -
Page 18: Problems Encountered And Solutions
7.4 Problems encountered and solutions Any work on a device must be performed by qualified personnel. Observe the safety instructions. Any serious problem requires the intervention of our maintenance department, or at least a possible diagnosis and help by telephone. Symptoms Possible problems Solutions... -
Page 19: Security
8. Security 8.1 Liquid CO backup Precautions for CO use: Properties of CO • Does not sustain life or combustion. • Présent en faible quantité dans l’air (0,03 %). • Makes the atmosphere unbreathable at concentrations exceeding 3%. • even death. Accelerates respiratory rate, induces faintness, vomiting, coma or •... -
Page 20: Ln Backup
• Close the valve carefully. • Drain the coolant outlet. • Loosen the adjustment screw on the pressure regulating valve. • Close the valve on the receiving equipment. • Regulations apply to the transportation of cylinders. • Frames must be handled with care in the same way as cylinders. Users of the equipment, who are fully aware of the conditions of use and thus best placed to monitor the equipment, are solely responsible for proper use. - Page 21 • On the skin: do not rub. Remove clothing if necessary. Warm up the affected areas as quickly as possible under running water for 20 minutes. Call a doctor. Precautions with regards to the equipment: Warning: nitrogen is liquid at extremely low temperatures and is stored in a double-walled tank. A high vacuum between the walls ensures good thermal insulation.
-
Page 22: Transportation Et Waste Disposal
Since waste disposal regulations within the EU may vary from country to country, we invite you to contact your suppliers if necessary. Customer services Headquarter FRANCE Mail: froilabo@froilabo.com Phone: +33 (0)4 78 04 75 75 Fax: +33 (0)4 78 93 08 24 PARIS agency Mail: froilabo.paris@froilabo.com... -
Page 23: Service Contract
CO back up LN back up Number of devices: ____________________________________________________________________ Number of visits desired per year: _________________________________________________________ Do you already have a FROILABO maintenance contract? If yes, n° of contract: __________________________________________________________________________ To return by mail at service@froilabo.com...
