Summary of Contents for EleCycles FDB01

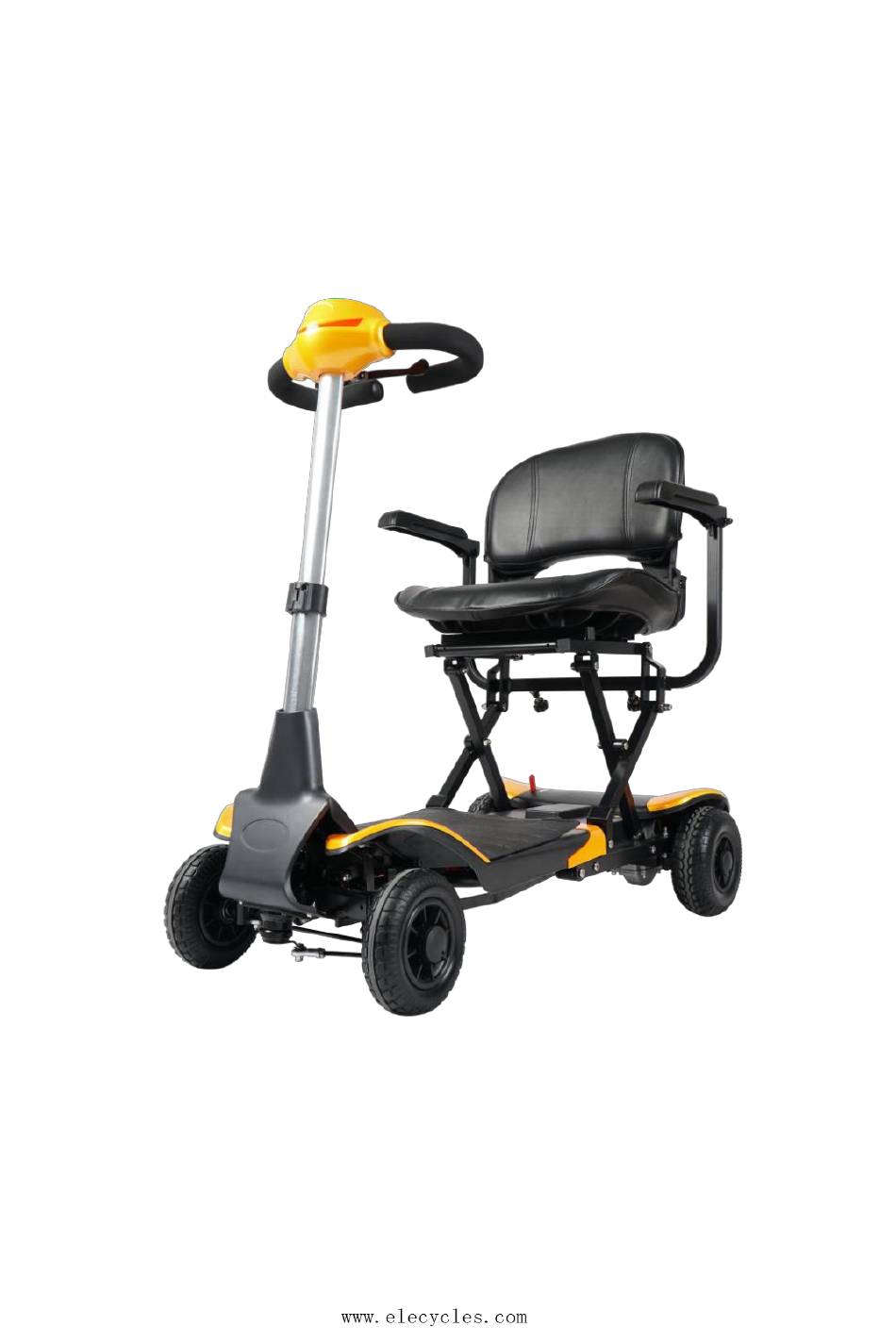

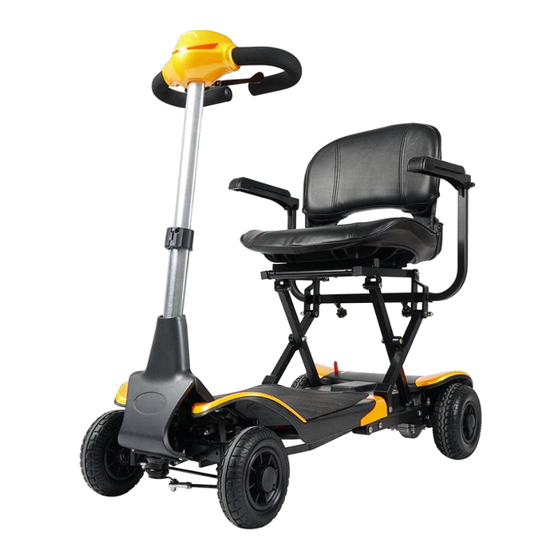

Page 1 Intelligent Folding Electric Scooter...
Page 2 Introduction Dear customer: Thank you for choosing the Intelligent Electric Folding Scooter . Please carefully read thorough this manual fully before operating the scooter. Should you not understand the content well or need to help, please contact the dealer nearby or contact with our after service department directly. This manual has brief introduction to the operational approach on every part of the scooter, specification and how to deal with accidental conditions.
Page 3: Table Of Contents
Contents Ⅰ.Safety Requirements....................1 II. Description of part....................5 III. Operating Instruction....................6 Ⅳ.Battery and Charging Method..................9 V. Adjustment of Folding and Unfolding..............10 VI.Inspection and Maintenance..................12 VII. Trouble Shooting....................13 Ⅷ.Technical Parameters....................15 Ⅸ.Appendix........................16...
Page 4: Ⅰ.safety Requirements
Ⅰ. Safety Requirement Before driving ■ ● Please drive on the pavement. Any case that you come across the road without sidewalk, please drive to outer side. ● Please pay attention to traffic of other vehicles on the road when there is no sidewalk available.
Page 5 1050mm...
Page 6 Warning: do not try to cross the slope beyond the angle listed in the manual , please follow other requirements mentioned in this manual. Safe Precaution ■ ● Don’t try to drive before you read and fully understand the manual. ●...
Page 7 ■ Precautions on usage Repair and modification ● If the repair or modification is needed, please contact the store or agent. Original parts ● Please use the original parts of former factory when the replacement is needed. Environment protection ● Please don’t abandon the scrapped scooter and battery.If necessary, please contact the dealer or agent.
Page 8: Description Of Part
Ⅱ. Description of each part 1.Control Panel 2. Leather seat 3. Armrest 4. Plastic cover 5.PU Solid Wheel 6. Charging Socket 7. Footrest and Battery Holder 8.Decorative pieces 9. Aluminum Steering post 10. Fastening Device Detailed diagram ● 1.Speed Nut 2.
Page 9: Operating Instruction
Ⅲ. Operating Instruction Power Switch（Picture one） Power ● The power switch is located on the right side of the control panel on the handle. Turn the power switch key clockwise for power on. Warning: If the power is turned off while the electric scooter is running, the electromagnetic braking system will be on and the scooter will stop abruptly.
Page 10 Horn Button ● Press the button of horn for sound to prevent any accident and injury ,please use it in time while it is necessary. Battery Holder ● Built-in 24V 6AH lithium-ion battery is to supply strong power for the running and folding of the scooter.
Page 11 Driving Method ■ Start Moving ● 1.Make sure the hand Post is pulled out and at locked position .Turn the power switch key clockwise, then the power indicator light is on. 2.Check the remaining power of the battery through battery power display ,charging is required when battery is low.
Page 12: Ⅳ.battery And Charging Method
Ⅳ. Battery and Charge Method Lithium ion Battery ● This product uses by 24V 6AH high-performance lithium-ion battery, Fully charged the battery is required before first time use. Warning: 1. Do not disassemble the battery ,it may cause accidents and injury. 2.
Page 13: Adjustment Of Folding And Unfolding
Picture Seven Caution： Please observe the following regulations to avoid accidents caused by abnormal charging. The battery shall only be charged with the charger provided by manufacturer and ★ make sure it is full charged. Or it may result in battery damage or can’t be charged . Do not disassemble or modify the charger.
Page 14 Arm Rest Adjustment (Picture Ten) ● Handrail width can be adjusted inward and outward. Picture Ten 1. Release loose the armrest fastening knob under the seat. 2. Move inward pr outward to the desired position,and then fasten the knob. 3. The armrest width adjustment ranges from 450mm-550mm. 4.
Page 15: Vi.inspection And Maintenance
VI.Inspection and Maintenance ■Routine Inspection Before driving, please make sure that the following items have being inspected, if unusual situation happen, please have inspection carried out by yourself or inspected by your dealer or agent. Inspection item Inspection content Is there any loose situation? Is it possible to turn right Handle and turn left ? Can it be extended in and out ? Does it rotate normally? Is the speed adjustment...
Page 16: Trouble Shooting
Battery Maintenance ● This product uses high performance lithium-ion battery, please charge the battery in time each time after using the scooter.Please don’t over discharge the battery. Caution: The charging of battery in every one month is required without while the scooter is not used for some time.
Page 17 Fault Display LED Flash ’s number Trouble description Possible cause of times Check the battery connection, if there is no Low battery voltage or problem with the connection, try charging the battery connection problem battery Problems with motor Check all connections between motor and connection controller Before turning on the power of the scooter,...
Page 18: Ⅷ.technical Parameters
Ⅷ.Technical Parameters Item Parameters Dimensions(L*W*H) 1050x550x870mm Packing Dimensions(L*W*H) 480x550x790mm Weight(With Batteries) 29KG Front wheel 2*7”PU wheel Back wheel 2*8”PU wheel Speed 0-6km( Adjustable) Endurance 20km Spanning ability 40mm Driving and braking mode Back-wheel drive, electromagnetic brake Load capacity 120kg Height from the ground 50mm Seat off-ground height 560mm...
Page 19: Ⅸ.appendix
Ⅸ Intelligent Electric Scooter Product warranty card ID card No: User Name： Phone Number: Address： Scooter Number: Product Name： Purchasing date： Warranty Period： Name of the agent ： Phone Number:...
Page 20 ● Scope of WarrantyDescription The agent is responsible for repairing or replacing the component when there is quality problem caused by manufacture under normal use. ● No warranty for the damage caused by the following conditions 1.Failure to use and maintain in accordance with the correct operation method in the instructions.
