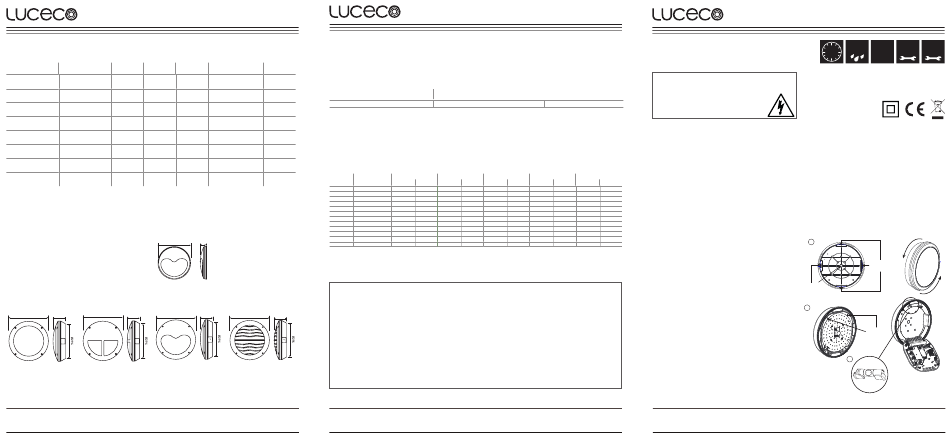

luceco Atlas Series Installation & Operating Instructions

Installation & Operating Instructions
TECHNICAL INFORMATION
Emergency
Code Rated Voltage Power PF
Duration
LBH154K 220-240V~ 50Hz 14W >0.7 N/A
LBH154KMW 220-240V~ 50Hz 15W >0.7 N/A
LBH154K3M 220-240V~ 50Hz 15W >0.7 3 hour
LBH154KMW3M 220-240V~ 50Hz 16W >0.7 3 hour
LBH214K 220-240V~ 50Hz 24W >0.9 N/A
LBH214KMW 220-240V~ 50Hz 26W >0.9 N/A
LBH214K3M 220-240V~ 50Hz 26W >0.9 3 hour
LBH214KMW3M 220-240V~ 50Hz 27W >0.9 3 hour
ADDITIONAL INFORMATION -
COMPONENT REPLACEMENT
• The luminaire contains no user replaceable components
Ø317
other than the battery pack contained in Emergency versions
• The battery has a 4year service life provided it is operated
and maintained by regular testing, as detailed in this
document. Failure to maintain or change the battery may
result in reduced duration in Emergency mode
• Battery specification - Li-ON 2200mAh 3.7V
LBH154AMP - Metal standard LBH154AMS - Metal split eyelid LBH154AME - Metal eyelid
Ø341 110 Ø341 110 Ø341
Tech Help Line
Supplied by
0330 0249 279
UK -
LUCECO
+44 (0)1952 238 100
Stafford Park 1 TF3 3BD ENGLAND
Non UK -
LBH.JH.10.2016
EMERGENCY LIGHTING TESTING
Months 1 to 11 inclusive – Function Test, interrupt the permanent/UnSwitched supply and check the luminaire operates in Emergency
Lumens with
Battery
mode at reduced output
diffuser
Month 12 (Annual) – As months 1 to 11 but for a full 3 hr duration
N/A 1250Lm
Luminaire Ref / Location:
N/A 1250Lm
LBHxx4Kxx
Li-ion
1250Lm
2200mAh 3.7V
INITIAL USE AND ROUTINE TESTING
Li-ion
1250Lm
2200mAh 3.7V
From initial install the downlight will require up to 24 hr for the batteries to be fully charged and provide the rated 3hr duration in
Emergency mode. Then following subsequent Emergency use, from full discharge will take approx. 14hr to fully recharge batteries.
N/A 2100Lm
It is important that the luminaire is routinely tested to ensure the batteries are conditioned and also to fully comply with BS5266.
N/A 2100Lm
A function test should be conducted every month with an annual test of the full 3hr duration. Records can be kept on the adjacent table.
Li-ion
It is recommended that batteries are replaced every 4 years to ensure the optimum charging cycle is maintained.
2100Lm
2200mAh 3.7V
Li-ion
2100Lm
2200mAh 3.7V Month Test
1 Function
2 Function
3 Function
4 Function
5 Function
6 Function
7 Function
8 Function
9 Function
10 Function
11 Function
60
12 Function
United Kingdom Warranty
For other territories and for further information, please see www.luceco.com for details
Products are protected by guarantee for a period of 3 year warranty, from date of purchase against defects in material and workmanship (unless otherwise stated). Should
a product fail to perform as described within the warranty period it will be repaired or replaced with the same or equivalent product by Luceco, free of charge provided
LBH154AMG - Metal grille
that you: (1) return the product to us with shipping charge prepaid, (2) provide us with proof of the original date of purchase and (3) quote our return authorization number.
Repaired or replaced products will be returned to you with shipping charges prepaid. Replacement products may be refurbished or contain refurbished materials. If in our
110 Ø341 110
sole discretion, we are unable to repair or replace a defective product, we will refund the purchase price of the product.
This warranty will not apply if in our judgment, the product fails due to damage in shipment, handling, storage, accident, abuse or misuse, or if it has been used in a
manner not conforming to our product instructions, has been modified in any way, or has any serial number removed or defaced. Repair or attempted repair will void this
warranty. Our maximum liability under the terms of this warranty is limited to the purchase price of the product covered by the warranty.
The warranty is given under English Law. If any part of this warranty is deemed unenforceable (including any provision in which we exclude our liability to you) the
enforceability of any other parts of the warranty will not be affected. These terms do not reduce your statutory rights.
For Non-UK please contact Local Luceco Office for details. THESE TERMS AND CONDITIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
Eventually, you may want to replace this fitting;
Environmental Protection W.E.E.E (Wheelie Bin Symbol for EU ONLY)
This symbol is known as the "crossed-out" wheelie Bin Symbol". When this symbol is marked on a product or battery, It means that it should not be disposed of
with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment.
Only dispose of electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your
co-operation is vital to ensure the success of these schemes and for the protection of the environment.
Page 5
Tech Help Line
Visit our website at
0330 0249 279
UK -
www.luceco.com
+44 (0)1952 238 100
Non UK -
LBH.JH.10.2016
Installation & Operating Instructions
........................................ In Case of difficulty, contact the Installation Engineers:- Tel: .........................................................
Duration 3 hr Lamp Type - LED
First Year Second Year Third Year Fourth Year
Signed Date Signed Date Signed Date Signed Date
Visit our website at
Supplied by
LUCECO
www.luceco.com
Stafford Park 1 TF3 3BD ENGLAND
LED IP65
ATLAS BULKHEAD
NOTE – To comply with regulations, installation must be carried out by suitably
qualified competent person and in accordance with the current IEE Wiring
Regulations (BS7671) and Building Regulations. A copy of the instructions must
be left for the user/maintenance engineer for future reference.
For non-UK, please refer/consult local requirements
ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/
ISOLATED BEFORE COMMENCING INSTALLATION
ASSEMBLY AND INSTALLATION
• Suitable for use with mains voltage 220-240V AC
• This product must be disconnected before insulation resistance
testing of the lighting circuit
• Check for electrical cables and pipes before installation
Fifth Year
Signed Date
SUGGESTED METHOD OF INSTALLATION
The bulkhead is designed for mounting in any of the
following options: –
• Surface Wall Mounting
• Surface Ceiling Mounting
• Semi-recessed Ceiling Mounting
1. With the method of mounting chosen, remove the front
Diffuser and Trim Bezel, by twisting them in a Anti-clockwise
direction to the base. (1)
2. To drop the Driver tray, loosen two screws shown then lower
the gear tray. (2 - Gear tray and drop tray)
3. Incorporated within the base is a spirit level to help align the
bulkhead for wall mounting, in such applications the level
should be at the top. (3)
Page 6
Tech Help Line
0330 0249 279
UK -
+44 (0)1952 238 100
Non UK -
LBH.JH.10.2016
Installation & Operating Instructions
IP65 1 year 3 year
CRI
>
on site standard
50,000
RATED
WARRANTY WARRANTY
80
HOURS
UK ONLY
• To maintain the IP65 rating of the bulkhead, a suitable 20mm
cable gland should be used in conjunction with rubber insulated
cable to ensure the supply cable is sealed in the gland. Failure
to use a gland and/or rubber insulated cable may result
in water ingress
Surface mounted options may use rear cable entry for flush
mounting or there is facility for surface Conduit 'besa' box
mounting or side conduit entry. Semi-recessed Mounting utilises
the metal bracket included but may require access to the ceiling
void during installation
1
cable entry
points
cable entry
points
2
loosen
screws here
3
Page 1
