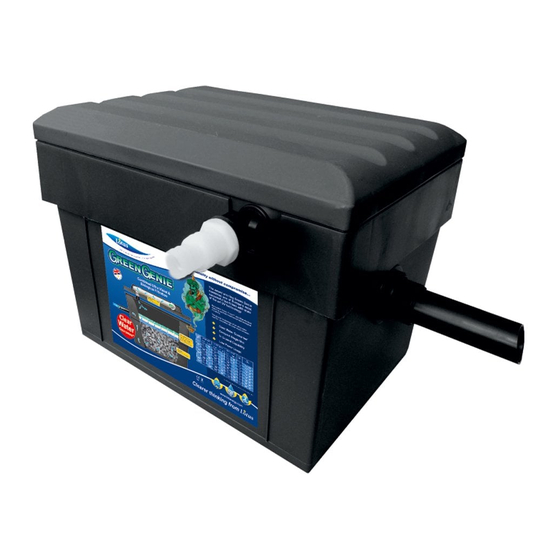

Lotus Green Genie 2500 Installation And Maintenance Instructions

to the hosetail. If a blue-violet coloured light is reflected on to the paper, then the lamp is working
correctly. The replacement should be a Germicidal Ultra Violet Lamp.
Remember the lamp emits harmful UV-C radiation so the burning lamp should never be
observed.
The UV Tube Should be replaced every year (Around March - April). Clean and check
the quartz tube for any sign of damage or deterioration - Replace if necessary. Also
Check the UV Housing/Body for any sing of deterioration and again, replace if
necessary.
Spare Parts
For optimum performance we recommend the use of genuine Green Genie
replacement parts. If you have difficulty obtaining parts please contact us.
Model UVC Product Quartz Product
Green Genie Wattage Code Sleeve Code
2500 7 UVT7 8 QS8
3500 10 UVT10 8 QS8
6500 18 UVT18 8 QS8
12500 18 UVT18 8 QS8
24000 25 UVT25 15 QS15
48000 2 x 25 UVT25 2 x 15 QS15
UV Compartment
Inlet
Spray Bar
Foam Set
Flocor™
Your Green Genie filter is guaranteed against failure due to defective workmanship or materials for a period of 12
months from the date of purchase. Failure caused by accidental damage, misuse, neglect or used in liquids other
than cold water are excluded from this guarantee. If a failure occurs during this period, a purchase receipt must
be produced. The unit will be either repaired or replaced at the companies option. The company cannot accept
any additional claims for consequential losses. All "ware and tear" items are excluded from this guarantee i.e
Filter Media, UV Lamp, Quartz Tubes and O Rings. This guarantee does not affect your statuary rights.
Dealers Stamp:-
This unit is manufactured
in the EEC and conforms to CE
Regulations
Lotus Water Garden Products Ltd.
Eastl e i g h,
Uni t ed Ki n gdom.
Replacement Product Flocor Product
Foam Set Code Media Code
2000 Single TFGS2000 Pack 1000 FLCS
3/6000 Set TFGS2000S Pack 1000 FLCS
3/6000 Set TFGS2000S Pack 1000 FLCS
12000 Set TFGS12000S Pack 1000 FLCS
24000 Set TFGS24000S Pack 2000 FLCDIY
48000 Set TFGS48000S Pack 2000 FLCDIY
Guarantee
Combined Ultra Violet
& Pond Filtration System
Filter Maintenance
Kit Code
FMKGG25
FMKGG35
FMKGG65
FMKGG125
FMKGG24
FMKGG48
Safety Instructions
!
Outlet
Installation
!
Electrical
!
Maintenance
!
Spare Parts
!
Warranty
!
Your filter may take 3-6 weeks to fully mature with
beneficial bacteria.
Important! Plastic fittings have been tightened to a "Factory Setting", however
!
in the course of transit and retail display, some fittings may require further
tightening. Hand tighten only.
G G G G G G G G G G G G
G G
REEN ENIE REEN ENIE REEN ENIE REEN ENIE
REEN
INSTALLATION AND
MAINTENANCE INSTRUCTIONS
2500
3500
6500
www.lotuswgp.com
ENIE
12500
24000
48000
