Arrow Precision Grizzly Manual

Contents of the box
Grizzly bow pre-strung
2 Arrows
Arrow holding bracket
2 x Arrow holder bolts
Allen key set

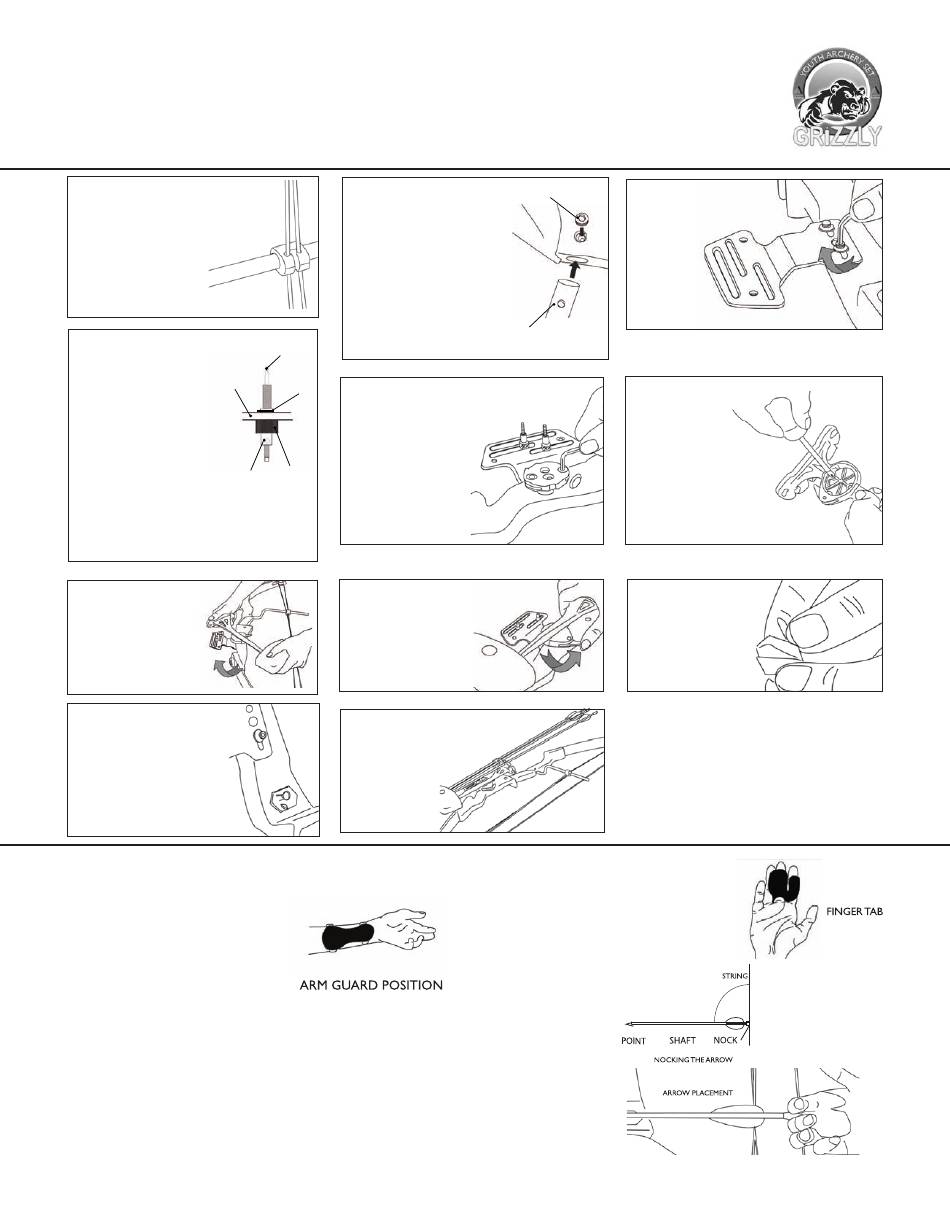

Stage 1
Slide the cable guard
onto the cable guard
bar as shown. The
cables must be firmly
located in the groves
in the cable guard.
Stage 4
Remove the two sight
pins from the packet.
Sight pin
bracket
Unscrew the sight pins
and reassemble them
as shown. The sight
pins are located in
each of the two short
slots on the
Locking
sight mount. The pins
nut
must be positioned
with the red tip on
the side that you are
looking down to sight.
Stage 7
Attach the quiver to
the mount using a
twisting motion.
Stage 10
Attach the arrow
support to the bow
just above the handle.
Align the hole in the
arrow support with
the hole in the body.
STEP 12:
BEFORE SHOOTING
THE BOW
The arm guard
Please use the arm guard as shown. This
will protect you from the string grazing
your arm when the string is released.
STEP 13:
THE ARROW
Check your arrow before each shot The nock of the arrow MUST be positioned
so the index vane (odd colored vane) faces away from the string. The point of the arrow
will be in front of the user facing the target.
NOCKING THE ARROW
Rest the arrow on the arrow support of the bow. The nock of the arrow should be tight
against the string. The arrow should be at 90 degrees to the string.
Please note that you will require a Phillips
Finger guard
screw driver to assemble this bow.
Arm guard
IN THE UNLIKELY EVENT YOU ARE MISSING ANY OF THESE PARTS
2 x Sight pins
CALL ARROW PRECISION, LLC IMMEDIATELY (610) 437-7138
Sight pin bracket
or Email: sales@arrow-precision.com
2 Sight pin bracket bolts
for immediate assistance.
Stage 2
Insert the cable guard bar
into the hole in the body
as shown. The bar must
be positioned with the
longest length towards
the quiver. Align the hole
in the bar with the hole in
the body. Insert the grub
screw and tighten with an
Allen key.
Sighting tip
Washer
Stage 5
On the opposite side
of the riser to the site
mount is the quiver
mount. Attach the
quiver mount to the
Knurled
nut
riser using the two
Allen head counter
sink screws provided.
Stage 8
Flip the lever over
fully to lock the
mount and quiver
together.
S
tage 11
Add arrows to
the quiver, your
bow is now
ready to be
used.
Grub screw
Stage 3
Attach the
sight mount
using the
Allen head
bolts
provided.
Cable guard bar
Stage 6
Attach the quick
detach fitting to
the quiver. This
step will require
a Phillips screw
driver.
Stage 9
Remove the plastic
backing from the
arrow support
adhesive patch.
The finger tab:
Firstly attach the finger tab on the palm
side of the hand used to draw the bow.
The finger tab included with the bow
protects from rubbing by the bow
string when it is released. It is worn by
slipping it on over the second and third
finger of your hand.
PLEASE RETAIN
INSTRUCTIONS
FOR FUTURE USE
90 o
