Chord
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chord v2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Qu-Bit Electronix Chord v2

  • Page 1 Chord...

  • Page 2: Table Of Contents

    Contents Description Specifications Installation Marked Diagram Functional Overview 1. Frequency ....... . . 1a.
  • Page 3 Creating User Chords on the SD Card ....Creating User Chords on the Chord ....Accessing User Wavetables .

  • Page 4: Description

    Description Polyphony is back! Chord v2 is a plug and play solution for bringing musical polyphony to your system. It contains four oscillator voices, a multitude of waveforms, and intelligent tuning functionality. This new version features an expanded sonic palette and feature set in half the size of the original.

  • Page 5: Specifications

    Specifications Depth: 23mm Width: 14HP Current Consumption: • +12V: 122mA • -12V: 25mA...

  • Page 6: Installation

    Installation T o install, locate 14HP of space in your Eurorack case and confirm the positive 12 volts and negative 12 volts sides of the power distribution lines. Plug the connector into the power distribution board of your case, keeping in mind that the red band corresponds to negative 12 volts.

  • Page 7: Marked Diagram

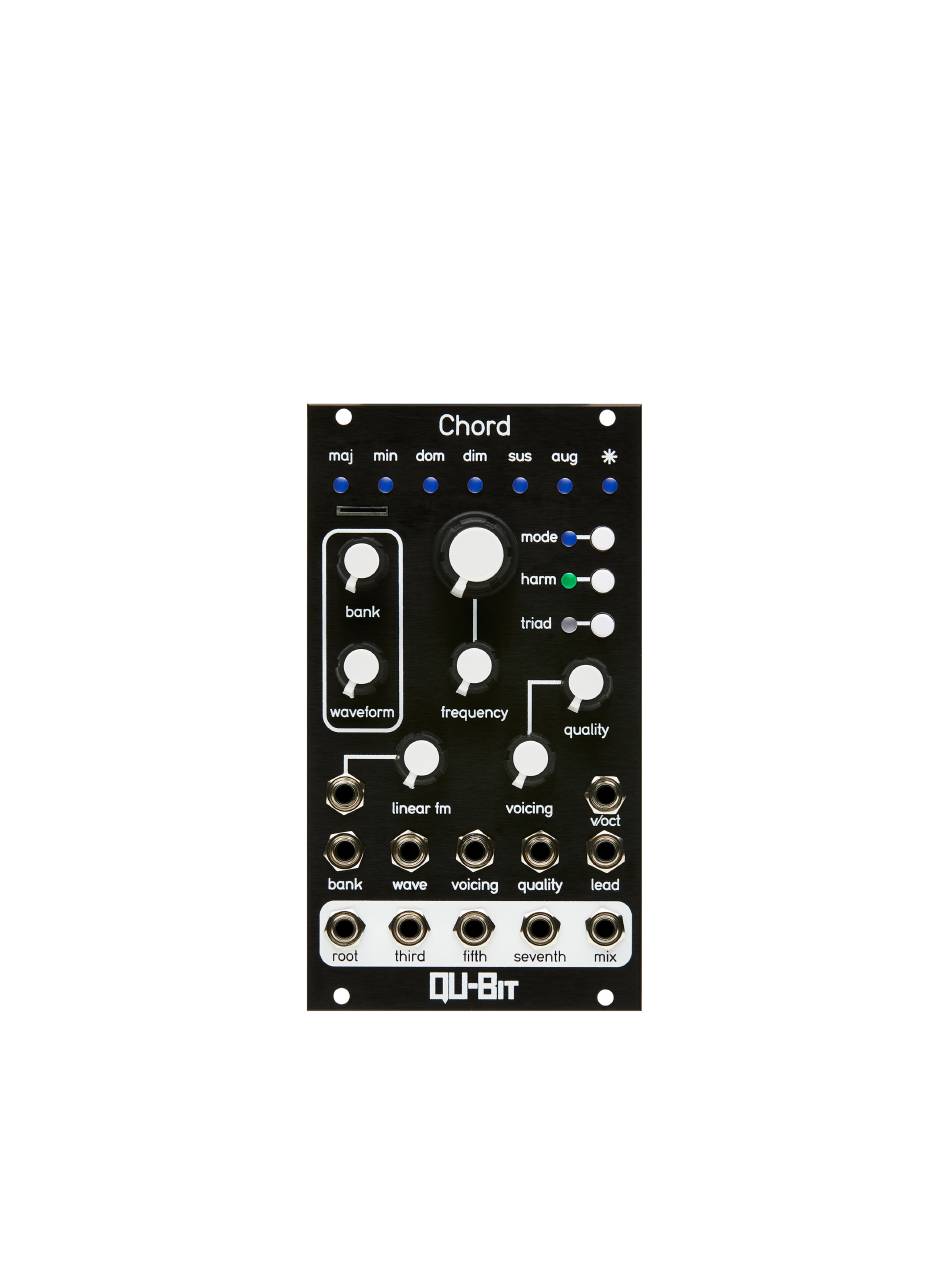

    Marked Diagram...

  • Page 8: Functional Overview

    Functional Overview 1. Frequency Controls the frequency of the root note of the chord. 1a. Coarse T une 7 Octaves of range 1b. Fine T une +/- a perfect fourth from center. 2. Bank Controls which bank of wavetables is selected. When the knob is turned, the LED bar at the top will indicate which bank is currently selected for 750ms in white.

  • Page 9: Waveform

    Internal Wavetable Banks were created from the AKWF waveforms available at: AKWF - Github For more information on creating, and loading additional waveform banks see User Waveta- bles section below. 3. Waveform Controls the selected waveform within the current bank. Waveforms are blended smoothly into each other.

  • Page 10: Mode

    CV Range: -5V to +5V . CV is added to current knob position. 7. Mode Controls the behavior of the Lead input Jack. When the LED is off the Lead Jack is disabled. When the LED is blue Melody mode is selected. The Seventh Output becomes a separately controllable voice.

  • Page 11: Harm

    The V/Oct input will control the root output. The Lead input will control the third output. The Voicing input will control the fifth output. The Quality input will control the seventh output. 8. Harm Controls the Auto-Harmonization, and Quantization settings. This will quantize the input V/Oct to the selected Harm mode’s scale, and automatically adjust the chord quality to stay within the key.

  • Page 12: V/Oct

    When the LED is blue, the seventh is omitted from the mix, and the amplitude is increased to compensate. This is especially useful when using the Lead jack to create a melody separate from the chord progression. 10. V/Oct 0V to 5V input for adjusting the root of the chord. 11.

  • Page 13: Edit Functions

    Edit Functions Accessing User Chords User chords are stored on the SD card. The bank will be filled with empty chords if no SD card is inserted. T o access user chords, hold the Harm button for 3 seconds. This will disable any auto-harmonization, and the Harm LED will illuminate white. Quality will select from one of twelve user chords.

  • Page 14: Creating User Chords On The Chord

    CHORD_2=3,7,10 CHORD_3=4,7,10 CHORD_4=0.2,0.4,0.6 Creating User Chords on the Chord T o create a new chord, first access user chords, and select the chord you want to replace. Then hold the Harm button, and press the Mode button. This will enter the chord editor for the selected chord.

  • Page 15: Sd Card Information

    SD Card Information chord_config.txt A number of additional settings can be configured by editing the config.txt file on your SD card. Here are the available options. • QUANTIZE_AUTOHARM • LONGFORM_USERBANK • LFO_MODE • LEAD_OFFSET QUANTIZE_AUTOHARM When enabled, this quantizes the V/Oct and Lead inputs to the appropriate scales when Harm is enabled.

  • Page 16: Lead_Offset

    Default Value: 0 LEAD_OFFSET This value is an offset in octaves for the lead input. Value can be positive or negative. Setting this to 1 will set the default lead input to 1 octave above the root output. Setting this to -1 will set the default lead input to 1 octave below the root input. Default Value: 0 Custom Chords Custom chords are loaded/stored on the SD card as well.

  • Page 17: Calibration

    User wavetables can be created using the Synthesis T echnologies WaveEdit software. Each .WAV file will be loaded as 8 banks of 8 waveforms. A config setting in the config.txt file can be changed to map all 64 waveforms to the waveform knob, 8 WAV files can be loaded this way.

  • Page 18: Appendix

    Appendix Voicings Table Here are the available voicings on the knob: Voicing Voicing Seventh Index Name Root Factor Third Factor Fifth Factor Factor Closed Drop 2 Root Position Drop 3 Root Position First Inversion Drop 3 First Inversion Drop 4 First Inversion Drop 4 Second...
  • Page 19 Voicing Voicing Seventh Index Name Root Factor Third Factor Fifth Factor Factor Spread Second Inversion Spread Third Inversion Big Spread Energy...

  • Page 20: Quality Table

    Quality Table The list of available qualities, and their indications are listed below. Quality Third Fifth Seventh Major 7 Major 3rd (+4 Perfect 5th (+ 7 Major 7th (+11 semitones) semitones) semitones) Minor 7 Minor 3rd (+3 Perfect 5th (+ 7 Minor 7th (+10 semitones) semitones)
