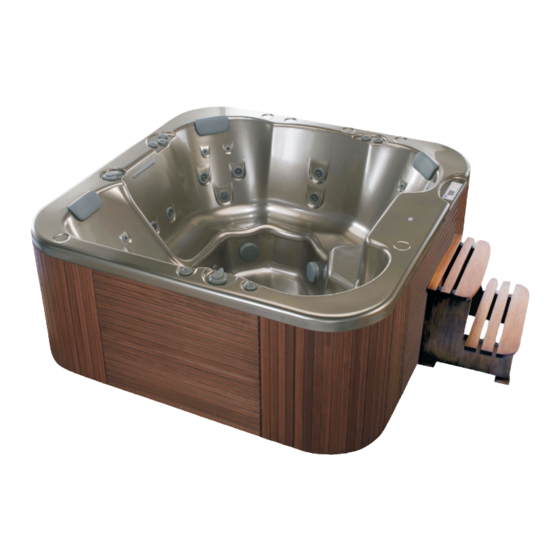

Summary of Contents for GALA SPA YARD

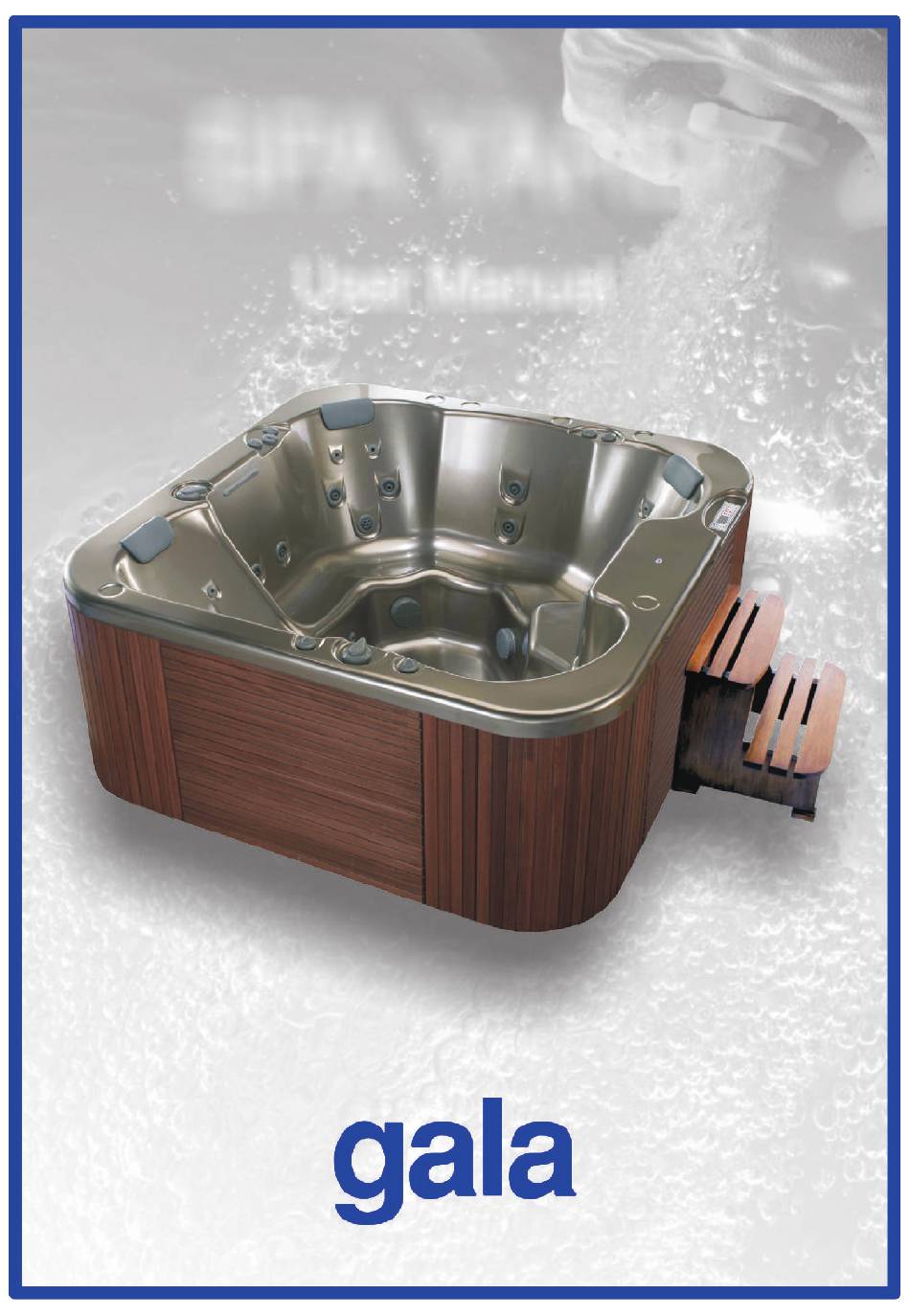

- Page 1 SPA YARD User Manual...
-
Page 2: Table Of Contents
SPA YARD TABLE OF CONTENTS Introduction ........................1. Hydromassage System ..................... 2. Digital Panel Operation ................... 7-20 2.1. Control System ....................2.1.1. Initial Start-Up ....................2.1.2. Control Panel and Keypad ................2.1.3. Up and Down Keys ..................2.2. Main Functions .................... -
Page 3: Introduction
Before using the hydromassage, please carefully read the corresponding sections of this manual, which include the necessary instructions and recommendations for using your Spa. Please contact your distributor if you require further information. We are sure that, by following these criteria, you will obtain the utmost enjoyment from your GALA Hydromassage. -
Page 4: Hydromassage System
SPA YARD 1. HYDROMASSAGE SYSTEM The Spa has two massage systems: water massage and air massage. Water massage: Jets that produce an air and water mix: Minijet: small jet that provides a vigorous Rotating Jet: High- direct massage. capacity rotating jet. - Page 5 SPA YARD By turning the jets (A, B, C) to When the Spa is not in use, the bodies of the Jets (A, B, the left or right you can increase C) may be extracted for cleaning. or decrease the intensity of the hydromassage.
- Page 6 SPA YARD Fig.2 ACTIVATED JETS ACTIVATED JETS...
-
Page 7: Digital Panel Operation
SPA YARD 2. DIGITAL PANEL OPERATION 2.1. CONTROL SYSTEM 2.1.1. INITIAL START-UP Before connecting the Spa to the electrical current, you must check that: • The water level in the Spa is sufficient (the level should half cover the Skimmer inlet). -
Page 8: Control Panel And Keypad
SPA YARD 2.1.2. CONTROL PANEL AND KEYPAD As a standard view, the keypad display shows the time and the water temperature inside the Spa. The digital panel must be in standard status to access the available functions. The meaning of the main icons that might appear on the display are as follows:... -
Page 9: Main Functions
SPA YARD 2.2. MAIN FUNCTIONS This section describes the Spa's main functions, which are directly activated by pressing the specific key. 2.2.1. WATER HYDROMASSAGE You can turn on the water hydromassage using the keys and/or the digital panel. The activation mode changes depending on whether it is a one- or two-speed hydromassage. -
Page 10: Air Hydromassage
SPA YARD 2.2.2. AIR HYDROMASSAGE key . Switching the air hydromassage on and off using the Pressing the key once activates the air hydromassage (the icon will appear on the display). Pressing the key again stops the air hydromassage (the icon will disappear from the display). -
Page 11: Eco Energy-Saving Mode
SPA YARD N.B.: •The light will be automatically switched off after 2 hours of continuous operation, if it is not first switched off by the user. • The light cannot be switched on if the water level is below the minimum. -
Page 12: Filtering
SPA YARD N.B.:If you do not press a key for five seconds you will leave the programming process without making any changes. This energy-saving system will be interrupted when a hydromassage function is activated (the icon will flash on the display) and automatically re-started 40 minutes after the last function has ended. -
Page 13: Ozone
SPA YARD Steps for programming the filter cycle using the keypad in standard status: •Press the key: Fdx appears in the display (x indicates the value of the duration in hours). •Programme the time using the keys. •Confirm the value using the key. -
Page 14: Water Temperature Control
SPA YARD 2.2.6. WATER TEMPERATURE CONTROL You can programme the Spa's water temperature, which may vary by ± 0.5°C from the programmed value. The water is maintained at your desired temperature by means of a water heating element. Water temperature characteristics: •Standard range: minimum 15°... -
Page 15: Secondary Functions
SPA YARD 2.3. SECONDARY FUNCTIONS 2.3.1. ACCELERATED FILTER FUNCTION (boo) This function activates an accelerated filtering process. To activate the function, hold the key down for 5 seconds. The function will be activated when "boo" appears in the display. This function consists of 2 phases: During the first minute, hydromassages 1 and 2 will start up at high speed, along with the ozone generator. -
Page 16: Keypad Lock
SPA YARD 2.3.4. KEYPAD LOCK This function has two modes: •Lock P (partial lock): this allows the activation of the water hydromassages, the air hydromassage and the spotlight. • Lock F (full lock): all keys are disabled. When one the two modes is activated the icon is solid. -
Page 17: Safety Functions
SPA YARD Steps to raise the value of the water temperature above 40º C: •Use the key to set the value at 40º C. •Hold down the key for 5 seconds: the display will show Or0.0, where 0.0 represents the value to be programmed. -
Page 18: Protection Against Overheating
SPA YARD When a temperature below 6º C is detected, the pump will automatically start and run for 1 minute. If there is a risk of freezing, the following instructions must be taken into account: -The inside of the Spa, as well as the pipes, pump and filters must be completely drained of water. -
Page 19: Alarms
SPA YARD 2.5. ALARMS This section describes the alarms that the control panel can detect and display to the user by means of a signal on the keypad display. 2.5.1. PRESSURE SWITCH The pressure switch function controls the water flow through the heater. -
Page 20: Overheating Of The Spa Water
SPA YARD 2.5.4. OVERHEATING OF THE SPA WATER The temperature sensor function controls the water temperature in the Spa to suppress the functioning of all the loads in the following case: SUPPRESSED DISPLAY CONDITIONS TO DISPLAY INDICATION INDICATION FUNCTIONS STOP THE ALARM... -
Page 21: Maintenance
Upon the first signs of wear, the filters must be changed. New filters can by purchased from an authorised Gala dealer. -Replace the filters and the internal cover. -Replace the external cover by sliding it vertically downwards (a). -
Page 22: Acrylic Sheet
SPA YARD 3.3. ACRYLIC SHEET Special precautions must be taken during cleaning and maintenance of the Spa. -Do NOT use abrasive or aggressive products for cleaning the Spa, as they could damage the surface. Do not use alcohol or any other alcohol-based chemical product for cleaning the plastic parts, such as the electronic panel. -
Page 23: Troubleshooting Table
SPA YARD 5. TROUBLESHOOTING TABLE SYMPTOM POSSIBLE CAUSE MEASURES TO TAKE Winter Mode protects If there is a risk of freezing, the series of precautions On several the Spa from freezing listed in section 4.1 must be taken. occasions, the... - Page 24 This information and the measures are provided for guidance purposes only and may be modified without prior notice. This document replaces and cancels any previous documents. Gala respects nature, and therefore all our manuals are printed with papers that help to maintain the environment, using only ECF pulp derived from renewable forests.
