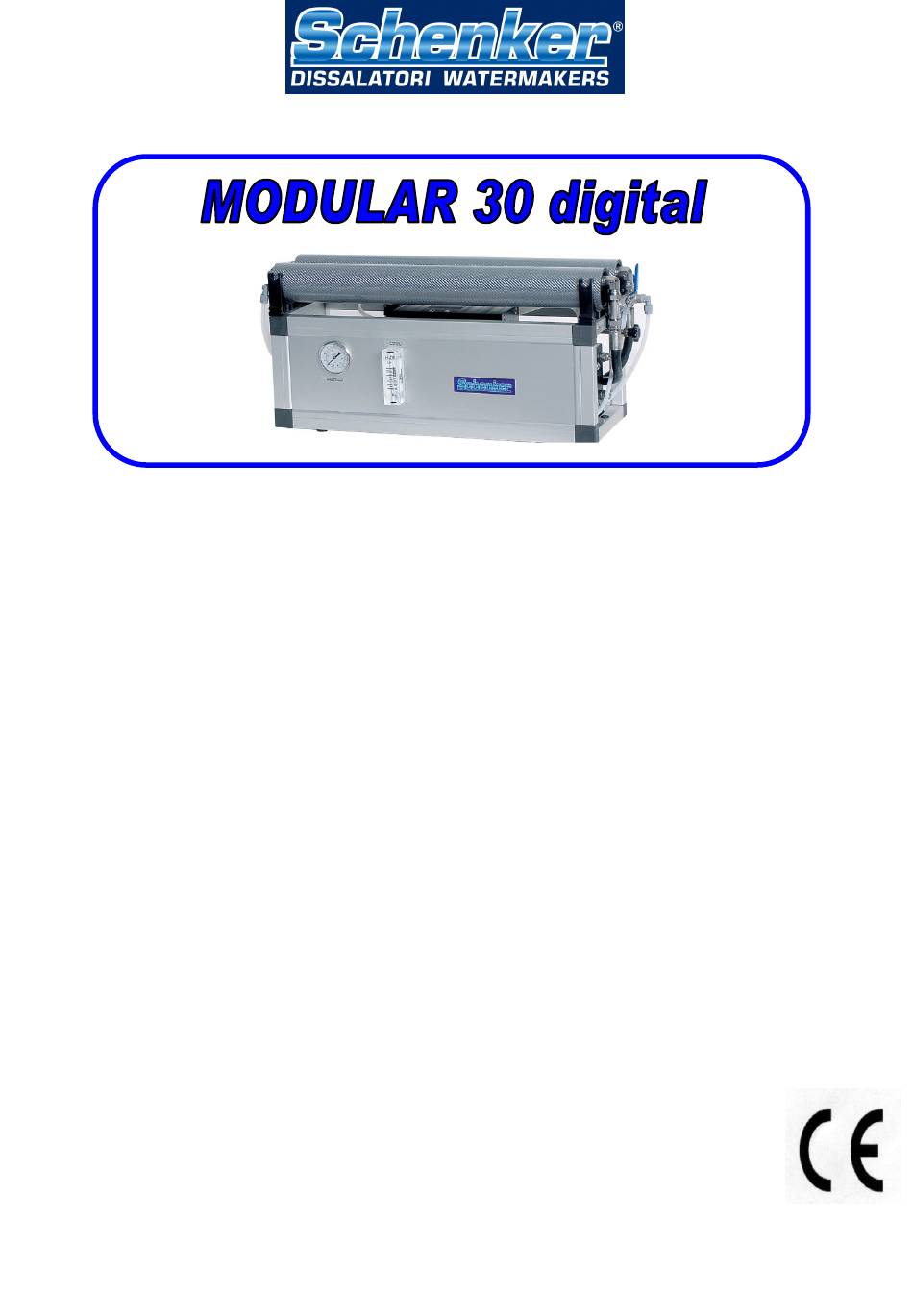

OPERATION AND MAINTENANCE MANUAL
1. Introduction
1.1. General
1.2. Technical data
1.3. System description
2. Installation
2.1. General criteria and material required
2.2. Components mounting
2.3. Water intake
2.4. Hydraulic connections
2.5. Electric connections
3. Operating procedures
3.1. Remote panel commands
3.2. First start-up procedure
3.3. Normal operations
4. Maintenance
4.1. Shutdown procedure
4.2. Maintenance and recurrent inspections
4.3. Troubleshooting
5. Safety cautions
6. Warranty
1
Rev. 2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the MODULAR 30 digital and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schenker MODULAR 30 digital

Summary of Contents for Schenker MODULAR 30 digital

  • Page 1 OPERATION AND MAINTENANCE MANUAL 1. Introduction 1.1. General 1.2. Technical data 1.3. System description 2. Installation 2.1. General criteria and material required 2.2. Components mounting 2.3. Water intake 2.4. Hydraulic connections 2.5. Electric connections 3. Operating procedures 3.1. Remote panel commands 3.2.
  • Page 2 1. Introduction 1.1 General Thank you for choosing a Schenker Watermaker which we know will give you years of service, making life onboard more enjoyable. To ensure the maximum efficiency of your Schenker Watermaker and its trouble free working, Please read this manual and to keep it onboard for reference.
  • Page 3 1. Introduction 1.2 Technical data WATERMAKER GROUP Dimensions Length: 68 cm Width: 20 cm Height: 30 cm Net weight: 24 Kgs. Connections: Seawater intake holder for hose int. diam. 16 mm. Salt water outlet holder for hose int. diam. 16 mm. Fresh water outlet compression fitting for hose int.
  • Page 4 This action will not be required in normal circumstances as the unit has been pre calibrated at the factory. Before changing the settings please call a Schenker Service Point. The grey box contains the power relays that activate the pumps electric motors.
  • Page 5 WATERMAKER GROUP. 1. Reverse osmosis membranes 2. Manometer 3. Flow meter 4. Depressurization valve The watermaker group is constituted of the following components: The Reverse osmosis membranes, inside the silver high-pressure vessel are used to separate the intake high-pressure seawater into two flows: one for the salt-water waste and one for fresh water production.
  • Page 6 Depressurization valve Reset valve Positioner Probe (pressure switch). It is a little steel device, mounted on the aluminum structure. It is connected to the computer throw the cables PS / PS . Its function is to check the cycling of the machine .
  • Page 7 2. Installation 2.1 General criteria It is important to plan carefully the activity prior to start the installation works, evaluating any possible alternative solution. The fundamental choices to make are: Finding of seawater intakes and any necessary fittings. Positioning of main units . Positioning of pumps operation automatic circuit breakers.
  • Page 8 2. Installation 2.3 Water intakes The necessary hydraulic intakes are: • Seawater intake It is ideal a specific sea water intake, size ¾” min. in a central position, well under the water surface even when the vessel is well heeled over. The skin fitting is recommended.
  • Page 9 2. Installation 2.4 Hydraulic connections Exhausted discharge Plumb to pressure side of boat fresh water Reinforced hose PN15 min int. dia. 16 mm. “Armovin” type hose int. dia. 16 mm. Pressurized fresh water valve Pump Elecrovalve Non return valve 5 micron filter Net filter Swan neck upward - Disharge Water inlet...
  • Page 10 PUMP CONNECTIONS: Connect the in/out hose to the pump as follows: WATERMAKER CONNECTIONS: IN – (sea water inlet from the pump) Make use, for this connection, of the external holder located on the left side of the watermaker (marked IN). OUT (Discharge outboard) Make use, for this connection, of the holder located on top of the pressure amplifier, inside the watermaker unit (marked OUT).
  • Page 11 2.Installation 2.5 Electric connections Remote control panel mounting The remote control panel has the following dimensions: width 135 mm. height 116 mm. It can be flush mounted on any surface, providing the area behind is free of moisture and condensation and there is enough depth to house the rear part of the panel (approx. 8 cm.). To cut on the mounting surface will have the following dimensions: width 115 mm.
  • Page 12 Wiring connection diagram Signal pressure switch Electrovalve...
  • Page 13 3. Operation 3.1. Remote panel commands KEYBOARD FEATURES The panel keyboard has a total of four push button. The display light switches off after 15 minutes of not use. Pushing any button, the display will light again, without activate any other command.
  • Page 14 Menu options: • WORKING TIME (timer) It allows to select the working time of the watermaker (1-6 hours). The timer is activated if the START button is pushed for more than 3 seconds only. • BY-PASS It allows to exclude the sensor (signal pressure switch) that detects the correct cycling of the ERS.
  • Page 15 The message must be acknowledged pushing STOP. This messages means that an hydraulic block of the machine occurred, and then the pumps has been switched off as safety procedure. In this case is suggested to perform a reset procedure and investigate on the possible hydraulic origins of the problem.
  • Page 16 3. Operation 3.3. Normal operation procedure • It is always strictly recommended to select the automatic washing, pushing WASHING. Production without timer. -Push shortly the button START. The control will open the depressurization valve, helping the inlet pump hose to get filled with water.
  • Page 17 ATTENTION If the watermaker get air, (or if some other problem occurs) the automatic hydraulic valve may stop in a central position. This means that pressure on both sides of the valve are the same and the unit is effectively stalled and has to be manually restarted. In this case the working pressure goes up suddenly (up to 9 Bar) and the pumps are switched off from the pumps pressure switch.
  • Page 18 Chemical Cleaning Kits: Schenker No 1 is an acid based organic cleaner. This is used for 'pickling' the watermaker when not in use and as part of the general cleaning process. See 4.1 Shutdown procedure. Schenker No 2 is an alkaline base organic cleaner. If the watermaker has been left standing without...

  • Page 19: Operation

    4. Maintenance 4.2 Verifications and periodic maintenance The following periodic procedures are to be followed to maintain trouble free operation: OPERATION EVERY PROCEDURE Check and clean Strainer check and Every 5 days cleaning Every 15-20 days in Unscrew anticlockwise the filter average conditions (4 holder.

  • Page 20: Troubleshooting

    Dirty pump filter Replace cartridge Pump start but stop at high Dirty membranes Perform cleaning cycle pressure Trouble in the cycling system Contact a Schenker service point Pump pressure switch not Increase the pump pressure calibrated switch calibration (see pag. 4)

  • Page 21: Safety Warnings

    Do not locate the pump near objects either inflammable or that can deteriorate if exposed to high temperature. Check if the plant is correctly installed eventually contacting a Schenker service point. Verify that the hoses used for installation are in keeping with the indicated specifications.

  • Page 22: Warranty

    If non-authorized personnel perform the disassembly, every obligation of this guarantee will automatically lapse. Schenker Italia can not be held liable for any direct or indirect damage caused by the malfunctioning of the equipment, limiting its responsibility to the repair and...
