Installation and Operating Instructions
Lumiglas luminaire USL 07-Ex
II 2G Ex de IIC T3/T4/T6/120°C Gb
II 2D Ex tb IIIC T80/T120/T130/T195°C Db
• Important, please note:
Sight glass luminaires are specifically designed and solely
intended for mounting with or onto flanged sight glass
fittings. Under no circumstances should a sight glass
luminaire be used as a substitute for the cover flange or the
complete sight/light port or as a lid or cover for vessel
openings. Luminaires for use in potentially explosive environ-
ments must be mounted, installed and serviced by staff who
have the relevant qualifications and have been properly
trained for this type of work.
Please observe the data set out in the EC type-examination
certificate!
• General operating conditions:
- Independent of pressure/vacuum inside the vessel
- Approved for use in Ex environments:
Gas: Zones 1 and 2; Dust: Zones 21 and 22
- Approved for use in ambient temperatures of between
-20°C and +60°C or +40°C, depending on the lamp power
(see type plate and temperature classification parameters).
• Electrical data, general:
- Voltage, power, temperature class and protection rating
are shown on the type plate.
- Ex approval acc. to EC type-examination certificate:
BVS 08 ATEX E 136
II 2G Ex de IIC T3/T4/T6/120°C Gb
II 2D Ex tb IIIC T80/T120/T130/T195°C Db
- The variant with 20 VA built-in transformer is PTC-protected;
no fuse replacement necessary.
- Variants with 50 VA built-in transformer are protected by
a micro-fuse (T0.315 A for 230 V/240 V; T0.630 A for 120 V).
- Power supply: AC or DC, depending on lamp fitted
- Caution: Only alternating current should be used for
luminaires with integrated transformer or high-voltage
timer.
- Warning: Over-voltage will cause premature lamp failure!
- 10% voltage tolerance is admissible.
• Parameters/Temperature classification:
Type USL 07-Ex Nom.
Voltage
Variant
(230 V/12 V) 20 W 230 ,
24 .
(24 V) 20 W
230 ,
(230 V/12 V) 35 W
240 ,
(240 V/12 V) 35 W
(12 V) 50 W 12 .
24 .
(24 V) 50 W
24 .
(24 V) 50 W FL
(120 V/12 V) 50 W 120 ,
(230 V) 50 W 230 .
230 ,
(230 V/12 V) 50 W
240 ,
(240 V/12 V) 50 W
(230 V) 75 W 230 .
* Incl. connecting cable
F.H.Papenmeier GmbH & Co. KG · division Lumiglas
Talweg 2 · 58239 Schwerte · GERMANY
phone: +49-2304 205-0 · fax: +49-2304 205-206
info.lumi@papenmeier.de · www.lumiglas.de
-20°C ≤ T ≤ +40°C
a
Without terminal box* With terminal box
2G T6 2D T80°C 2G T6
2G T6 2D T80°C 2G T6
2G T4 2D T130°C 2G T4
2G T4 2D T130°C 2G T4
2G T4 2D T130°C 2G T4
2G T4 2D T130°C 2G T4
– – 2G 120°C 2D T120°C
2G T3 2D T195°C 2G T3
2G T4 2D T130°C 2G T4
2G T4 2D T130°C 2G T4
2G T3 2D T195°C 2G T3
2G T3 2D T195°C 2G T3
0158

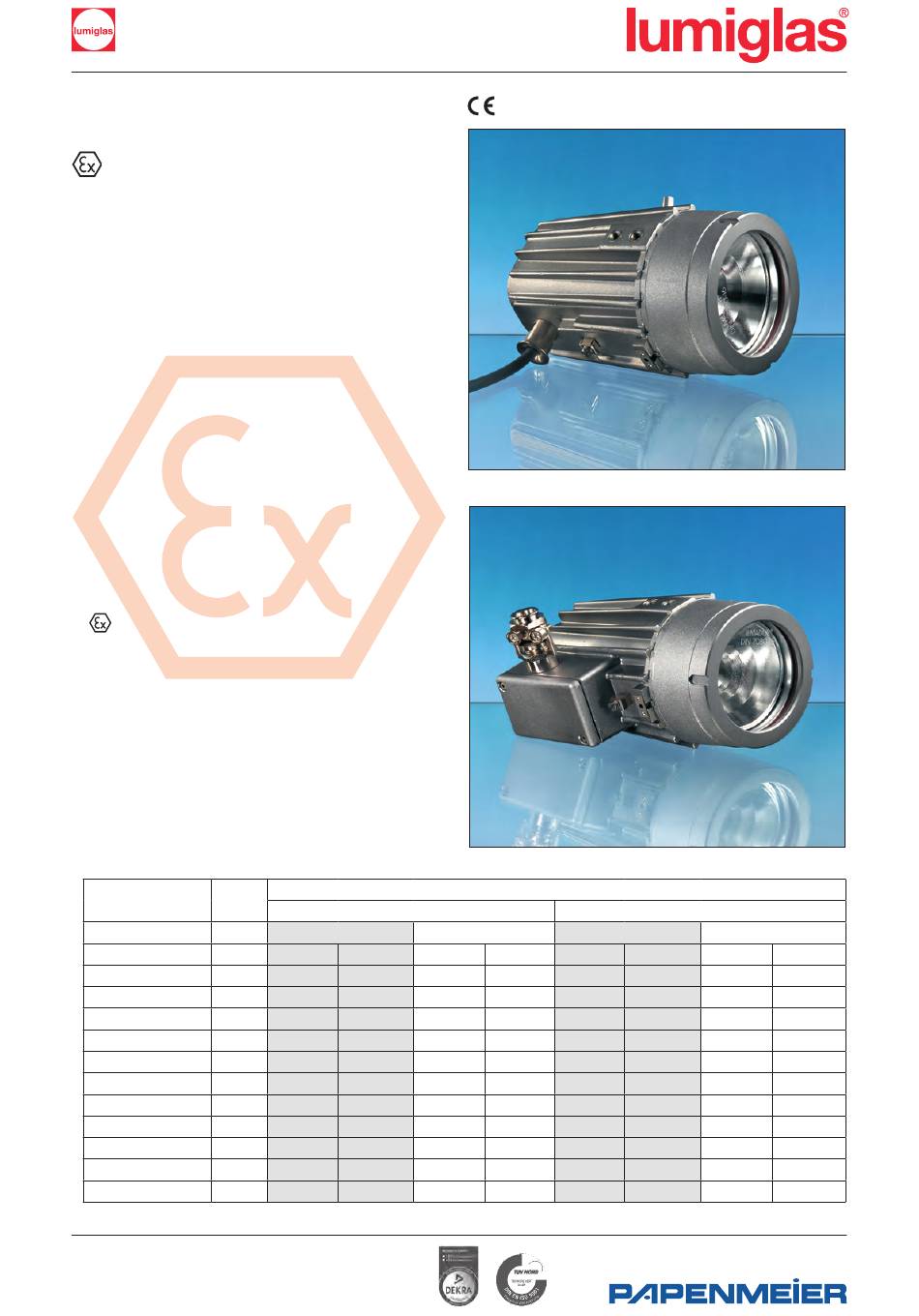

Lumiglas luminaire USL 07-Ex without terminal box
Ambient temperature range
Without terminal box*
2D T80°C –
2D T80°C –
2D T130°C –
2D T130°C –
2D T130°C 2G T3 2D T195°C
2D T130°C 2G T3 2D T195°C
–
2D T195°C –
2D T130°C 2G T3 2D T195°C
2D T130°C –
2D T195°C –
2D T195°C –
0093.051.00 c
-20°C ≤ T ≤ +60°C
a
With terminal box
– – –
– – –
– – –
– – –
– –
– –
– – –
– – –
– –
– – –
– – –
– – –
