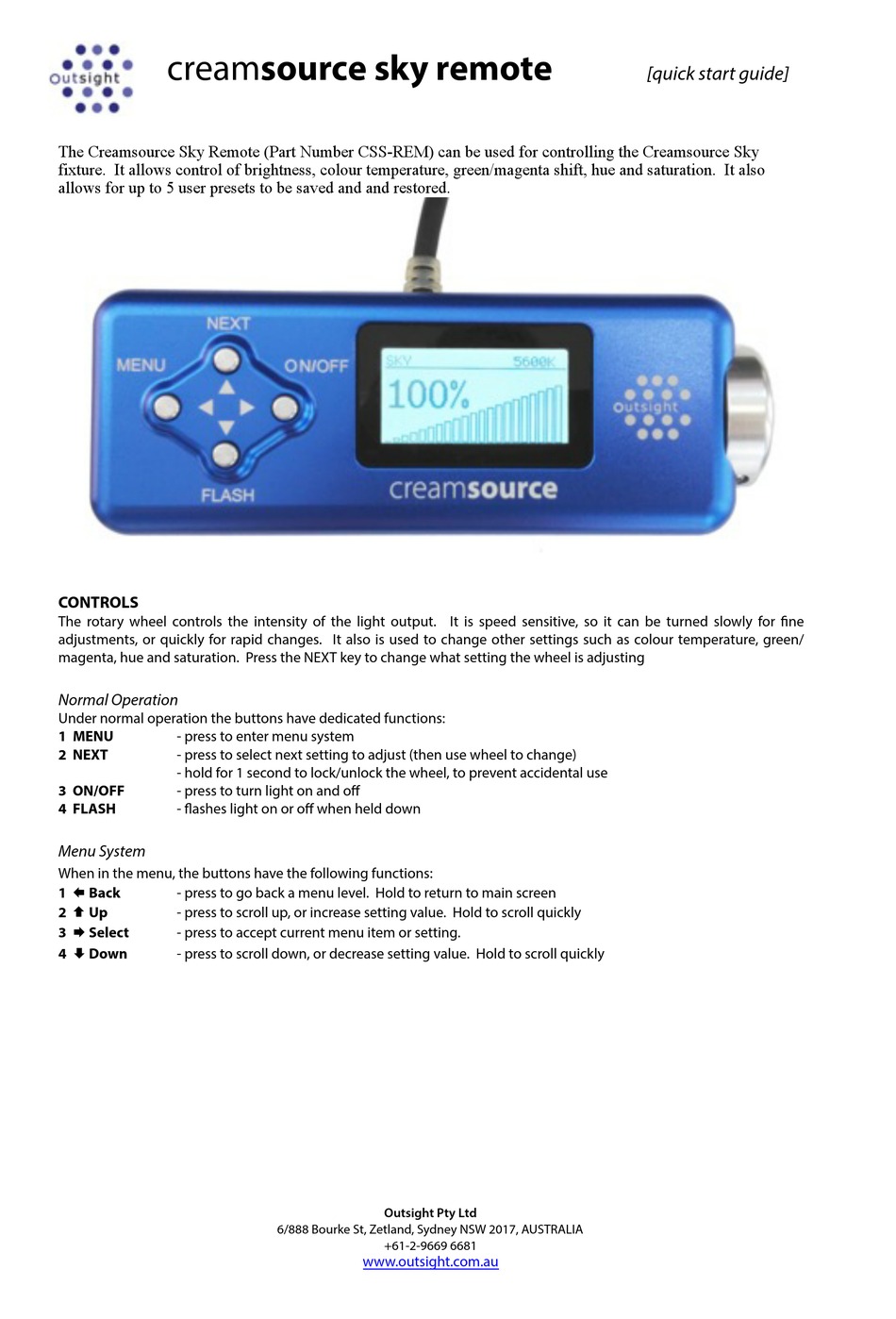

Outsight Creamsource Sky Remote CSS-REM Quick Start Manual

creamsource sky remote
The Creamsource Sky Remote (Part Number CSS-REM) can be used for controlling the Creamsource Sky
fixture. It allows control of brightness, colour temperature, green/magenta shift, hue and saturation. It also
allows for up to 5 user presets to be saved and and restored.
!

CONTROLS

The rotary wheel controls the intensity of the light output. It is speed sensitive, so it can be turned slowly for fine
adjustments, or quickly for rapid changes. It also is used to change other settings such as colour temperature, green/
magenta, hue and saturation. Press the NEXT key to change what setting the wheel is adjusting

Normal Operation

Under normal operation the buttons have dedicated functions:
1 MENU - press to enter menu system
2 NEXT - press to select next setting to adjust (then use wheel to change)
- hold for 1 second to lock/unlock the wheel, to prevent accidental use
3 ON/OFF - press to turn light on and off
4 FLASH - flashes light on or off when held down

Menu System

When in the menu, the buttons have the following functions:
1 Å Back
- press to go back a menu level. Hold to return to main screen
2 Ç Up
- press to scroll up, or increase setting value. Hold to scroll quickly
3 Æ Select
- press to accept current menu item or setting.
4 È Down
- press to scroll down, or decrease setting value. Hold to scroll quickly
Outsight Pty Ltd
6/888 Bourke St, Zetland, Sydney NSW 2017, AUSTRALIA
+61-2-9669 6681
www.outsight.com.au
[quick start guide]
