IMTB2019V01
®
EN
ES
FR
TANKBOT
(HW09, HW10)
INSTALLATION
MANUAL
MANUAL L
MANUAL DE INSTALACIÓN
MANUEL D'INSTALLATION
www.opengrow.pt
© 2019 Open Grow, LDA. All rights reserved.

Advertisement

loading

Summary of Contents for Open Grow GroLab TankBot

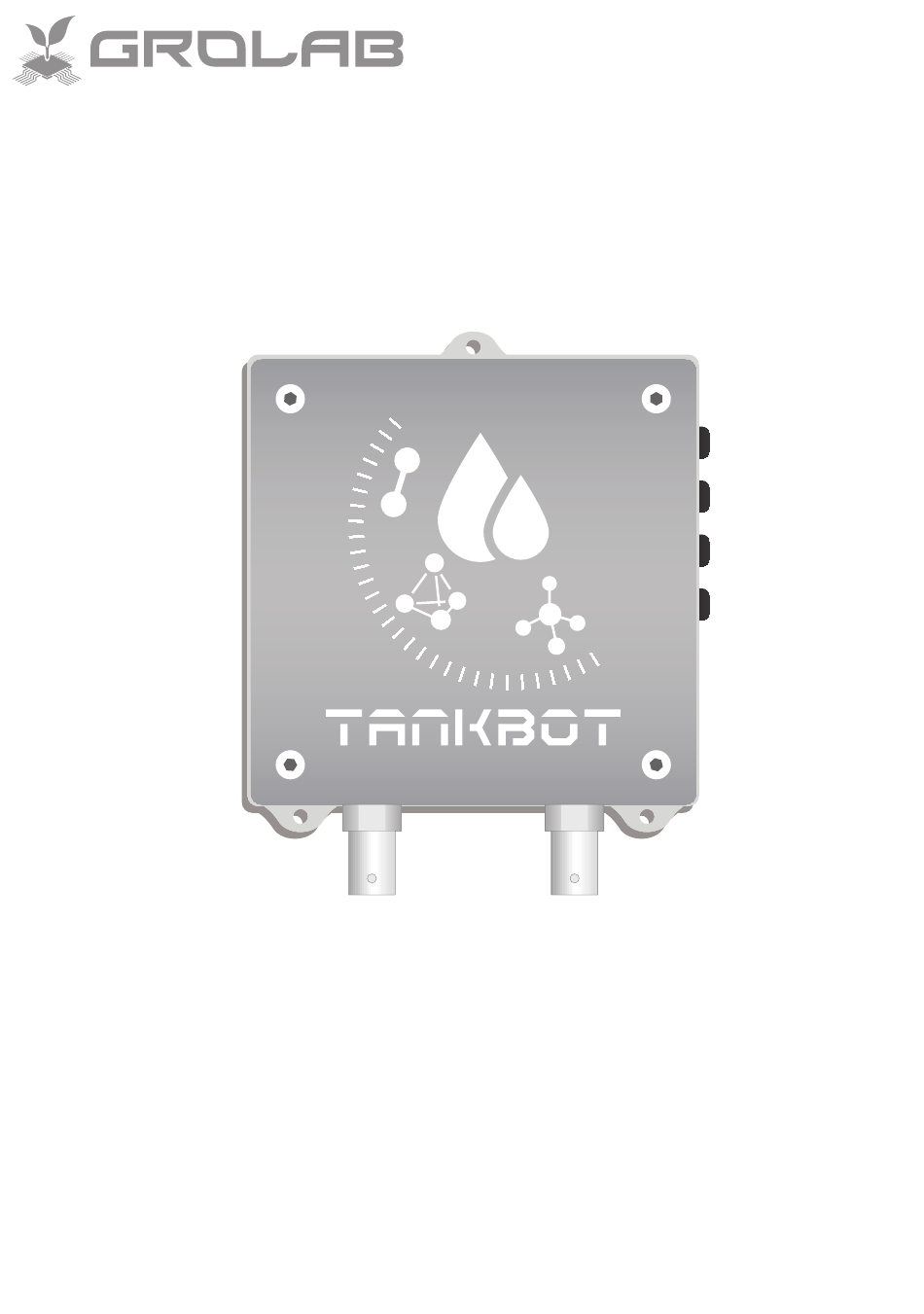

  • Page 1 IMTB2019V01 ® TANKBOT (HW09, HW10) INSTALLATION MANUAL MANUAL L MANUAL DE INSTALACIÓN MANUEL D'INSTALLATION www.opengrow.pt © 2019 Open Grow, LDA. All rights reserved.
  • Page 2 + - + - + - + - + - + - POWER OUT OUTPUTS TEMP POWER RESET 12V~24V...
  • Page 3 CONTROL INPUTS...
  • Page 5 Direct DC power put Controller connection outputs EC sensor outlet Temperature sensor outlet PH sensor outlet RF antenna outlet Module reset bu on Type-B USB outlet (Firmware updates) 12~24V power supply input Sensor connec on inputs Manual switch bu ons Backets for wall-moun ng Status signal LED...
  • Page 6: Installation

    RF communication antenna USB Type-B cable (Firmware updates) Water/soil/air temperature sensor 110~230V / 12~24V power supply 4 Pin quick connector PH probe with BNC connector INSTALLATION Peripherals connec on Screw the communica on antenna (14) into the module port (6). For correct communica- on, turn the antenna in order to posi on it ver cally according to the direc on of the module.
  • Page 7 Place the module on a firm surface, far from flood-prone areas. It is recommended that the module be mounted on a wall with the fixing holes on the upper part. Once the module has been mounted, connect the power cable (17) to the module’s power supply input (9) and the transformer to a 110~ 230V...
  • Page 8 Connect the pH and EC sensors to their respec ve Connect the pH and EC sensors to their respec ve outlets. Insert the p of the plug and turn it outlets. Insert the p of the plug and turn it clockwise to screw it in.
  • Page 9 Connect the water temperature sensor (16) to the Connect the water temperature sensor (16) to the module outlet (4) and place it in the water tank. TEMP If you use any system to heat the water, maintain the sensor away from it. Connect the cables of the peripherals to the sensor and actuator plugs (2/10).
  • Page 10 Connect your actuators (OUTPUTS) in the Connect your actuators (OUTPUTS) in the following order, respec ng the posi on of the following order, respec ng the posi on of the plug: Device 1 Device 2 Twist the bare wire together and trimm it with a cu ng tool so that when it is inserted into the plug it is not exposed and does not cause bad contact with other cables.
  • Page 11 Next, carry out the same procedure on your Next, carry out the same procedure on your sensors (INPUTS). Keep in mind that inver ng the sensors (INPUTS). Keep in mind that inver ng the polarity of the sensor you will also invert the data polarity of the sensor you will also invert the data recorded by TankBot.
  • Page 12 COMUNICATIONS Connec on to GroNode Make sure GroNode is correctly installed and Make sure GroNode is correctly installed and accessible through the GroLab So ware, if accessible through the GroLab So ware, if not follow the instruc ons provided inside not follow the instruc ons provided inside the GroNode’s manual.
  • Page 13 Problems or losses in communica on GroNode was designed to communicate with the other modules through radio frequency signals. The range of ac on is 25 meters (82 feet) indoors and 100 meters (328 feet) outdoors depending on space condi ons. Access the Modules menu on the GroLab So ware and check if your modules are availa- ble.
  • Page 14 If the problem persists, perform a test run by placing the module next to the GroNode and check the module’s communica on status through the so ware. If communica on has been successfully re-established, repeat this opera on at different distances un l you detect the maximum communica on distance.
  • Page 15: Firmware Updates

    UPDATES Firmware Updates Keep in mind that some so ware updates will require upda ng your devices’ Firmware. All updates will provide crucial improve- ments, ensuring your system’s performance. Connect the type-B USB cable (15) to your device’s USB outlet (8) and follow the instruc- ons indicated in the GroLab So ware.
  • Page 16: Safety Instructions

    - unplug it immediately and contact an unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or the Open Grow support center. •To help avoid the poten al hazard of electric shock, do not connect o •To help avoid the poten al hazard of electric shock, do not connect or...
  • Page 17: Warranty

    Open Grow, LDA, liability is limited to the repair or replacement of any defec ve parts. Do not ship directly to Open Grow, LDA, without first consul ng with us to verify the procedure that should be followed.
  • Page 18 Max. Output Power (EIRP) 2.4 G 100 mW 2.4 - 2.4835 GHz Open Grow, LDA, reserves the right to update and/or modify the content of its products at any me without prior warning. Check out our Terms & Condi ons at www.opengrow.pt.
  • Page 19 NOTES...
  • Page 20 Open Grow, LDA. Les spécifica ons sont suje es à changement sans préavis. GroLab est une marque déposée de Open Grow, LDA. Les autres marques et noms de produits sont des marques commerciales ou des marques déposées de leurs propriétaires respec fs.
