SIOX TELEFRANG R40 Series Manual

Modem expander
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
TELEFRANG AB

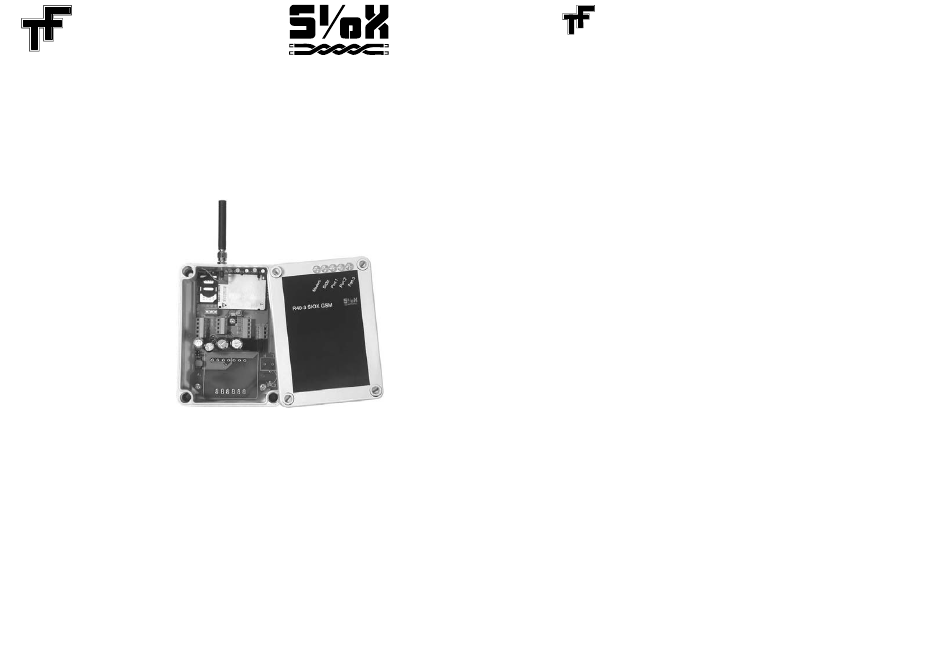

SIOX Modem Expander
General Description
R40 is an interface unit be-
tween a GSM modem and
several serial devices using
RS232, RS485 and a SIOX
bus. It is powered from mains
or a DC supply, 10..48 V.
In addition, it includes 2 ana-
log inputs which also may be
used for alarms etc. Its en-
hanced PLC programmability
permits it to work standalone,
as a protocol converter or as
the multiplexer for a modem.
Versions
: R40-3, 12V powered SIOX Modem Expander.
Order number: 6R40-3
R40-4, Mains powered SIOX Modem Expander.
Order number: 6R40-4
R40-5, 24V powered SIOX Modem Expander with power Relay.
Order number: 6R40-5
R40man.wpd/090513/TF
R40
R40 MODEM EXPANDER MODULE p 2
Contents
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation and Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SIOX Address Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
RS485 Soft Handshaking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Ports' Multiplexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Modem-to-SIOX LINK Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Modem-to-Serial LINK Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SIOX Text-to-Serial LINK Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Digital/Analog Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SIOX Message Transfer for R40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Parameter Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TELEFRANG R40 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SIOX TELEFRANG R40 Series

  • Page 1: Table Of Contents

    SIOX Address Setup ........

  • Page 2: Power Supply

    PLC program to “Sx”. The SIOX bus will then output up to 20mA at 17 - 30 V for DC supplies entered. Unless otherwise requested, the module is preset at the factory to from 10 - 50 V.

  • Page 3: Siox Address Setup

    When using the SIOX bus, the R40 can be used as a Master, calling other units on the SIOX bus, or as a Slave, capable of setting up or answering to a GSM call and linking to the bus after connection. As a Slave, R40 must have a specified address, which is set in the internal EEPROM in the module.

  • Page 4: Modem

    Another LINK flag connects the serial buffers with the modem buffers. In- over the SIOX bus in R40. In this way, an external station on the SIOX bus can dependent of the serial speed and format, the combination buffers 256 bytes send texts to the TC65 modem and collect answers from the modem.

  • Page 5: Digital/Analog Inputs

    Data Carrier Detect, during 20 seconds, R40 looks for the fixed code “SIOX” and a digit from 0 to 3 to select the corresponding port. If found, Example single data communication when R40's address is 0 / 9: a virtual output Q1 is cleared and an input I1 is activated in parameter 10 / .

  • Page 6: Parameter Setup

    Request To Send submitted by the modem when it can collect which otherwise might empty the Modem Receive Buffer. buffered characters. x3xx- SIOX Transmission Speed 3 - 9 = 300 - 19200 bits/s. 1xxx Clear To Send signals to the modem that the buffer is available.
  • Page 7 RS485 Bit Rate set-up: 2400-19200 or default 4800. xxII DI Register for PLC help bits and digital inputs. Bit 0, called I1, is set when modem text matches the SIOX letters and Q1 is cleared. Hxxx RS232 Hardware Status. 2=RTS; 1=CTS.
  • Page 8 3A-3F -xx63 0 / 0 / 0 / 0 / - Real Time Clock seconds counter. Running a PLC DATE Communication Parameter Pairs for SIOX Spy or PLC use. 40 / -4F -FFFF instruction changes it to a minutes+seconds counter.

  • Page 9: Safety Precautions

    Internal 24 V Consumption Before any service of the unit is undertaken, the disconnect devices must SIOX Bus Current be operated to disconnect power to the unit. All cables must be entered via cable glands that are adequately tightened to Analog Input Level (version dependant) prohibit the cords from being pushed into/pulled out of the unit.

This manual is also suitable for:

Telefrang r40-3Telefrang r40-4Telefrang r40-5
