Quam SYSTEM 12 Series Manual

GENERAL DESCRIPTION

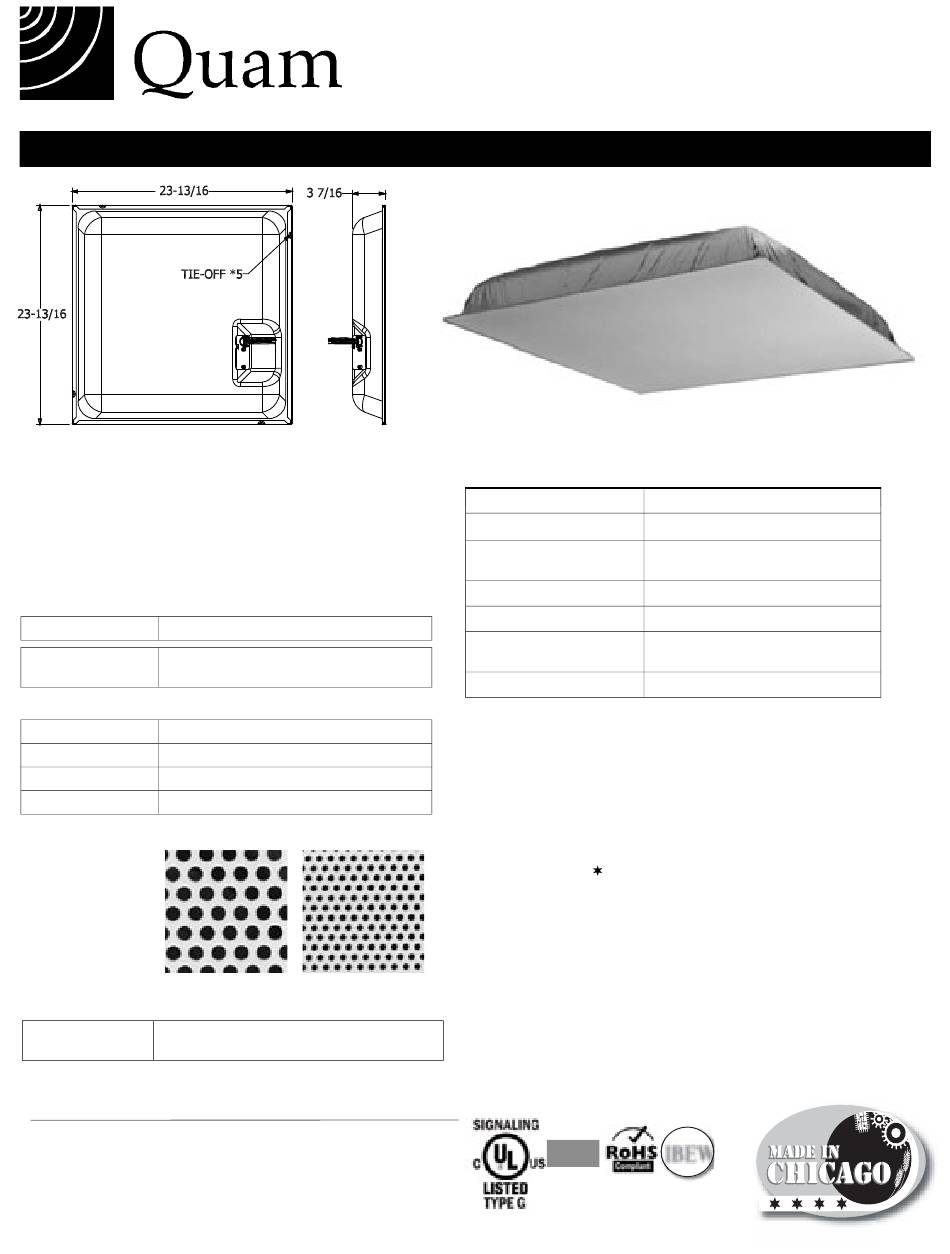

The SYSTEM 12 Series is a complete shallow depth, lightweight
loudspeaker assembly with an 8" O.D. loudspeaker with concentric
mount hard fi ber HF cone, multi-tap transformer, perforated steel
baffl e and integral molded 1,411 CID fi ber enclosure. Cable clamp is
included; fi ve (5) seismic tie-off points. No assembly required.
Grille fi nish: Baked epoxy hybrid

SYSTEM COMPONENTS

Loudspeaker 8C5PAX
Transformer 25V/70V 5W-5 tap color coded leads
(5W, 2.5W, 1.25W, 0.63W, 0.31W)

MODELS

GRILLE OPTIONS

SYSTEM 12 Standard Perf White
SYSTEM 12/B Standard Perf Black
SYSTEM 12/MP Micro-Perf White*
SYSTEM 12/MP/B Micro-Perf Black*
Standard Perf

ACCESSORY

Kit #112 One 24" "T"-bar, white. Use with 2 'x 2' Tile
Replacement Loudspeaker in a 2' x 4' ceiling tile
QUAM-NICHOLS COMPANY
234 East Marquette Road, Chicago IL 60637
Phone: (800) NEED NOW Fax: (888) NEED NOW
(800) 633-3669
E-Mail: NeedNow@QNC.com
© 2012 Quam-Nichols Company, Quam- Nichols reserves the right to make changes and/or improvements to its products at any time and without notice.
Micro- Perf
Shown as 1" square samples
(888) 633-3669
www.QuamSpeakers.com
Complete 2' x 2' class UL Listed Speaker System
Sealed and tuned enclosure, 25V/70V color coded leads
TILE REPLACEMENT LOUDSPEAKER ASSEMBLY

AUDIO SPECIFICATIONS

AUDIO SPECIFICATIONS
Average Sensitivity Average Sensitivity
i
Loudspeaker Power Rating
Calculated Maximum
System Output
Magnet Type
Frequency Response
Nominal Coverage Angle
Audio Connection

INTENDED USE

Indoor environment, mounted parallel to fl oor plane in a 24" wide suspend-
ed ceiling tile grid.
Program Material: Signal tones, voice and music.
UL Listed 1480- (UEAY, UEAY7- Canada)
As a General Signaling device- When installed with supplied
Installation Instructions and requirements of NEC /AHJ.
CITY of CHICAGO A PPROVED
Material and construction permits use where ceiling plenum is part
of the air handling system.
* These products have not been submitted to UL or City of Chicago
Recommended construction sequences, installation instructions and A&E Specifi cations, EASE .GLL /.CFL data fi les are available
in various formats in the QUAM Architects' and Engineers' Resources section on the web at: www.QuamSpeakers.com
.GLL / .CLF
DATA
91H1
SYSTEM 12
92 dB-SPL 1W/1M 92 dB-SPL 1W/1M
12W-RMS EIA 426A Standard
99 dB-SPL 5W/1M
4.8 oz. BeFe Ceramic
65 Hz-17 kHz EIA 426A Standard
100° included angle -6 dB/ 2 kHz
half space
Pre-cut 7" color-coded leads
LU
IBEW
1031
T0104.5-SYS12 12-SE01
