THIS
SHEET APPTIES
TO
MODELS
SERIAL
NO's. I
5
p00
AND
DESCRIPTION
PATENTED -
OTHERS PENDING
HAVING
UP.
LO.HI
CURRENT
coNtlol
xio! rol
PO€8
l€sT
IETER
ADJU!TIEXT
t0e
lcrlt!
aAxo6
MEfEI
ZERO
SET
AOJUSTMIi'
SCREf
JAC(
FOR
tx5uuTt0x
TED INDIqTOT
LIGHT
15
il,
tX
llL EtTtdS
I
INRU!
sE!€crq
gttcH
/
xx08
Pta!5 tEo
auTTd
FOR
rE
DtxG SC LE
r
a
t
c€raR oJUiTrtxr
FOR
IC^LE
NO. 2 AND
3

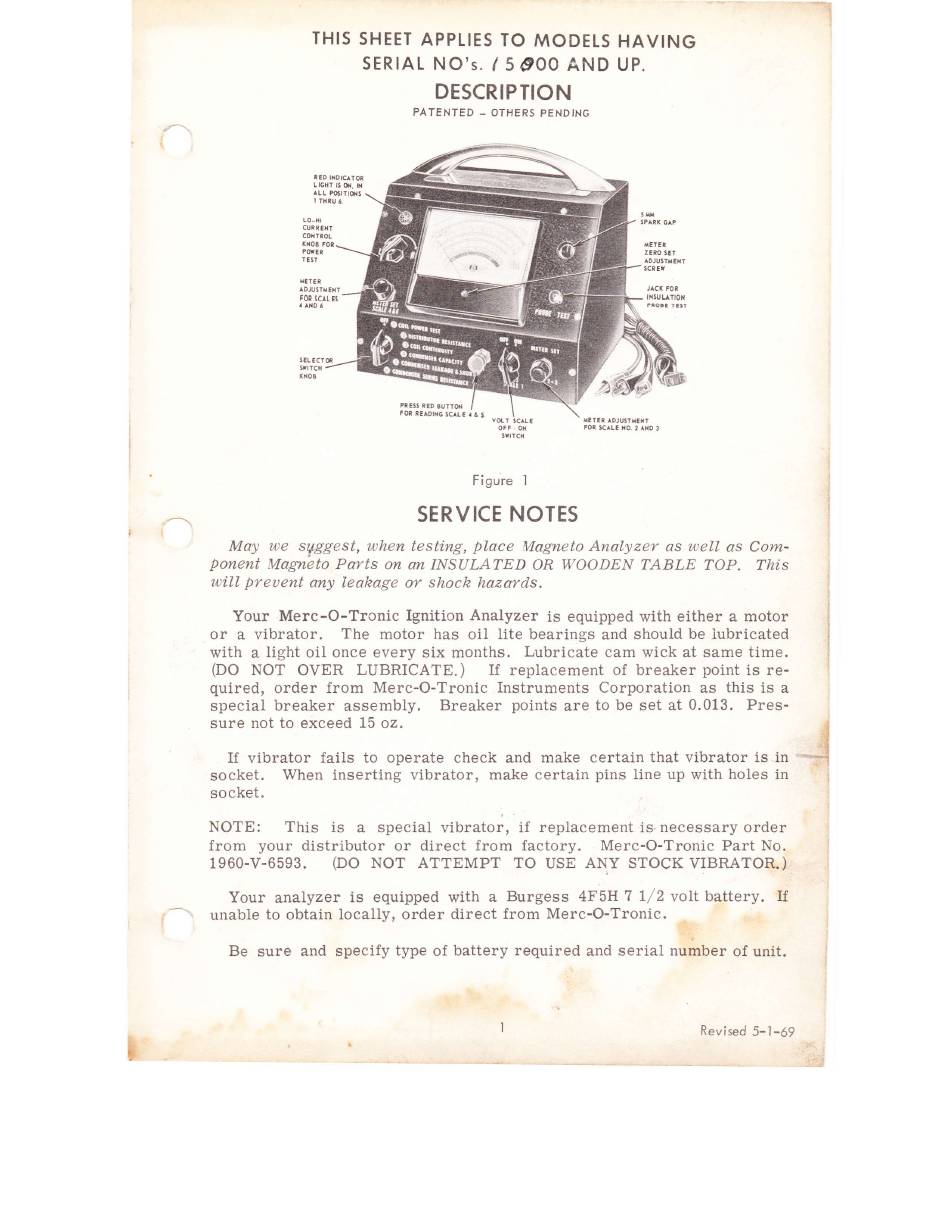

Figure
I
SERVICE NOTES
May we
sqggest, nhen testi,ng,
place
Wagneto
Analyzer
as
uell
as Com-
ponent
Magneto
Pmts
on an INSULATED OR WOODEN TABLE
TOP.
This
will preuent any leakage
or
shock hazards.
Your Merc-O-Tronic Ignition Analyzer is
equipped
with either a motor
or
a
vibrator.
The motor has
oil
lite
bearings and should be lubricated
with
a
light oil
once
every six months. Lubricate
cam
wick at
same
time.
(DO NOT OVER
LUBRICATE.
) If
replacement
of
breaker point
is
re-
quired, order from Merc-O-Tronic Instruments Corporation as this is
a
special breaker assembly. Breaker points are to be set at
0.013.
Pres-
sure
not
to
exceed
15 oz.
If
vibrator fails to
operate check and make certain that vibrator
is
in
socket.
When
inserting vibrator,
make
certain pins line
up
with holes in
socket.
NOTE: This
is a
special vibrator,
if
replacement
is necessary order
from
your distributor
or
direct from
factory.
Merc-O-Tronic Part
No.
1960-V-6593. (DO NOT ATTEMPT
rO
USE
ANy
STOCK VTBRATOR.)
Your analyzer
is
equipped
with
a
Burgess 4F5H7
l/2volt
battery. If
unable
to obtain locally, order direct from Merc-O-Tronic.
Be sure and specify type of battery required
and
serial
number of unit.
Nevtsed J-
l
-6y
