Summary of Contents for Polar Refrigeration CF760-A

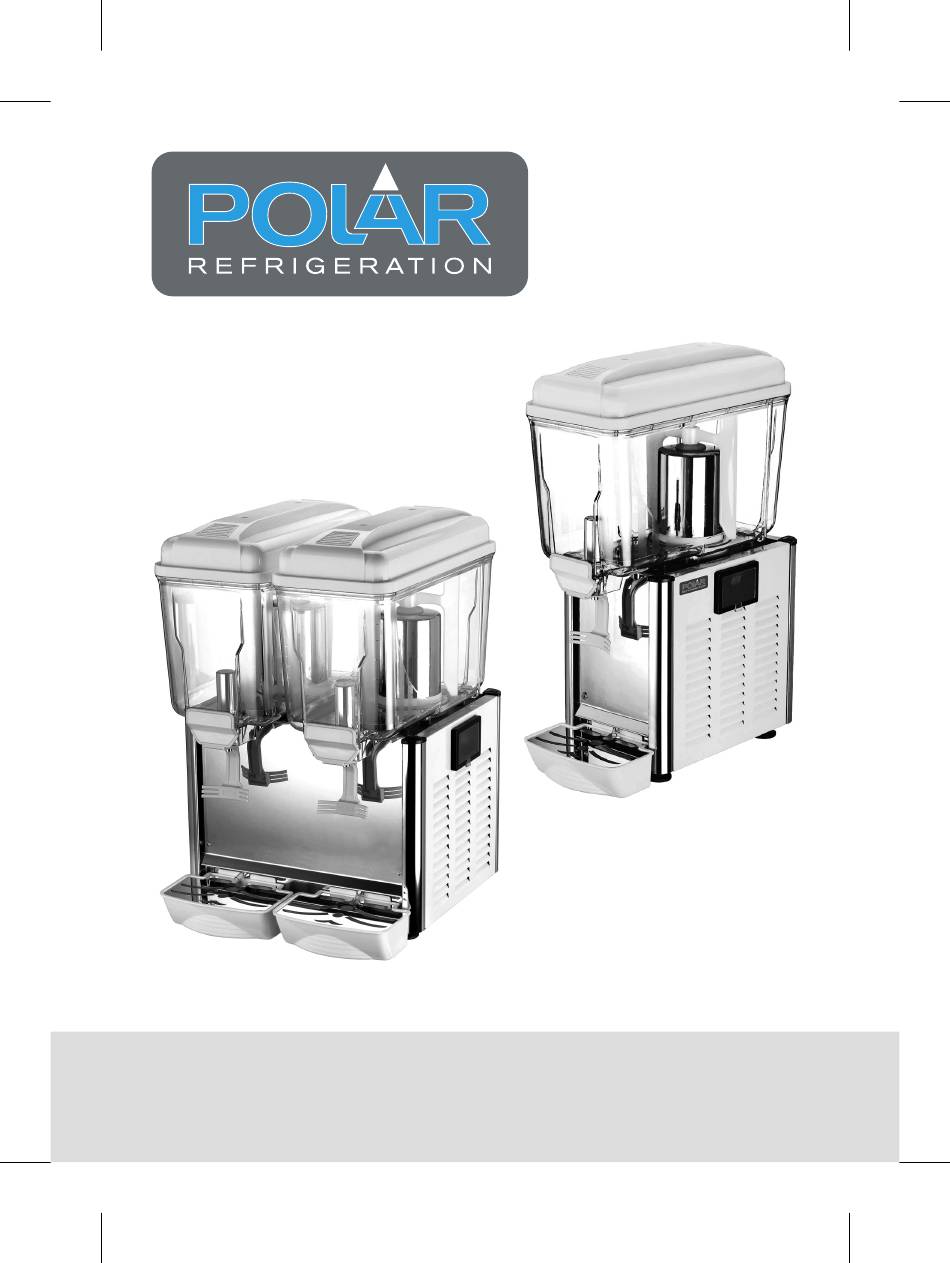

- Page 1 Chilled Drinks Dispenser Instruction manual Model: CF760-A / CF761-A CF760-A_CF761-A_A5_v3_20190822.indb 1 2019/8/22 09:59...
-
Page 2: Safety Tips
Telephone Helpline: 1300225960 Safety Tips • Position on a flat, stable surface. • Install the appliance where it can be overseen by trained personnel. • Always carry, store and handle the appliance in a vertical position. • A service agent/qualified technician should carry out installation and any repairs if required. -
Page 3: Product Description
Product Description CF760-A - Single Chilled Drinks Dispenser CF761-A - Double Chilled Drinks Dispenser Introduction Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your Polar product. -
Page 4: Installation
Telephone Helpline: 1300225960 Installation Note: If the appliance has Tank Hooks been stored or moved in a Front Lever non-vertical position, stand Slot it in an upright position for approximately 12 hours before operation. If in doubt allow to stand. 1. -
Page 5: Operation
Telephone Helpline: 1300225960 Operation 1. Turn on the main switch on the right hand of the unit. The power indicator light (A) illuminates on the controller. Filling 1. Switch Off the dispenser. 2. Remove the lid and pour the liquid into the tank. -
Page 6: Troubleshooting
Cleaning the Condenser Polar recommend the condenser is cleaned at least once a month. Note: The condenser is the black (CF760-A) or silver (CF761-A) metal grid behind the side panel. To clean the condenser: 1. Unscrew the two screws from beneath the Temperature controller side panel. -
Page 7: Technical Specifications
Power Current Capacity Dimensions Weight Model Voltage Tanks Refrigerant (litres) L x W x H mm (kg) CF760-A 220-240V~ 290W 1.9A R290 30g 635 x 220 x 450 50Hz CF761-A 220-240V~ 370W 2.2A R290 60g 635 x 420 x 450... - Page 8 DECLARATION OF CONFORMITY Equipment Type Single and Double Chilled Drinks Dispenser Model CF760-A CF761-A Legislation Electrical Safety Electromagnetic Compatibility Standards IEC 60335.1:2010 +A1:2013 IEC 60335.2.75:2012 +A1:2015 EN55014-1:2017 EN55014-2:2015 EN61000-3-2:2014 EN61000-3-3:2013 Producer Name Polar Producer Address 15 Badgally Road, Campbelltown, NSW 2560 I, the undersigned, hereby declare that the equipment specified above conforms to the above Legislation and Standard(s).
- Page 9 CF760-A_CF761-A_A5_v3_20190822.indb 9 2019/8/22 09:59...
- Page 10 CF760-A_CF761-A_A5_v3_20190822.indb 10 2019/8/22 09:59...
- Page 11 CF760-A_CF761-A_A5_v3_20190822.indb 11 2019/8/22 09:59...
- Page 12 http://www.polar-refrigerator.com/ CF760-A_CF761-A_A5_v3_20190822 CF760-A_CF761-A_A5_v3_20190822.indb 12 2019/8/22 09:59...
